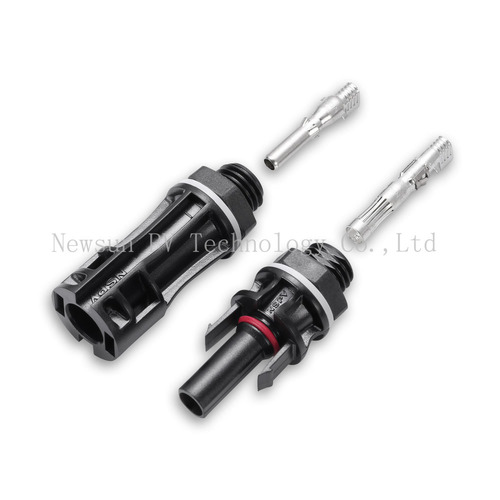

1500V Panel Connector

1500V Panel Connector
1500V Panel Connector
Send Inquiry
Product Code : 4PN/P-15
Brand Name : NSPV
Product Description
Insulation material:PPE

Rated current:30A

Rated voltage:1500VDC

Test Voltage:8KV(50Hz,Imin)

Contact resistance:<5mohm

Contact material:Copper,Tin plated

Degree of protection:IP2X/IP68

Overvoltage category/Pollution degree:CATIII/2

Safety degree:II

Flame class:UL94-V0

Insertion force/Withdrawal force:<=50N/>=50N

Ambient temperature range:-40℃...+85℃(IEC)

Nut cap lockign force:0.8-1.0Nm

Upper limiting temperature:110℃

Trade Information
  • FOB Port
  • EXW
  • Payment Terms
  • Others, Paypal, Western Union
  • Supply Ability
  • 2500000 Per Year
  • Delivery Time
  • 3-25working days Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • standard
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • TUV
