NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness

Product Details:

Product Type Other
Material PPE/TPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1000/1500 Volt (V)
Color Black
Share Your Product:

Get a Price/Quote

Request To Call Back Send Inquiry

NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness Price And Quantity

Minimum Order Quantity 100 Set

NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness Product Specifications

Material PPE/TPE/PA(Insulation material)
Output Voltage 1000/1500 Volt (V)
Color Black
Product Type Other
Operating Temperature -40-+85 Celsius (oC)

NSPV Solar Panel Parallel Connectors 6 To 1 Type Y Connector Solar Wiring Harness PV Cable Harness Trade Information

FOB Port EXW
Supply Ability 10000 Set Per Month
Delivery Time Days
Sample Available Yes
Packaging Details Standard packing
Main Domestic Market All India

Product Description

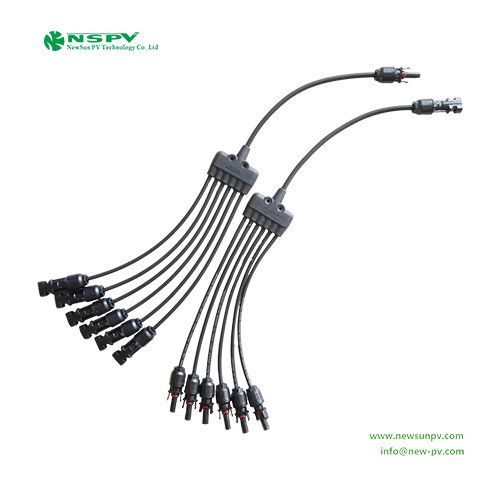

Solar panel parallel connectors 6 to 1 type from NSPV y connector solar

Insulation material: PPE/TPE/PA; Safety degree: II;
Rated voltage:1500VDC;Flame class:UL94-V0;
Rated Impulse voltage:16KV;Installation type:Outdoor,UV resistant(F1);
Test voltage:8kV(50Hz,1min);Ambient temperature range:-40-+85(IEC);
Contact resistance:less than 0.25 mohm;Suitable cable cross sections:1.5-10mm2/16-8AWG;
Contact material:Copper,Tin plated;Connecting system:Crimp connection;
Degree of protection:IP68(1m,1H);Upper limiting temperature:110(IEC);
Overvoltage category/Pollution degree:CATIII/2;Regulatory approval:TUV/CE(IEC62852:2014).
