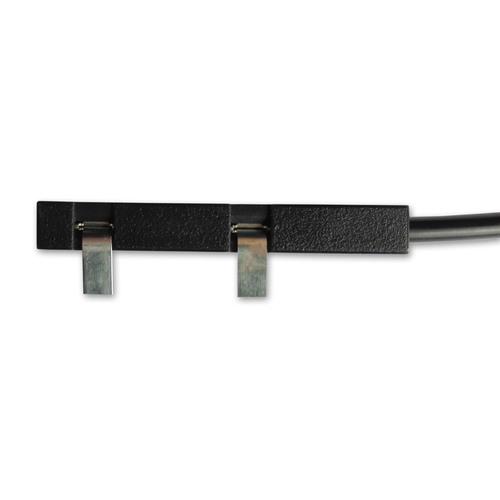

1500V Panel Connector

1500V Panel Connector
1500V Panel Connector
Send Inquiry
Product Code : 4PN/P-15
Product Description
The BIPV Product Description


Box Material:PPE/TPV

Rated current:10A(Diode 15A)

Rated voltage:1000V(IEC)

Test voltage:6KV(50Hz,Imin)

Typical contact resistance:<=5mohm

Contact material:Copper,Tin plated

Degree of protection:IP67(in potting)

Safety degree:II

Flame class:UL94-V0

Ambient temperature range:-40℃...+85℃(IEC)

Suitable cable cross sections:2.5/4.0mm2

Diode Number:Each 1PC

Upper limiting temperature:110℃(IEC)

Range of cable gland(mm):O.D.:5.5

Ribbons size(mm):6(W)*0.2-0.4(T)

Connection of bus ribbons:Clamp
