Solar Junction Box

We offer a range of Solar Junction Box that are widely used in solar power generation systems to connect various solar panels to each other and to a centralized power management unit. The junction boxes connect various photo voltaic strings to each other in parallel configuration. Precision engineered by experts using ultra-modern manufacturing equipment, the junction boxes can be tailored as per the specific requirements of each project. By making use of the highest grade materials and components, it is ensured that customers receive products that provide unmatched performance and value for money.

Junction boxes are available in various sizes as per the requirement of clients.
The boxes are designed to protect sensitive components of solar power generation systems.
The boxes are highly durable and is not affected by changing weather conditions.
The junction boxes are offered at reasonable prices.

(PV-NEHP01)

Waterproof Solar Panel Junction Box With Diode TUV PV Panel Junction Box For Solar Connection

Price: 8.5 USD ($)/Set

1. Rated current: 30A(With diode); 2. Rated voltage: 1500VDC; 3. Degree of protection: IP68(in potting).

Send Inquiry

Request To Call Back

(1500VDC BIPV Junction Box)

IP67 Waterproof Solar BIPV Junction Box Negative Type With TUV Certificate BIPV Solar Panel Junction Box

Price: 8.5 USD ($)/Piece

BIPV Junction Box 1500VDC 1. Rated current: 14A(Diode 20A);18A(Diode 25A); 2. Rated voltage: 1500V(IEC); 3. IP67 Waterproof(In potting); 4. Safety degree: II.

Send Inquiry

Request To Call Back

(1500VDC BIPV junction box)

IP67 Waterproof TUV Solar BIPV Junction Box Positive Type Solar Panels Junction Box With Diode

Price: 8.5 USD ($)/Piece

BIPV Junction Box 1500VDC 1. Rated current: 14A(Diode 20A);18A(Diode 25A); 2. Rated voltage: 1500V(IEC); 3. IP67 Waterproof(In potting); 4. Safety degree: II.

Send Inquiry

Request To Call Back

(PV-NEHP01)

Split Solar Junction Box PV Junction Box For Solar Panel Wiring Protection

Junction Box; 1500V DC 1. Rated Voltage: 1500V DC 2. Rated Current: 22A(With diode 30A); 35A(With diode 50A); 3. IP68 Waterproof(In potting); 4. UL91-V0 High Temperature Resistance.

Send Inquiry

Request To Call Back

(PV-BN082TA-2)

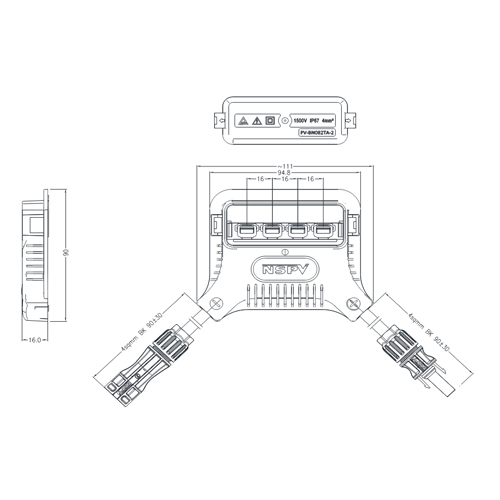

4 Rail Junction Box With Certificate Solar Panel Junction Box With Diode 1500VDC

1500V DC 4 Rails 4 Junction Box 1. Rated current: 14A(Diode 25A); 2. Rated voltage: 1500VDC; 3. IP67 Waterproof(In potting); 4. UL94-V0 High Temperature Resistance.

Send Inquiry

Request To Call Back

(MLJ-01)

Mini Solar Panel Junction Box IP67 Waterproof With Mini Solar Cable Connectors For Solar Panel Connections

Price: 2.21 USD ($)/Piece

1000V Mini solar panel junction box 1. Rated current: 20A; 2. Rated voltage: 1000V(IEC); 3. IP67 Waterproof; 4. UL94-V0 High Temperature Resistance; 5. Suitable Cable Cross Sections: 2.1/4.0mm².

Send Inquiry

Request To Call Back

(BIPV junction box)

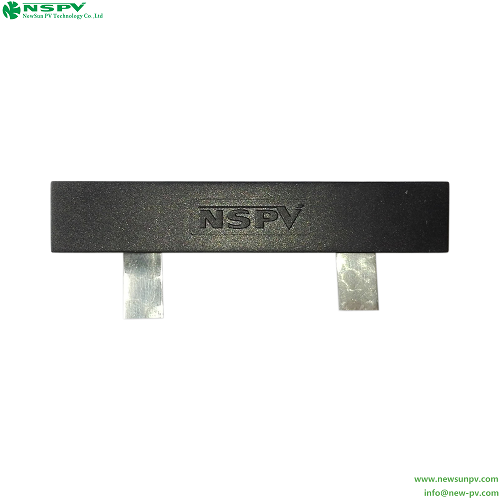

NSPV 1500VDC BIPV Junction Box Middle Type Solar Panel Junction Box For BIPV System

Price: 8.5 USD ($)/Piece

1500v BIPV Junction Box 1. Rated current: 14A(Diode 20A);18A(Diode 25A); 2. Rated voltage: 1500V(IEC); 3. IP67 Waterproof(In potting); 4. Flame class: UL94-V0.

Send Inquiry

Request To Call Back

(1500VDC BIPV junction box)

Waterproof BIPV Junction Box Solar Panel Junction Box With Diode For Solar Panel Connector

Price: 8.5 USD ($)/Piece

BIPV Junction Box 1500VDC 1. Rated current: 14A(Diode 20A);18A(Diode 25A); 2. Rated voltage: 1500V(IEC); 3. IP67 Waterproof(In potting); 4. Safety degree: II; 5. Box Material: PPE/TPV.

Send Inquiry

Request To Call Back
