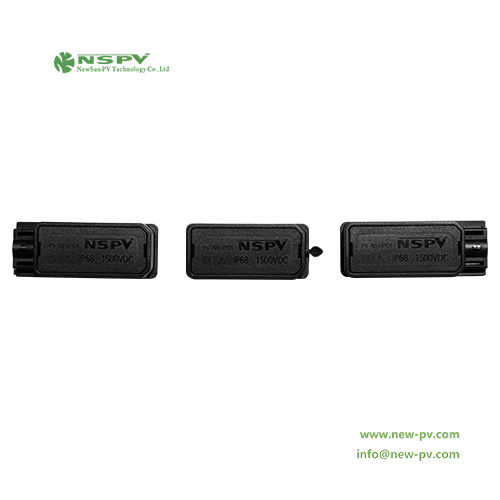

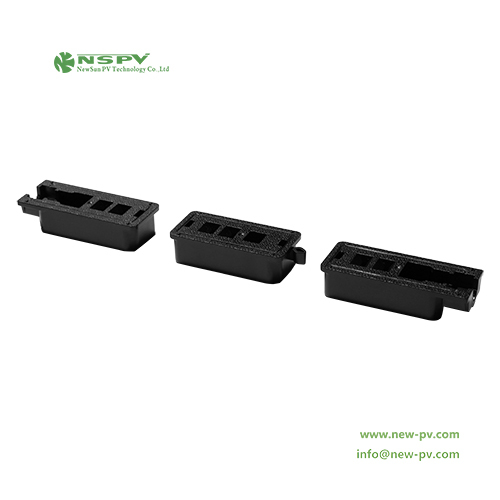

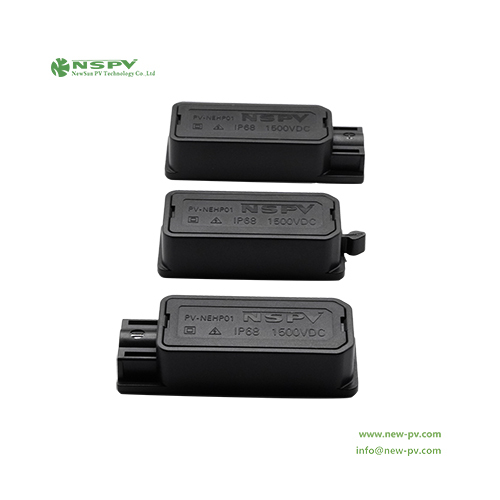

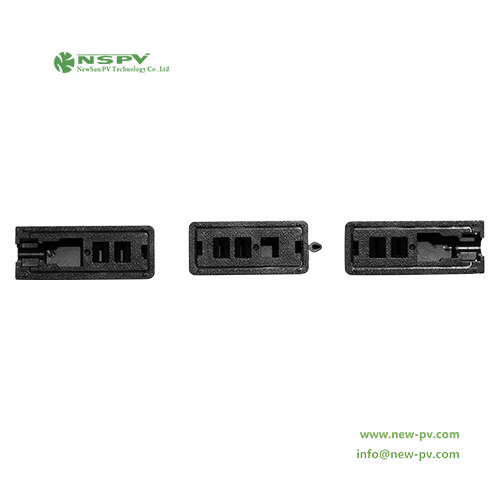

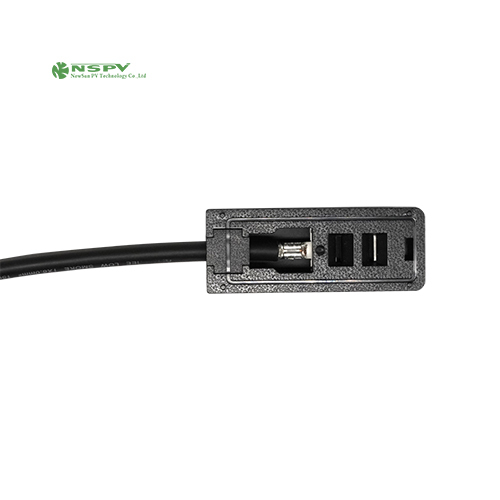

Waterproof Solar Panel Junction Box With Diode TUV Solar Module Junction Box For Solar Panel Connection

Waterproof Solar Panel Junction Box With Diode TUV Solar Module Junction Box For Solar Panel Connection

8.5 USD ($)/Set

Get a Price/Quote

Product Details:

Features Good Quality
Switch Mode Manual Switch
Color Black
Warranty 1 Year
Application Industrial, Commercial
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Waterproof Solar Panel Junction Box With Diode TUV Solar Module Junction Box For Solar Panel Connection Price And Quantity

Price 8.5 USD ($)/Set
Minimum Order Quantity 100 Set

Waterproof Solar Panel Junction Box With Diode TUV Solar Module Junction Box For Solar Panel Connection Product Specifications

Warranty 1 Year
Switch Mode Manual Switch
Features Good Quality
Application Industrial, Commercial
Color Black

Waterproof Solar Panel Junction Box With Diode TUV Solar Module Junction Box For Solar Panel Connection Trade Information

Supply Ability 10000 Set Per Day
Delivery Time 20 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard Packing
Main Domestic Market All India
Certifications TUV

Product Description

The Waterproof Solar Panel Junction Box with Diode is designed for reliable and efficient solar panel connections in industrial and commercial applications. Crafted from durable PPE/PA material, this junction box is flame-retardant with an UL94-V0 rating, ensuring maximum safety and performance. It features a degree of protection rated at IP68 (in potting) to withstand harsh weather conditions and offer optimal waterproof reliability. With a rated voltage of 1500VDC and a current rating of 30A (with diode), this junction box supports high-capacity energy transfer while ensuring durability. The copper contact material, tin-plated for longevity, enhances conductivity and minimizes contact resistance to just 0.25m. Suitable for cable cross-sections of 4mm (12AWG) and ribbons sizes up to 8mm width, it enables easy integration with various solar panels. Designed for manual operation and tested with a voltage resistance of 8kV, it ensures superior performance across an ambient temperature range of -40C to +85C. The box provides an additional safety degree rated II and incorporates soldering connections for bus ribbons. Perfect for demanding solar applications, this product guarantees high quality and performance, backed by a 1-year warranty.

Specifications and Advantages

BOX Material	PPE/PA	Flame Class	UL94-V0
Rated current	30A(With diode)	Ambient temperature range	-40+85(IEC)
Rated voltage	1500VDC	Suitable cable cross sections	4mm2 (12AWG)
Test voltage	8kV(50Hz,Imin)	Diode Number	Each 1PC
Typical contact resistance	0.25m	Upper limiting temperature	110(IEC)
Contact material	Copper, tin plated	Range of cable gland(mm)	O.D.: 6.0
Degree of protection	IP68(in potting)	Ribbons size(mm)	Max.8(W)*0.2-0.5(T)
Safety degree	II	Connection of bus ribbons	Soldering

FAQs of Waterproof Solar Panel Junction Box With Diode TUV Solar Module Junction Box For Solar Panel Connection:

Q: What material is the junction box made of?

A: The junction box is made of durable PPE/PA material, ensuring high strength and longevity.

Q: What is the degree of protection offered by this junction box?

A: The junction box provides IP68 protection (in potting), making it highly resistant to water and environmental elements.

Q: What is the rated voltage and current capacity?

A: The junction box operates at a rated voltage of 1500VDC and supports a rated current of 30A (with diode).

Q: What temperature range can this product handle?

A: It operates efficiently in an ambient temperature range of -40C to +85C and can withstand upper limiting temperatures of 110C.

Q: How is the connection of bus ribbons managed?

A: Bus ribbons are connected via soldering, ensuring secure and reliable connections for solar panel installations.
