NSPV Insulation Piercing Connectors For ab Cable IPC Connectors

NSPV Insulation Piercing Connectors For ab Cable IPC Connectors

Product Details:

  • Product Type Other
  • Material PA+CU(Insulation material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Output Voltage 1500VDC/1000VAC Volt (V)
  • Color Black
X

NSPV Insulation Piercing Connectors For ab Cable IPC Connectors Price And Quantity

  • 100 Piece

NSPV Insulation Piercing Connectors For ab Cable IPC Connectors Product Specifications

  • PA+CU(Insulation material)
  • Black
  • Other
  • -40-+85 Celsius (oC)
  • 1500VDC/1000VAC Volt (V)

NSPV Insulation Piercing Connectors For ab Cable IPC Connectors Trade Information

  • EXW
  • 10000 Piece Per Month
  • 7 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • Patent for utility models

Product Description

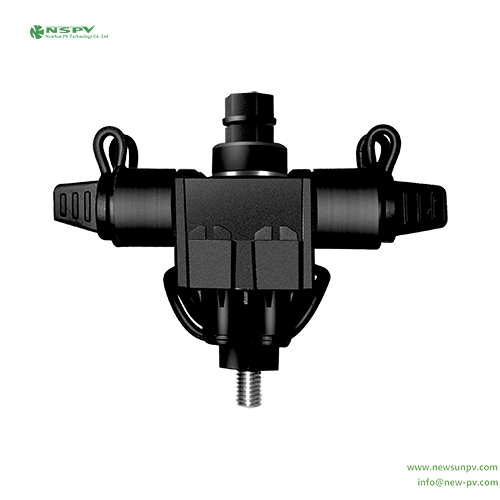

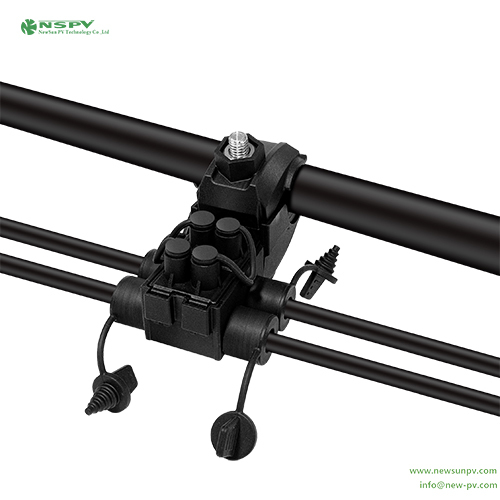

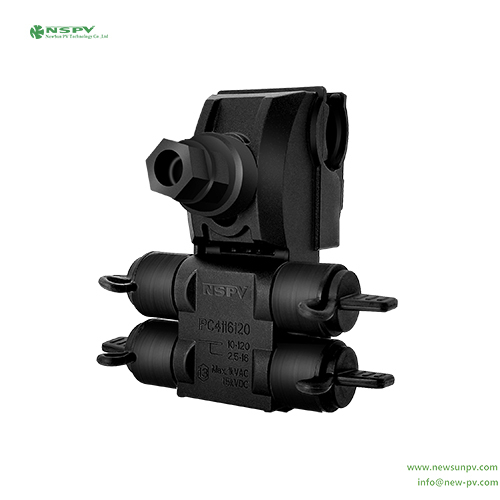

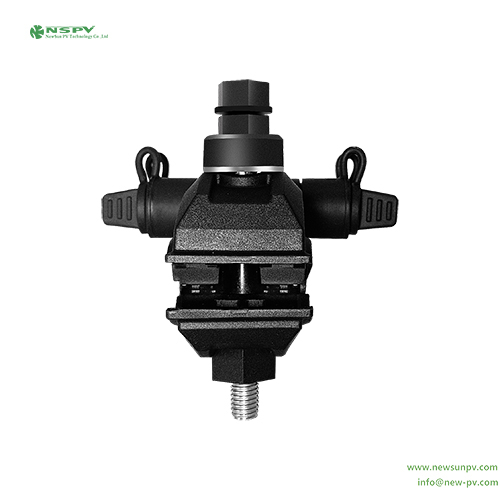

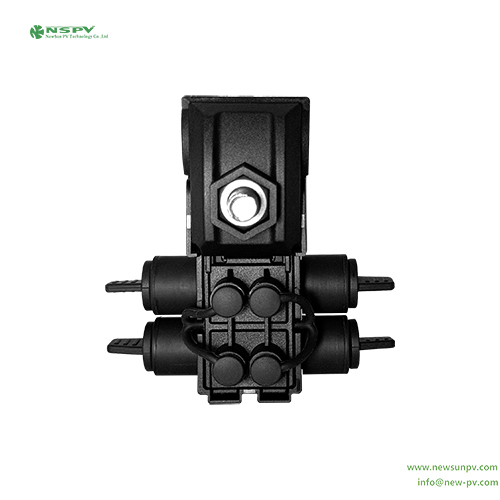

4in1 Piercing connector(IPC4116120)

Product Specifications

  • Insulation material:PA+CU
  • Safety degree:II
  • Rated voltage:1500VDC/1000VAC
  • Flame class:UL94-V0
  • Suitable cable cross sections:Tap:2.5-16mm2 (OD Max.9.0) / Main:10-120mm2 (Al/CU)
  • Installation type:Outdoor,UV resistant(F1)
  • Contact resistance:<=5 m
  • Ambient temperature range:-40...+85(IEC)
  • Contact material:Copper,Tin plated
  • Connecting system:Lock connection
  • Degree of protection:IP67
  • Nut cap locking force:>12Nm
  • Overvoltage category/Pollution degree:CATIII/2
  • Upper limiting temperature:110(IEC)
