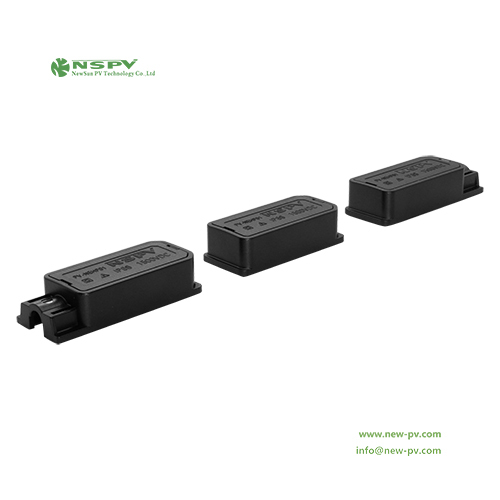

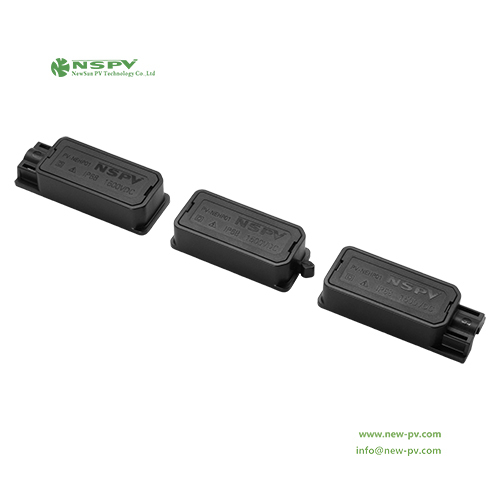

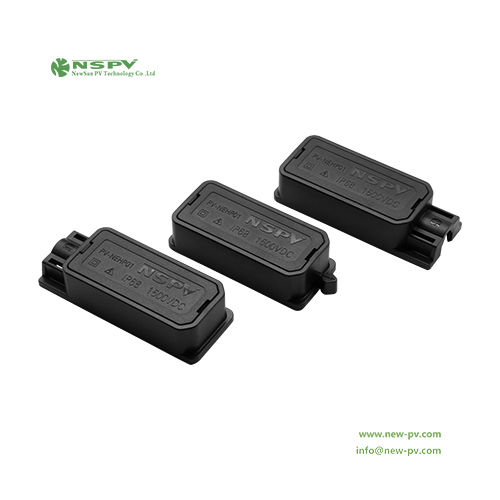

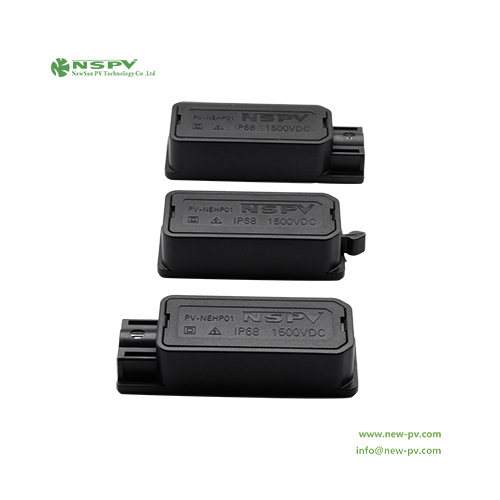

Split Solar Junction Box PV Junction Box Solar Module Junction Box For Solar Panel Wiring Protection

Split Solar Junction Box PV Junction Box Solar Module Junction Box For Solar Panel Wiring Protection

Product Details:

  • Material PPE/PA(Box material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Output Voltage 1500 Volt (V)
  • Color Black
X

Split Solar Junction Box PV Junction Box Solar Module Junction Box For Solar Panel Wiring Protection Price And Quantity

  • 200 Piece

Split Solar Junction Box PV Junction Box Solar Module Junction Box For Solar Panel Wiring Protection Product Specifications

  • Black
  • PPE/PA(Box material)
  • 1500 Volt (V)
  • -40-+85 Celsius (oC)

Split Solar Junction Box PV Junction Box Solar Module Junction Box For Solar Panel Wiring Protection Trade Information

  • EXW
  • 1000 Piece Per Day
  • Yes
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India

Product Description

PV-NEHP01 Solar Junction Box Product Specifications:
  • Certificate TUV
    BOX Material PPE/PA
    Overall Dimension 65*25*15mm*2pcs+56*25*15mm-1pcs
    Rated Voltage 1500V DC
    Rated Current 22A(With diode 30A)
    35A(With diode 50A)
    Working Temperature Range -40ïï+85ï
    Safety Class Class II
    Degree of protection IP68(In potting)
    Section area of cable 1*4mmï
    Diameter of cable 6.0mm
    Connection Method of Ribbon Soldering
    Contact Material Copper ,Tin Plated
    Optional Connector MC 4/3 compatible

  • Products Description and InstallationPrecautions

  • ïï The junction box uses the PPE/PA, High rigidity, high temperature resistance chemical resistance, wear resistance and pollution resistance
  • ïï The junction box uses the glue to seal, the waterproof effect is better, the fitting interior heat is better.
  • ïï This junction box is a three-part design, and the cable adopts horizontal outlet mode, which can reduce the cable bending stress, save the cable usage, reduce the power loss of PV module, and divide the influence of "hot spot effect" into three parts. The influence of high temperature on photovoltaic modules is reduced.

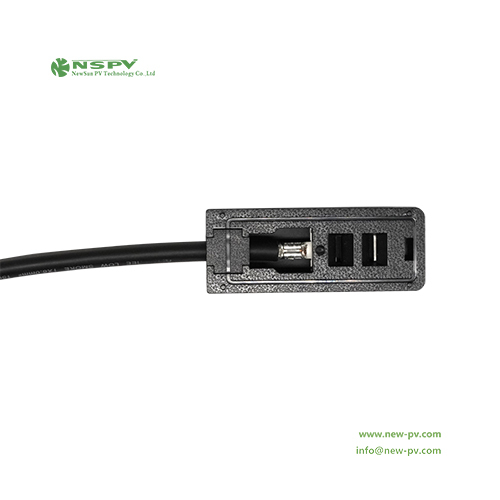

  • ïï The diode and the terminal adopt an integrated packaging mode, and the terminal uses red copper
  • tinned material, and the terminal is thick. This structure design can effectively reduce the temperature on the surface of the diode, ensure the high power and high current output of the PV module, reduce the influence of temperature on the power, and provide a good solution for the high power photovoltaic module.
  • ïï Water resistant to IP68, can be fully qualified for all kinds of snowhumidity and other harsh environments, easy to install, long life, maintenance-free, allowing you to use more peace of mind.
