NSPV 1500VDC BIPV Junction Box Middle Type Solar Panel Junction Box For BIPV Solar Module

NSPV 1500VDC BIPV Junction Box Middle Type Solar Panel Junction Box For BIPV Solar Module

8.5 USD ($)/Piece

Get a Price/Quote

Product Details:

Material PPE/TPV
Operating Temperature -40-+85 Celsius (oC)
Max Voltage 1500 Volt (V)
Max System Voltage 1500 Volt (V)
Output Voltage 1500 Volt (V)
Color Black
Warranty 2
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

NSPV 1500VDC BIPV Junction Box Middle Type Solar Panel Junction Box For BIPV Solar Module Price And Quantity

Price 8.5 USD ($)/Piece
Minimum Order Quantity 100 Piece

NSPV 1500VDC BIPV Junction Box Middle Type Solar Panel Junction Box For BIPV Solar Module Product Specifications

Output Voltage 1500 Volt (V)
Max System Voltage 1500 Volt (V)
Color Black
Material PPE/TPV
Operating Temperature -40-+85 Celsius (oC)
Max Voltage 1500 Volt (V)
Warranty 2

NSPV 1500VDC BIPV Junction Box Middle Type Solar Panel Junction Box For BIPV Solar Module Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Day
Delivery Time 15 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy,
Packaging Details Standard packing
Main Domestic Market All India,
Certifications CE,TUV

Product Description

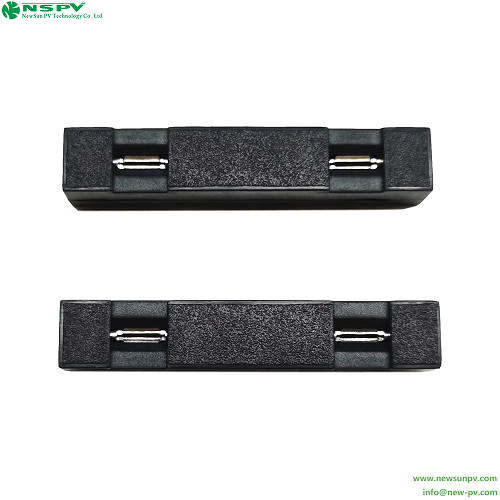

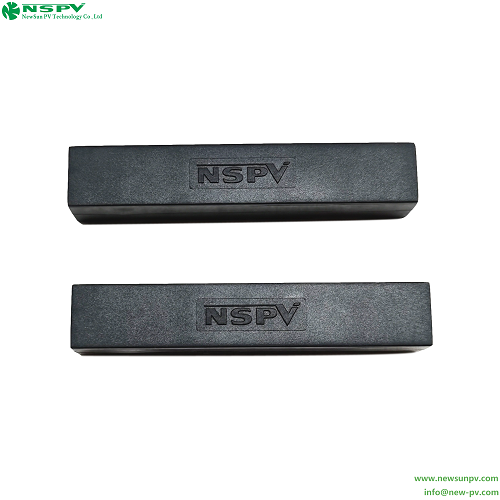

1500v BIPV Junction Box

Box Material: PPE/TPV
Rated current: 14A(Diode 20A);18A(Diode 25A)
Rated voltage: 1500V(IEC)
Test voltage: 8KV(50Hz,Imin)
Typical contact resistance: 5mohm
Contact material:Copper,Tin plated
Degree of protection: IP67(in potting)
Safety degree:II
Flame class: UL94-V0
Ambient temperature range:-40...+85(IEC)
Suitable cable cross sections:4.0mm

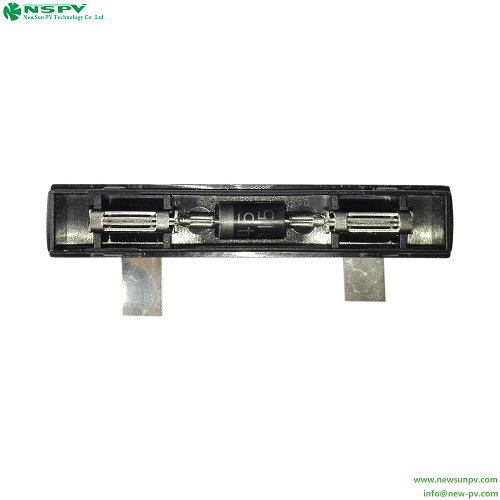

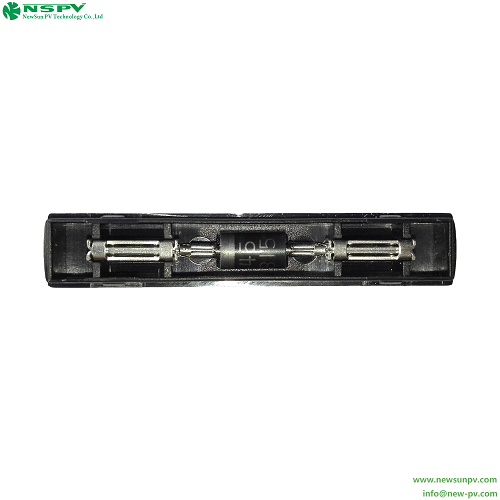

Diode Number:Each 1PC
Upper limiting temperature: 110(IEC)
Range of cable gland(mm):O.D.:5.5
Ribbons size(mm):6(W)*0.2-0.4(T)
Connection of bus ribbons:Clamp
