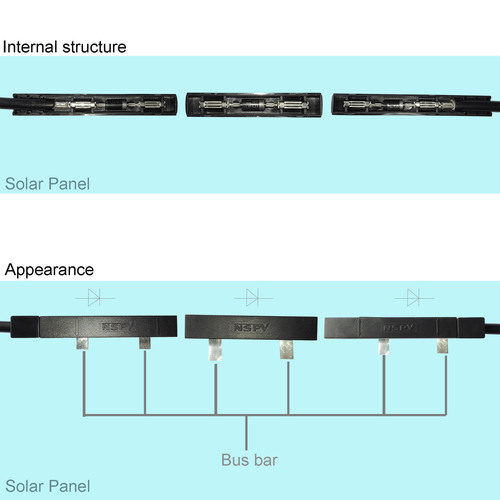

BIPV Junction Box

BIPV Junction Box
BIPV Junction Box
Send Inquiry
Product Code : BIPV
Price And Quantity
  • Minimum Order Quantity
  • 1000
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 8.00 - 9.00 USD ($)
Product Description
The BIPV Product Description


Box Material:PPE/TPV

Rated current:10A(Diode 15A)

Rated voltage:1000V(IEC)

Test voltage:6KV(50Hz,Imin)

Typical contact resistance:<=5mohm

Contact material:Copper,Tin plated

Degree of protection:IP67(in potting)

Safety degree:II

Flame class:UL94-V0

Ambient temperature range:-40℃...+85℃(IEC)

Suitable cable cross sections:2.5/4.0mm2

Diode Number:Each 1PC

Upper limiting temperature:110℃(IEC)

Range of cable gland(mm):O.D.:5.5

Ribbons size(mm):6(W)*0.2-0.4(T)

Connection of bus ribbons:Clamp

Trade Information
  • FOB Port
  • SHENZHEN
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T)
  • Supply Ability
  • 10000 Per Month
  • Delivery Time
  • 4 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard packing
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
