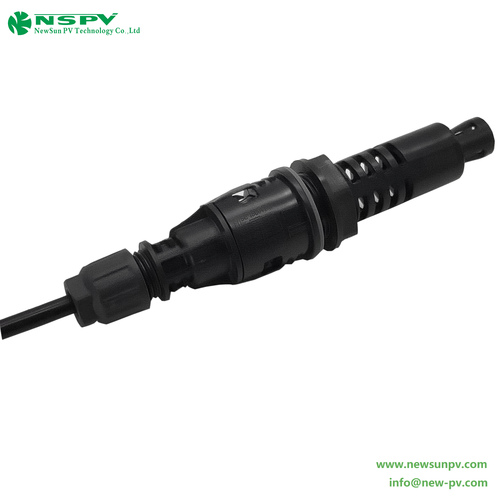

High Voltage 1500VDC TUV Solar Branch Fuse Connector Solar Inline Fuse Connector

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1500 Volt (V)
Size 14.9*2.5*2.2
Dimension(L*W*H) 14.9*2.5*2.2 Centimeter (cm)
Color Black
Supply Ability : 10000 Piece Per Month
Share Your Product:

10.98 - 15.56 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 100 Piece
Price Range 10.98 - 15.56 USD ($)/Piece

Product Specifications

Product Type Other
Size 14.9*2.5*2.2
Output Voltage 1500 Volt (V)
Dimension(L*W*H) 14.9*2.5*2.2 Centimeter (cm)
Operating Temperature -40-+85 Celsius (oC)
Color Black
Material PPE/PA(Insulation material)

Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Month
Delivery Time 10 Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications TUV

Product Description

1500VDC 2in1 solar inline fuse connector

Product Specifications:

Insulation material:PPE/PA;

Rated current(Without fuse):Max. Input:30A, Max. Output:60A;

Rated voltage:1500VDC;

Maximum voltage:8kV;

Contact resistance:less than 0.25mOhm;

Contact material:Copper,Tin plated;

Degree of protection:IP68;

Rated Impulse voltage:16KV;

Fuse Specification:1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,30A,32A,35A,40A,45A,50A;

Safety degree:II;

Flame class:UL94-V0;

Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);

Upper limiting temperature:110 degrees Celsius(IEC);

Suitable cable cross sections:4-10sqmm cable;

Suitable for fuse size(mm):10X85 or 10/14X85;

Regulatory approval:TUV,CE(EN60269/EN62208).
