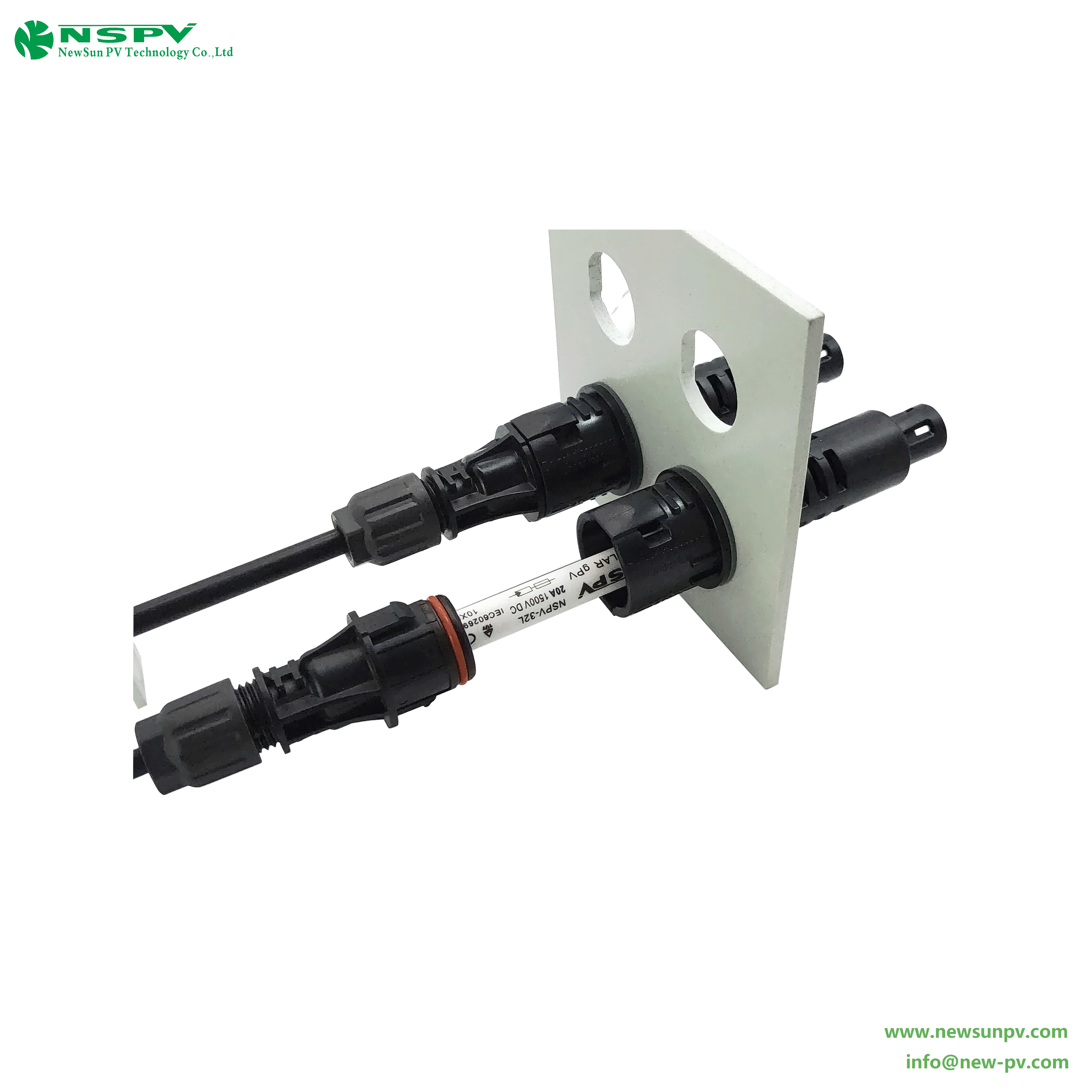

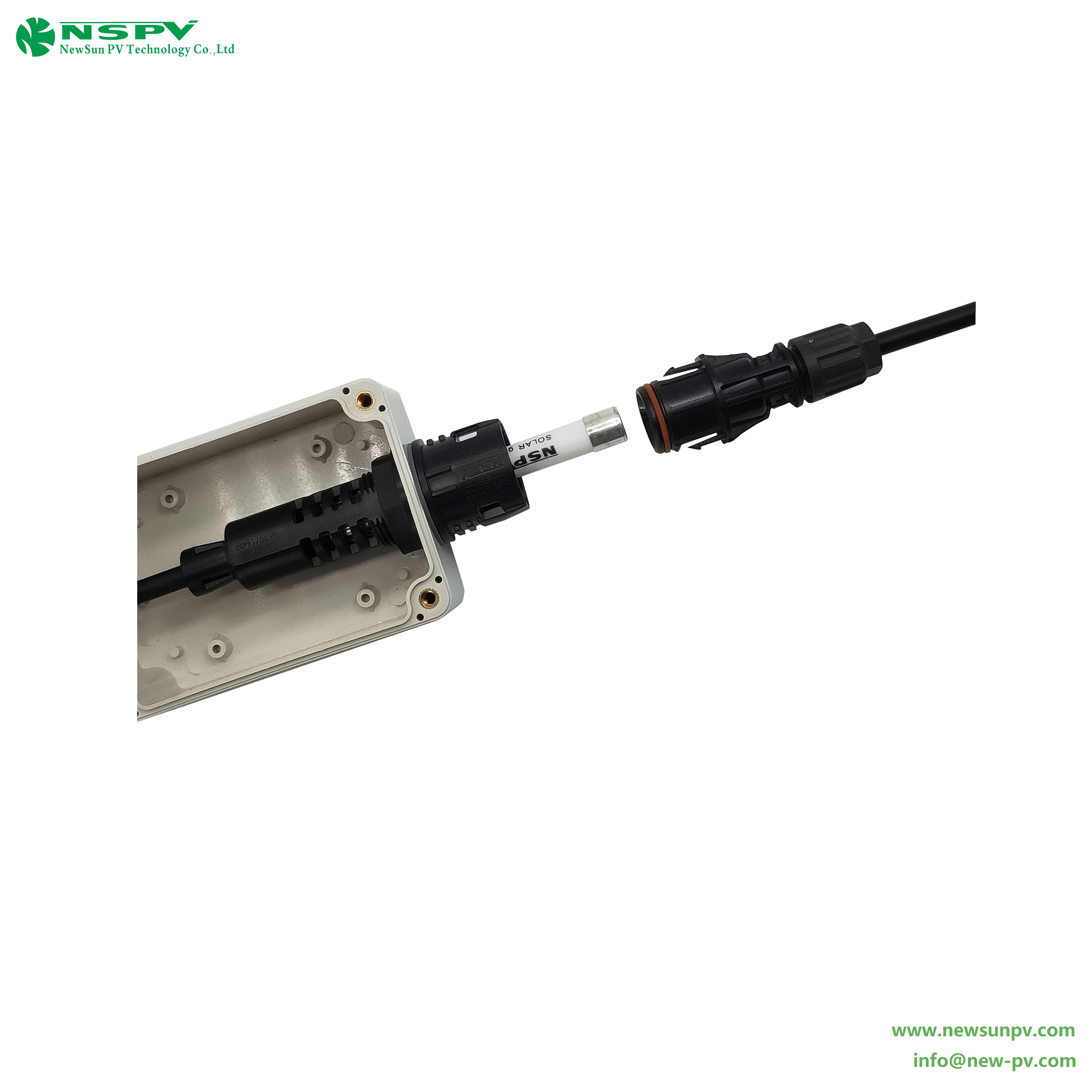

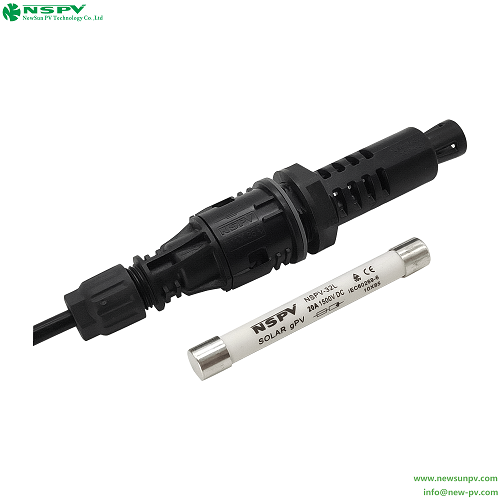

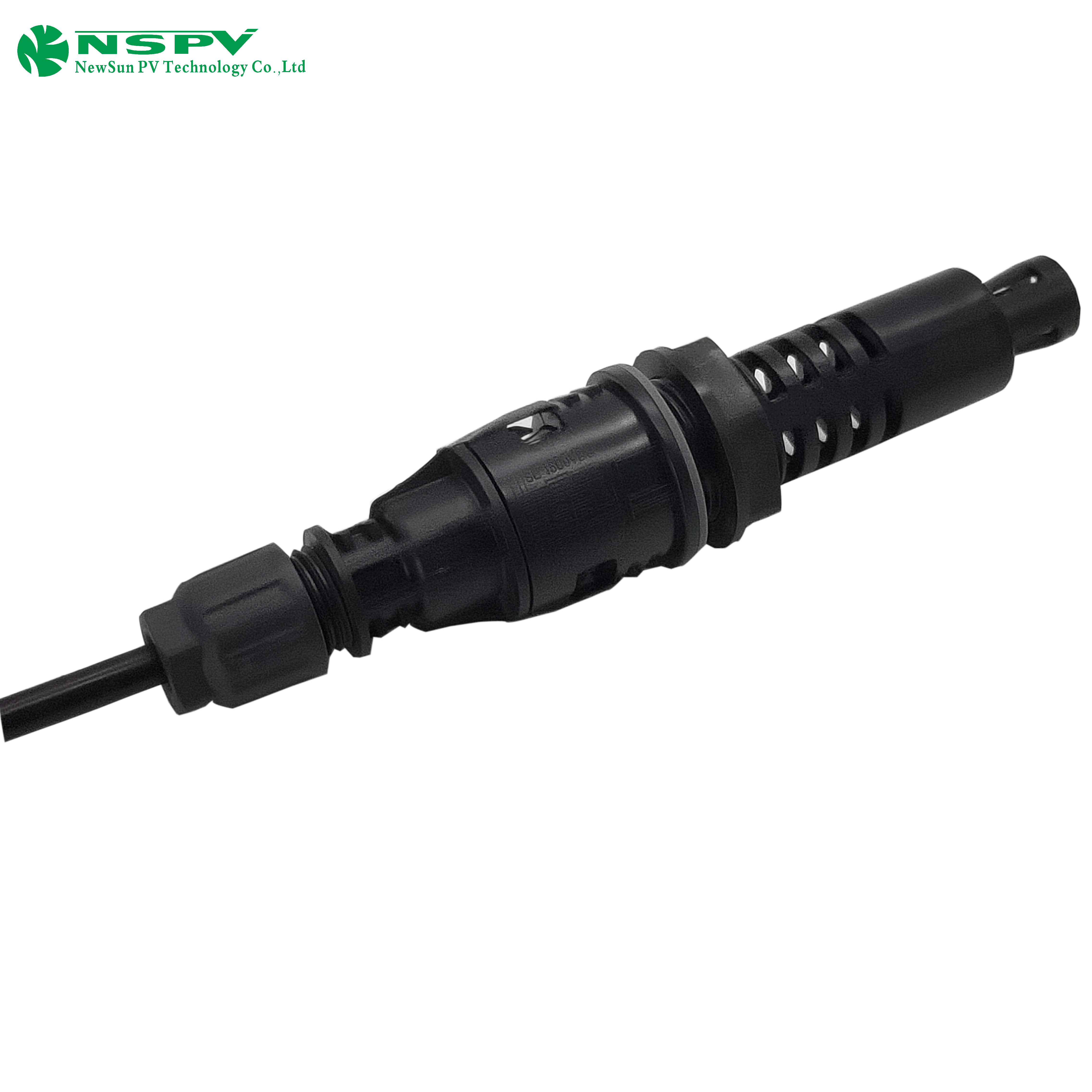

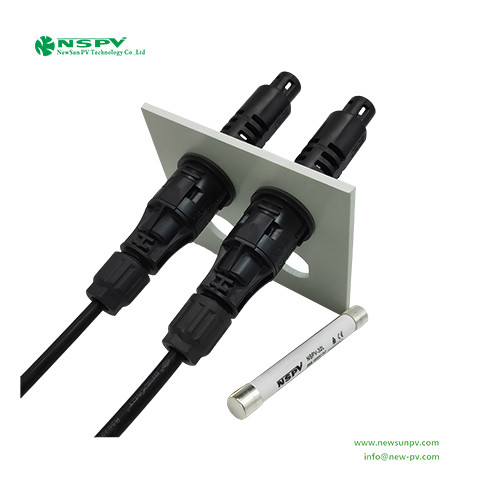

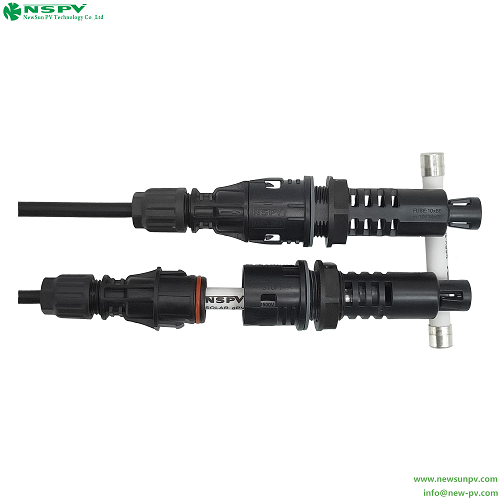

Photovoltaic Solar Panel Inline Fuse Connectors Cable End With TUV Certificate For Solar System Protection

Photovoltaic Solar Panel Inline Fuse Connectors Cable End With TUV Certificate For Solar System Protection

Product Details:

  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Max Voltage 1575 Volt (V)
  • Output Voltage 1500 Volt (V)
  • Size 14.9*2.9*2.9
  • Dimension (L*W*H) 14.9*2.9*2.9 Centimeter (cm)
2.42 USD ($)/Piece
X

Photovoltaic Solar Panel Inline Fuse Connectors Cable End With TUV Certificate For Solar System Protection Price And Quantity

  • 2.42 USD ($)/Piece
  • 1000 Piece

Photovoltaic Solar Panel Inline Fuse Connectors Cable End With TUV Certificate For Solar System Protection Product Specifications

  • 14.9*2.9*2.9
  • 1575 Volt (V)
  • -40-+85 Celsius (oC)
  • Black
  • 1500 Volt (V)
  • 14.9*2.9*2.9 Centimeter (cm)
  • PPE/PA(Insulation material)
  • 0.076 Kilograms (kg)
  • Other

Photovoltaic Solar Panel Inline Fuse Connectors Cable End With TUV Certificate For Solar System Protection Trade Information

  • EXW
  • 1000000 Piece Per Year
  • Days
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard packing
  • All India
  • TUV

Product Description

New Launched Solar System Ip68 Dc Pv In-line Panel Fuse Connector Copper Material 50a Cable End

Product Specifications:

Insulation material

PPE/PA

Fuse Specification

1A-50A

Rated current(Without fuse)

50A

Safety degree

II

Rated voltage

1500VDC

Flame class

UL94-V0

Maximum voltage(With fuse)

1575V

Ambient temperature range

-40-+85(IEC)

Contact resistance

less than 0.25 mOhm

Upper limiting temperature

110(IEC)

Contact material

Copper,Tin plated

Suitable cable cross sections

2.5-16mmsq/14-6AWG

Degree of protection

IP68(1m,1H)

Suitable for fuse size(mm)

10X85 or 10/14X85

Rated Impulse voltage

12KV

Regulatory approval

TUV,CE
