IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types

IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types

7.78 USD ($)/Piece
Get a Price/Quote

Product Details:

Request To Call Back Send Inquiry
X

IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types Price And Quantity

  • 7.78 - 7.78 USD ($)/Piece
  • 7.78 USD ($)/Piece
  • 500 Piece

IP68 Waterproof 1500VDC 50A Solar Panel Fuse Connector TUV Fuse Connector 3 Types Trade Information

  • Telegraphic Transfer (T/T)
  • 100000 Piece Per Day
  • 15 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Standard packing
  • Central America, North America, Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • TUV

Product Description

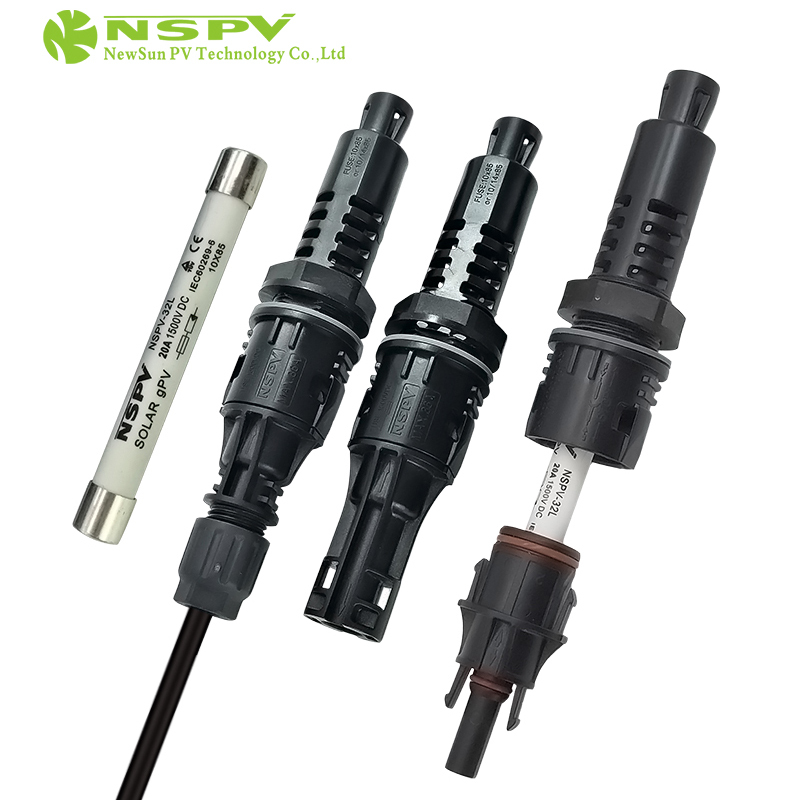

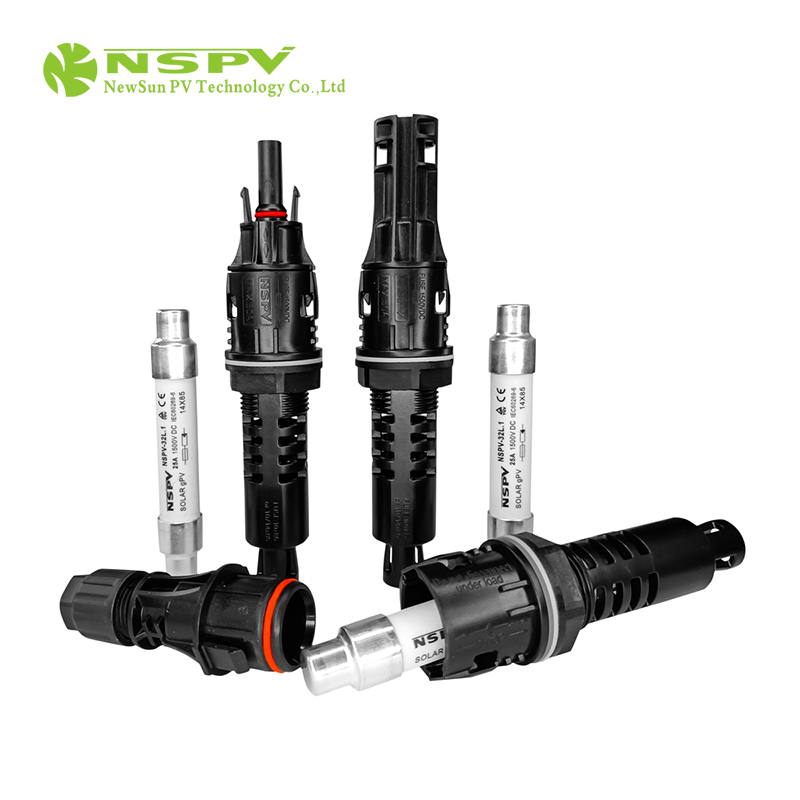

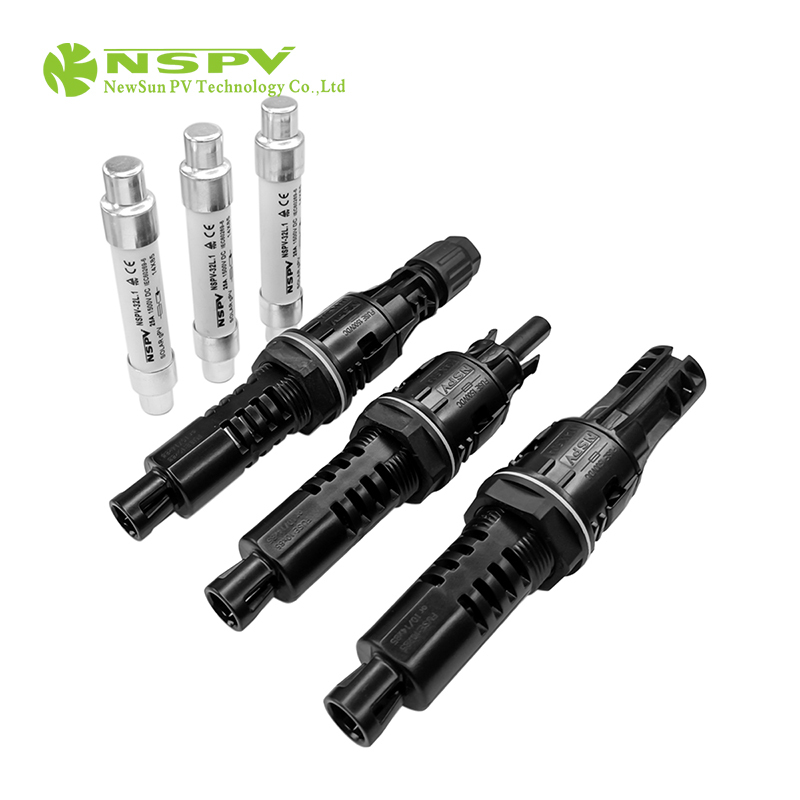

1500VDC PV 4.0 Panel Fuse Connector 3 types

Features:
1500VDC, 50A; IP68; Low contact resistance; TUV certified; Suitable for 2.5-16sqmm cable; Suitable for fuse 10*85 or 10/14*85mm; Easy to replace fuse.
Model:4PFC/4PFM/4PFF, Please inquire for details and each price excludes the fuse.

Product specifications
Insulation material PPE/PA Fuse specifications 1A-50A
Rated current(without fuse) 50A Safety degree II
Rated voltage 1500VDC Flame class UL94-V0
Maximum voltage(with fuse) 1575V Ambient temperature range -40+85(IEC)
Contact resistance 0.25 m Upper limiting temperature 110(IEC)
Contact material Copper, Tin plated Suitable cable cross sections

2.516mm2 /146AWG
Degree of protection IP68(1m,1H) Suitable fuse size(mm) 10*85 or 10/14*85
Rated impulse voltage 12KV Regulatory approval TUV, CE
