1500VDC 50A PV Panel Fuse Connector TUV Panel Fuse Connector Cable Type

1500VDC 50A PV Panel Fuse Connector TUV Panel Fuse Connector Cable Type

7.78 USD ($)/Piece

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Request To Call Back Send Inquiry

1500VDC 50A PV Panel Fuse Connector TUV Panel Fuse Connector Cable Type Price And Quantity

Price Range 7.78 - 8.00 USD ($)/Piece
Price 7.78 USD ($)/Piece
Minimum Order Quantity 500 Piece

1500VDC 50A PV Panel Fuse Connector TUV Panel Fuse Connector Cable Type Trade Information

Payment Terms Telegraphic Transfer (T/T)
Supply Ability 10000 Piece Per Day
Delivery Time 12 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America
Main Domestic Market All India
Certifications TUV

Product Description

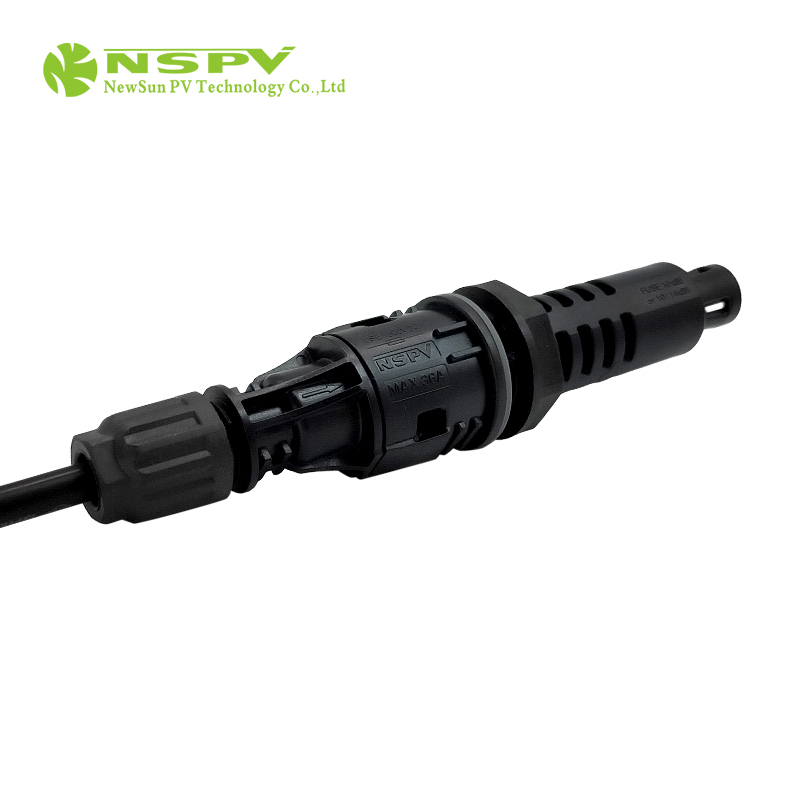

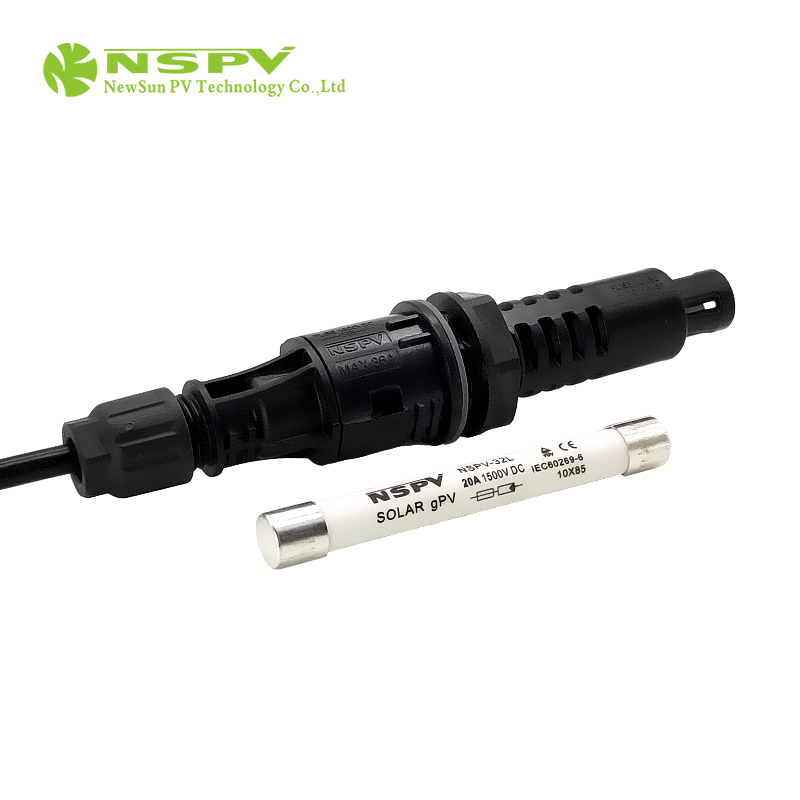

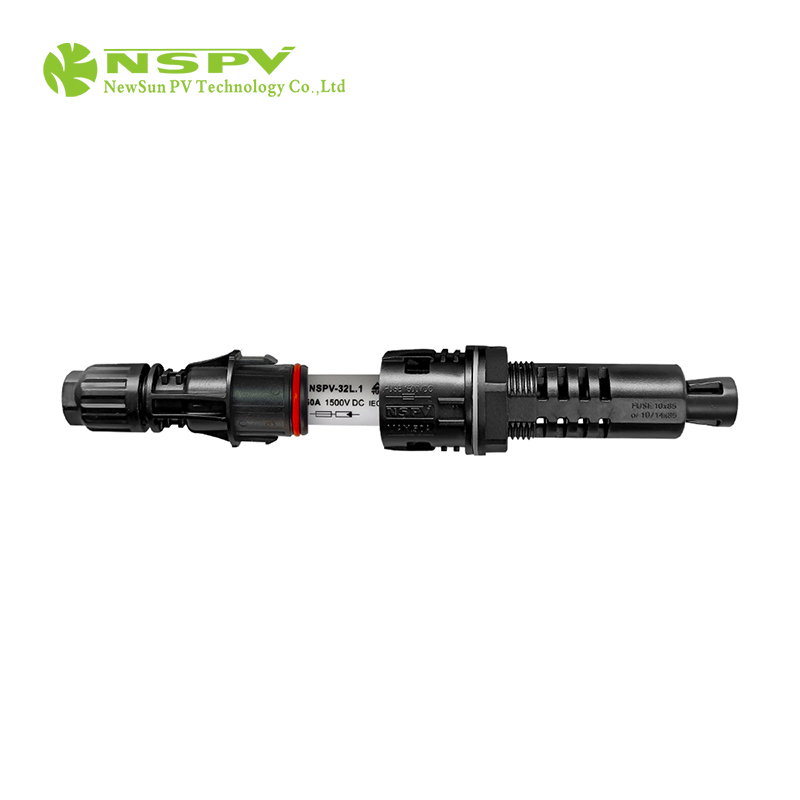

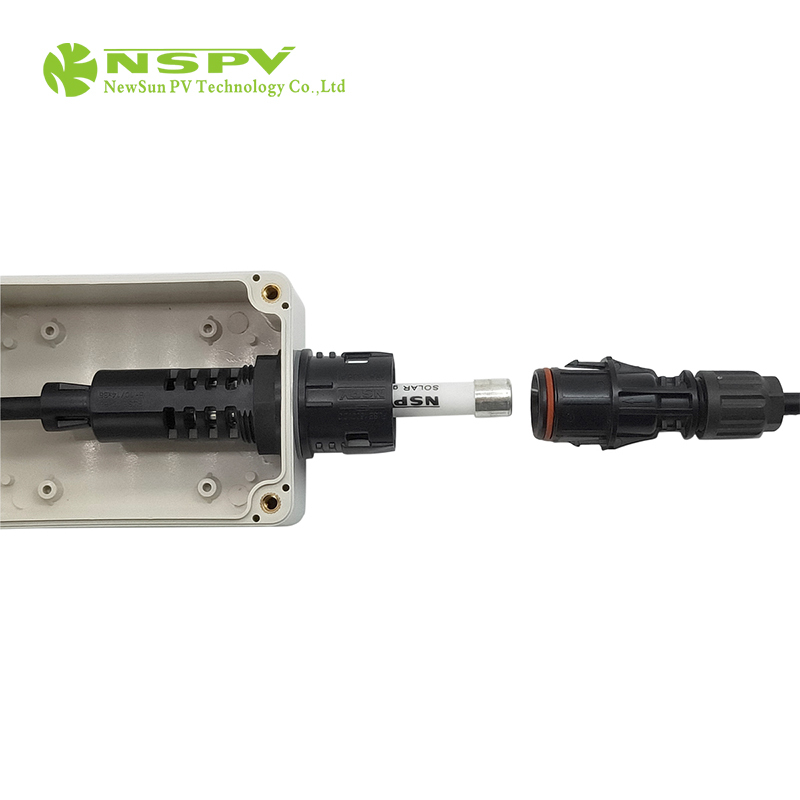

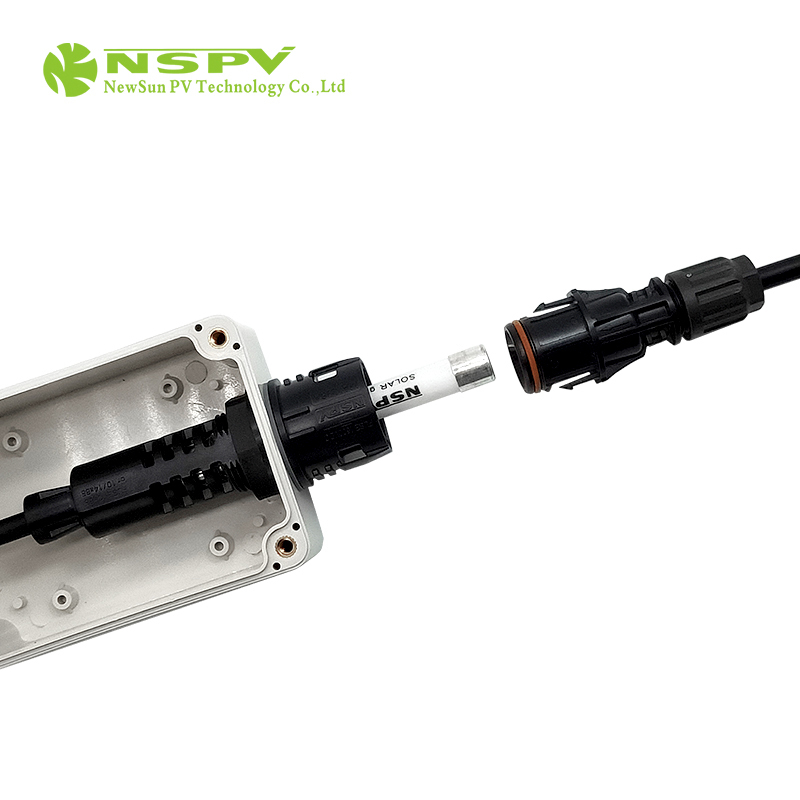

1500VDC PV 4.0 Panel Fuse Connector 3 types

Features:
1500VDC, 50A; IP68; Low contact resistance; TUV certified; Suitable for 2.5-16sqmm cable; Suitable for fuse 10*85 or 10/14*85mm; Easy to replace fuse.
Model:4PFC, Please inquirefor details and each price excludesthe fuse.

Product specifications
Insulation material	PPE/PA	Fuse specifications	1A-50A
Rated current(without fuse)	50A	Safety degree	II
Rated voltage	1500VDC	Flame class	UL94-V0
Maximum voltage(with fuse)	1575V	Ambient temperature range	-40+85(IEC)
Contact resistance	0.25 m	Upper limiting temperature	110(IEC)
Contact material	Copper, Tin plated	Suitable cable cross sections	2.516mm2 /146AWG
Degree of protection	IP68(1m,1H)	Suitable fuse size(mm)	1085 or 10/1485
Rated impulse voltage	12KV	Regulatory approval	TUV, CE
