2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors

Product Details:

  • Material PPE/TPE(Insulation material)
  • Operating Temperature -40-+90 Celsius (oC)
  • Output Voltage 1000 Volt (V)
  • Color Black
X

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Price And Quantity

  • 1000 Set

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Product Specifications

  • 1000 Volt (V)
  • -40-+90 Celsius (oC)
  • PPE/TPE(Insulation material)
  • Black

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Trade Information

  • EXW
  • 10000 Set Per Month
  • Days
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard packing
  • All India

Product Description

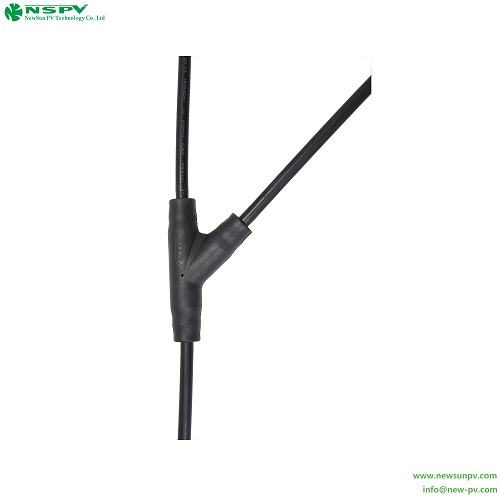

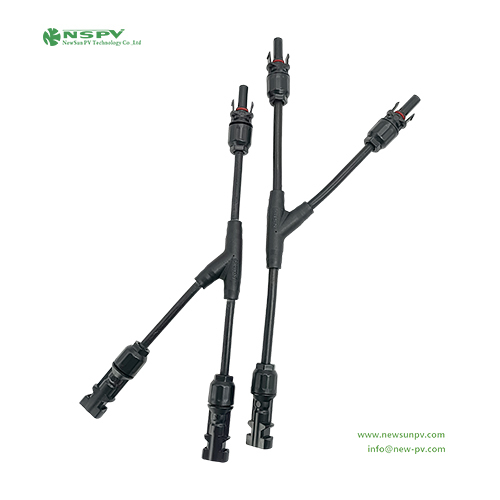

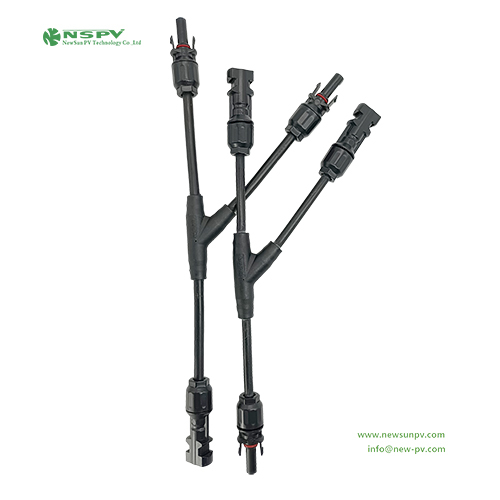

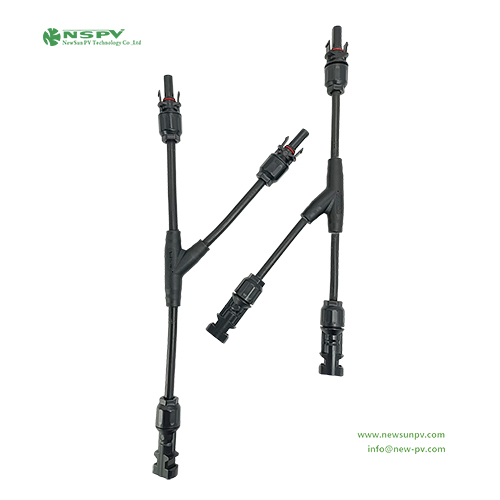

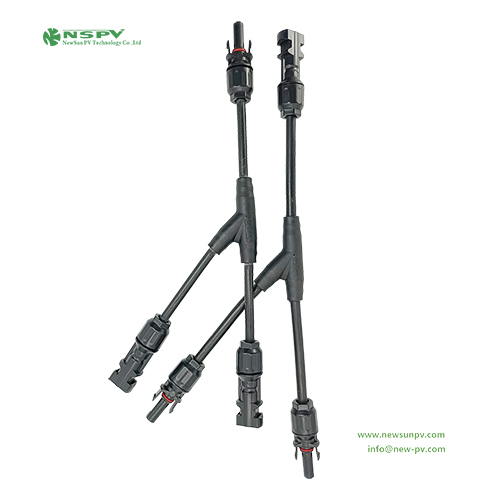

Solar Cable Assembly Connector 2 In 1 Y Type

Collaboration with expert advice and modern technology, we are engaged as exporter and manufacturer of Solar Cable Assembly Connectorwhich is used for assemble the solar cable.

We offer this in several technical specifications as per the requirement of our customers.

Designed to perfection, this connector is widely appreciated for its reliability, excellent quality and longer service life.

This superior make solar cable assembly connector has created a huge wave of demand in the international markets due to its cost effectiveness and unique features.

1500VDC Solar Cable Assembly

Product Specifications:

  • Insulation material:PPE/TPE/PA;
  • Rated voltage:1500VDC;
  • Rated Impulse voltage:16kV;
  • Test voltage:8kV(50Hz,1min);
  • Contact resistance:less than 0.25mOhm;
  • Contact material:Copper,Tin plated;
  • Degree of protection:IP68(1m,1H);
  • Overvoltage category/Pollution degree:CATIII/2;
  • Safety degree:II;
  • Flame class:UL94-V0;
  • Installation type:Outdoor,UV resistant(F1);
  • Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);
  • Upper limiting temperature:110 degrees Celsius(IEC);
  • Suitable cable cross sections:1.5-10mmsq./16-8AWG;
  • Connecting system:Crimp connection;
  • Regulatory approval:TUV/CE(IEC62852:2014).
