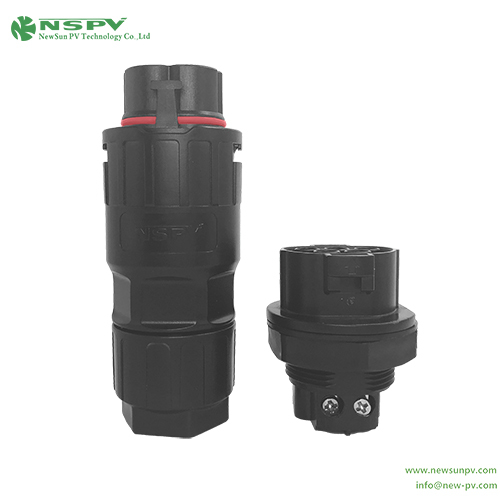

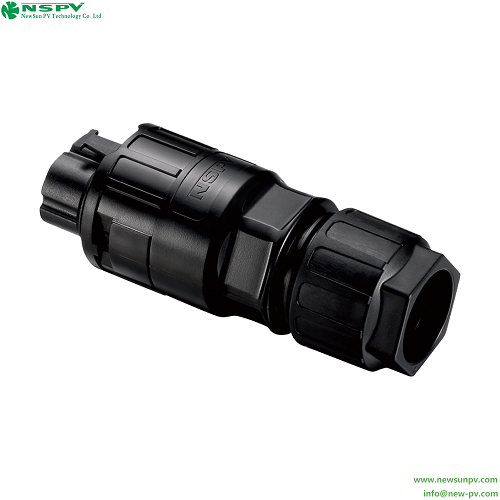

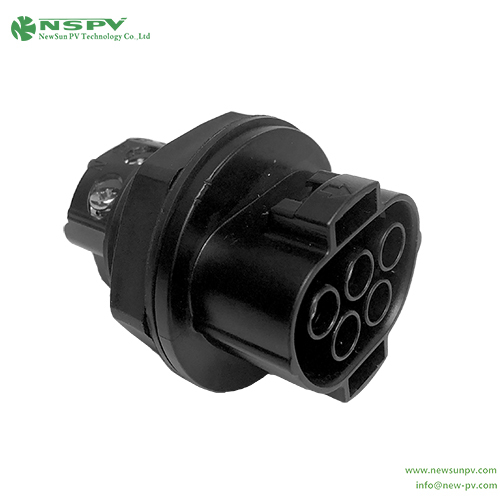

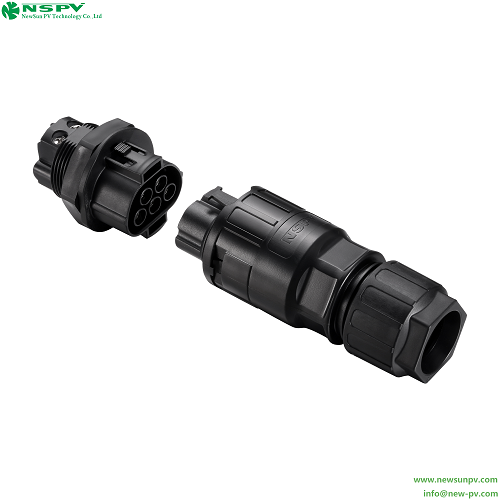

5P Solar Inverter AC Connectors IP68 Waterproof With TUV Certificate Cable Male To Panel Female Type

5P Solar Inverter AC Connectors IP68 Waterproof With TUV Certificate Cable Male To Panel Female Type

Product Details:

  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Output Voltage 500 Volt (V)
  • Color Black
8.73 USD ($)/Set
X

5P Solar Inverter AC Connectors IP68 Waterproof With TUV Certificate Cable Male To Panel Female Type Price And Quantity

  • 100 Set
  • 8.73 USD ($)/Set

5P Solar Inverter AC Connectors IP68 Waterproof With TUV Certificate Cable Male To Panel Female Type Product Specifications

  • PPE/PA(Insulation material)
  • Black
  • Other
  • 500 Volt (V)
  • -40-+85 Celsius (oC)

5P Solar Inverter AC Connectors IP68 Waterproof With TUV Certificate Cable Male To Panel Female Type Trade Information

  • EXW
  • 10000 Set Per Week
  • Days
  • Yes
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • TUV

Product Description

AC5P Connector II
  • Insulation material:PPE/PA;Safety degree:II;
  • Rated current:Max.50A(10sqmm);Flame class:UL94-V0;
  • Rated voltage:500V AC;Suitable cable OD Max.:21mm;
  • Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
  • Typical contact resistance:less than 0.25 mOhm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
  • Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
  • Degree of protection:IP68;Insulation resistance:more than 1000 MOhm;
  • Contraction diameter/number of contact:4.0x5;Standard:EN 61984.
