IP68 Waterproof Solar 2 To 1 Fuse Branch Connectors For Solar System Protection 2 Male To 1 Female

IP68 Waterproof Solar 2 To 1 Fuse Branch Connectors For Solar System Protection 2 Male To 1 Female

Name: IP68 Waterproof Solar 2 To 1 Fuse Branch Connectors For Solar System Protection 2 Male To 1 Female
Brand: NEWSUN PV TECHNOLOGY CO., LTD.
Price: 7.26 USD
Availability: InStock

7.26 USD ($)/Piece

Get a Price/Quote

Product Details:

Features Good Quality
Material PVC
Switch Mode Manual Switch
Size Standard
Color Black
Warranty 1 Year
Application Industrial
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

IP68 Waterproof Solar 2 To 1 Fuse Branch Connectors For Solar System Protection 2 Male To 1 Female Price And Quantity

Price 7.26 USD ($)/Piece
Minimum Order Quantity 500 Piece

IP68 Waterproof Solar 2 To 1 Fuse Branch Connectors For Solar System Protection 2 Male To 1 Female Product Specifications

Material PVC
Features Good Quality
Warranty 1 Year
Color Black
Switch Mode Manual Switch
Application Industrial
Size Standard

IP68 Waterproof Solar 2 To 1 Fuse Branch Connectors For Solar System Protection 2 Male To 1 Female Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Day
Delivery Time 12 Days
Sample Available No
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard Packing
Main Domestic Market All India

Product Description

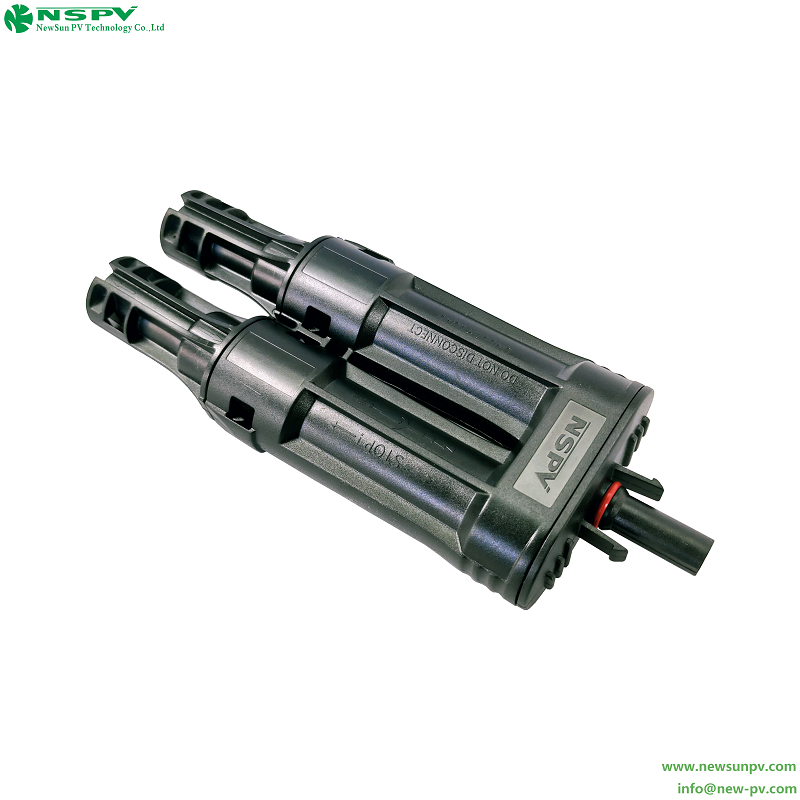

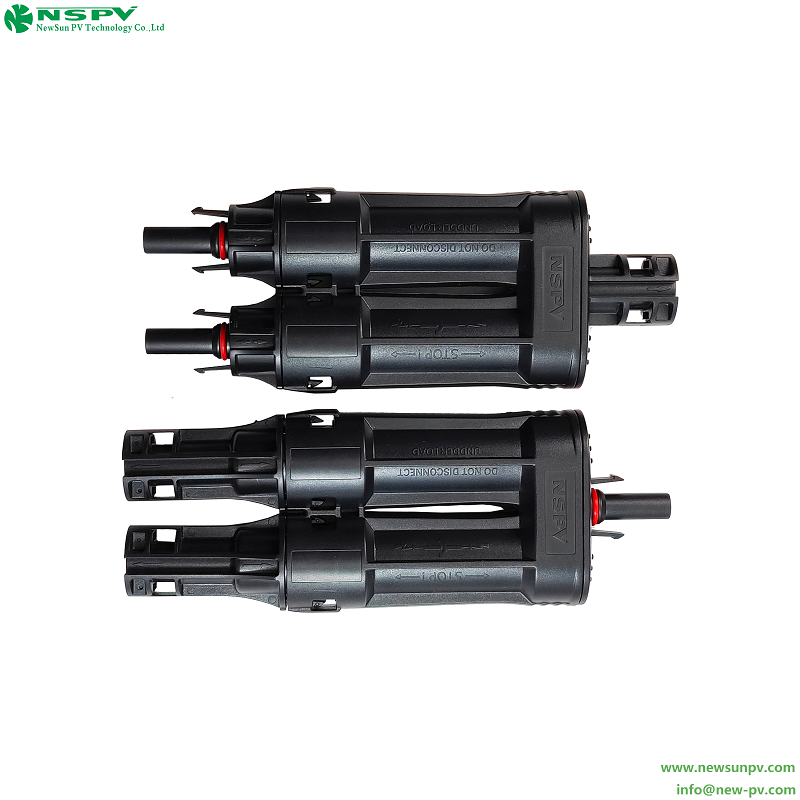

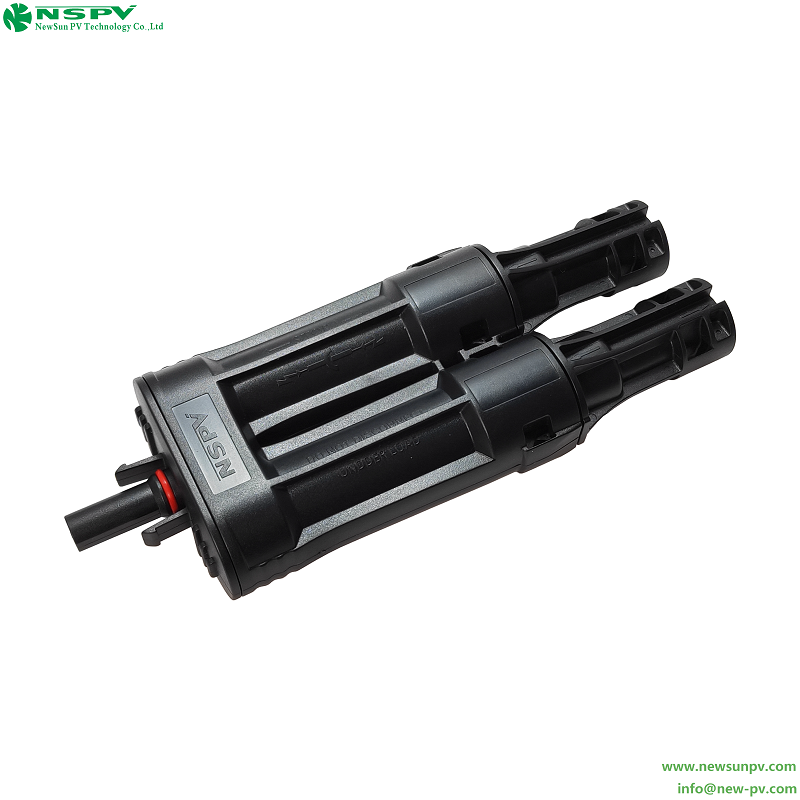

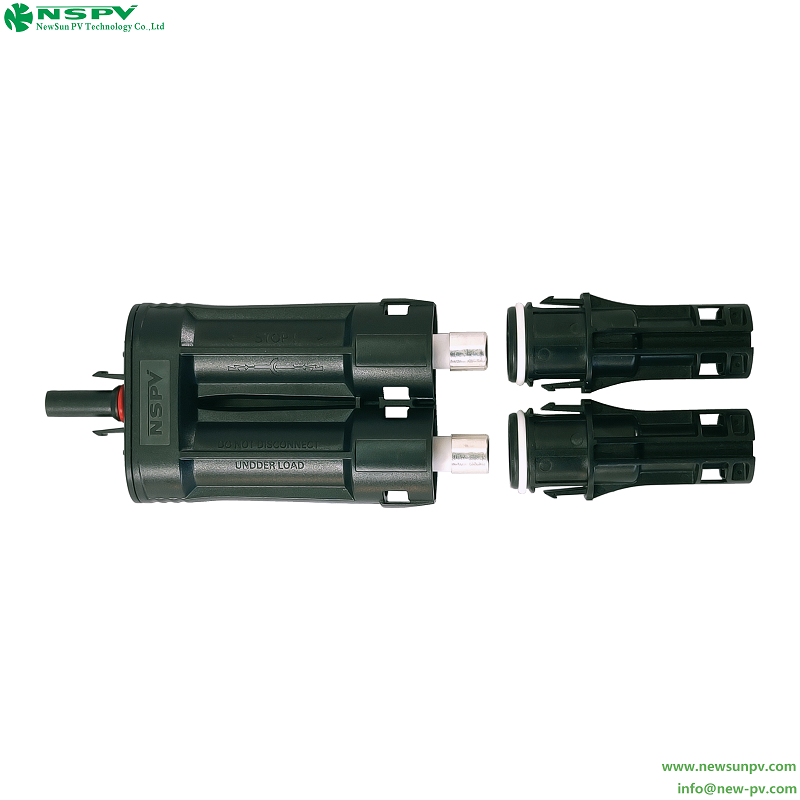

PV4.0 2 to 1 Solar Branch Inline Fuse Connector
Insulation material	PPE/PA
Rated current(Without fuse)	Max. Input:30A Max. Output:60A
Rated voltage	1500VDC
Test voltage	8kV
Typical contact resistance	0.25m
Rated Impulse voltage	16kV
Contact material	Copper,Tin plated
Degree of protection	IP68
Safety degree	II
Overvoltage category/Pollution degree	CATIII/2
Flame class	UL94-V0
Ambient temperature range	-40+85(IEC)
Suitable cable cross-sections	4-10sqmm
Upper limiting temperature	110(IEC)
Fuse specifications	1A-50A
Regulatory approval	TUV/CE(EN60269/EN62208)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fuse Connector' category

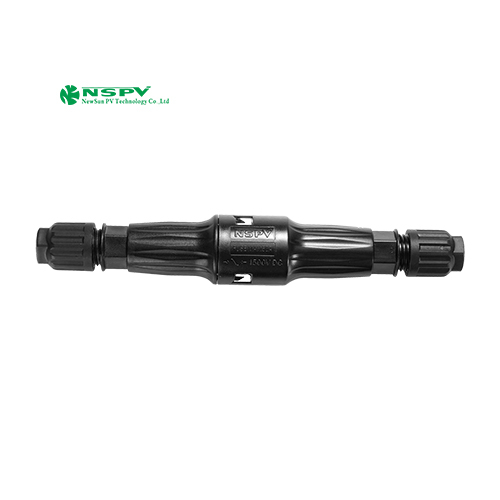

Photovoltaic Solar Panel Inline Fuse Connectors Cable End With TUV Certificate For Solar System Protection Price : 4.8 USD ($)/Piece Minimum Order Quantity : 1000 Material : PPE/PA(Insulation material) Color : Black Product Type : Other Output Voltage : 1500 Volt (V) Operating Temperature : 40+85 Celsius (oC) Max Voltage : 1575 Volt (V) Dimension (L*W*H) : 14.9*2.9*2.9 Centimeter (cm) Size : 14.9*2.9*2.9 Weight : 0.076 Kilograms (kg)

Send Inquiry

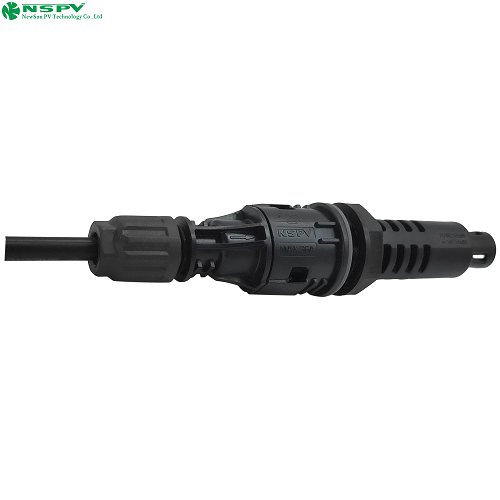

1500VDC 50A Solar Panel Fuse Connectors Male Connector IP68 Waterproof With TUV Certificate For Combiner Box Price : 2.68 USD ($)/Piece Minimum Order Quantity : 1000 Material : PPE/PA(Insulation material) Color : Black Product Type : Other Output Voltage : 1500 Volt (V) Operating Temperature : 40+85 Celsius (oC) Max Voltage : 1575 Volt (V) Dimension (L*W*H) : 13.9*2.9*2.9 Centimeter (cm) Size : 13.9*2.9*2.9 Weight : 0.075 Kilograms (kg)
