IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Female Type

8.5 USD ($)/Piece
Get a Price/Quote

Product Details:

  • Features Good Quality
  • Material PVC
  • Switch Mode Manual Switch
  • Size Standard
  • Color Black
  • Warranty 1 Year
  • Application Industrial
  • Click to view more
Request To Call Back Send Inquiry
X

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Female Type Price And Quantity

  • 500 Piece
  • 8.5 USD ($)/Piece

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Female Type Product Specifications

  • Industrial
  • Black
  • Standard
  • Manual Switch
  • 1 Year
  • PVC
  • Good Quality

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Female Type Trade Information

  • Telegraphic Transfer (T/T)
  • 100000 Piece Per Day
  • 15 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • TUV

Product Description

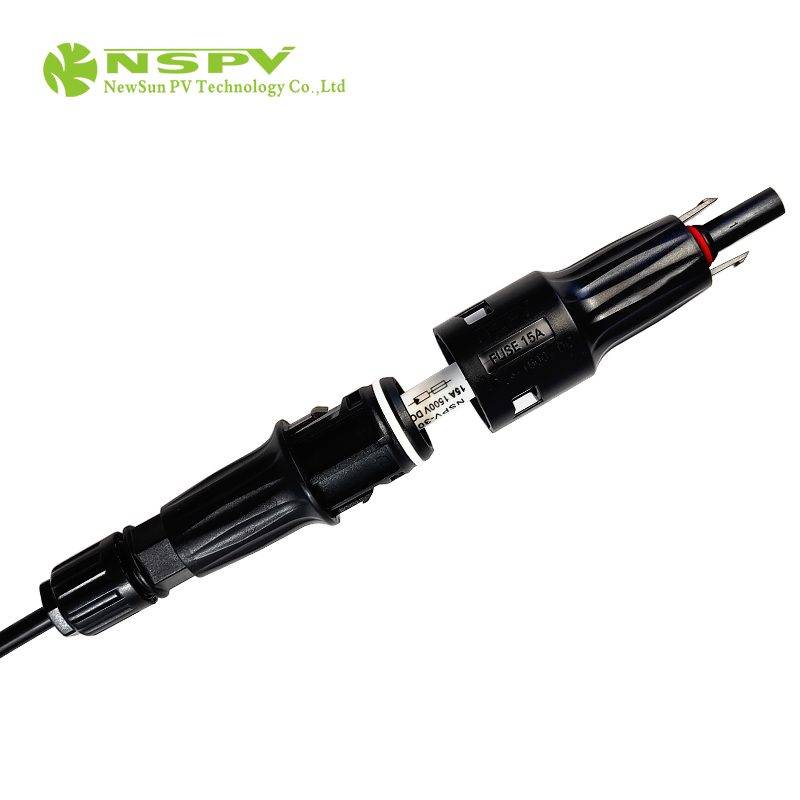

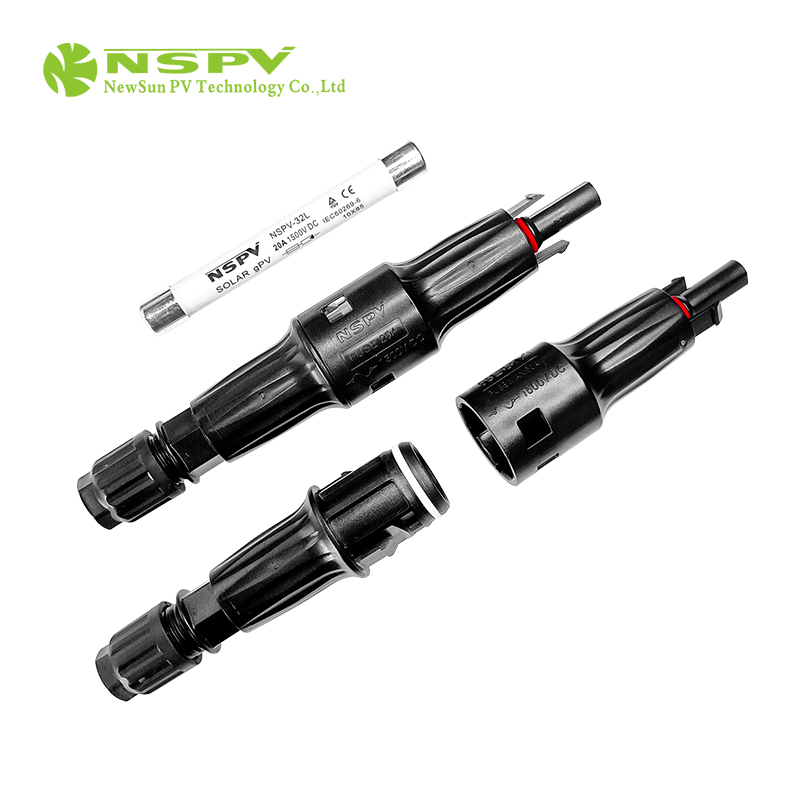

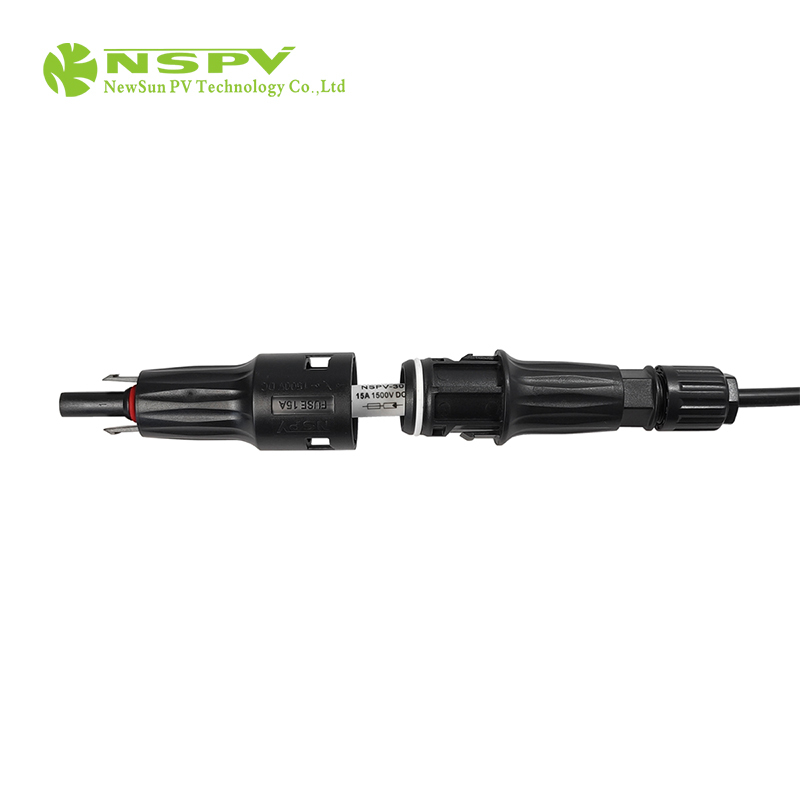

1500VDC PV 4.0 Fuse Connector 4 types

1500VDC solar inline fuse connector features:
1500VDC, 50A; IP68; Low contact resistance; TUV certified; Suitable for 2.5-10sqmm cable(4F1-154F3-15); Suitable for fuse 10*85 or 10/14*85mm; Easy to replace fuse.

Model:4F3-15, Please inquire for details and each price excludes the fuse.

Product specifications
Insulation material PPE/PA Fuse specifications 1A-50A
Rated current(without fuse) 50A Safety degree II
Rated voltage 1500VDC Flame class UL94-V0
Maximum voltage(with fuse) 1575V Ambient temperature range -40+85(IEC)
Contact resistance 0.25 m Upper limiting temperature 110(IEC)
Contact material Copper, Tin plated Suitable cable cross-sections

2.510mm2 /148AWG

(4F1-154F3-15)
Degree of protection IP68(1m,1H) Suitable fuse size(mm) 10*85 or 10/14*85
Rated impulse voltage 12KV Regulatory approval TUV, CE




Exceptional Water and Weather Resistance

This solar fuse connector boasts an IP68 rating, offering thorough protection against water and dust infiltration. Designed for outdoor use in solar arrays, it provides dependable performance even under severe weather conditions, ensuring the safety and longevity of your photovoltaic systems.


Premium Construction and Safety

Crafted from high-quality PVC and built to handle voltages up to 1500VDC and currents up to 50A, this female type connector guarantees safety and efficiency in industrial environments. The manual switch mode enables straightforward operation, while robust design standards ensure minimal maintenance and extended service life.

FAQ's of IP68 Waterproof Solar Fuse Connector 1500VDC 50A Cable Female Type:


Q: How do I install the IP68 Waterproof Solar Fuse Connector?

A: To install the connector, simply strip the cable as needed, insert it into the fuse connector, and tighten the nuts to ensure a secure and waterproof connection. Always follow the instruction manual and adhere to proper safety practices during installation.

Q: What is the benefit of the IP68 rating for this solar connector?

A: An IP68 rating means the connector is completely dust-tight and protected against continuous immersion in water, making it highly reliable for use in outdoor and industrial solar installations where exposure to weather is a concern.

Q: When should this solar fuse connector be used in solar installations?

A: This connector is best used when a secure, waterproof, and high-voltage connection is required to ensure the safety and performance of solar power systems, particularly in demanding or harsh environments.

Q: Where is the ideal place to apply this connector?

A: It is ideal for use in industrial settings, solar farms, and other locations requiring durable connections, especially by distributors, exporters, manufacturers, suppliers, and traders operating in China and globally.

Q: What process does the manual switch mode provide?

A: The manual switch mode allows users to easily connect or disconnect the fuse connector as needed for maintenance or safety purposes, without needing special tools.

Q: What are the advantages of using this PVC solar fuse connector over other materials?

A: PVC offers excellent durability, chemical resistance, and insulation properties, ensuring the connector withstands harsh outdoor conditions while maintaining safety and longevity.
