2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors 2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors 2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors 2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors 2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors 2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors

717 INR/Piece
Get a Price/Quote

Product Details:

  • Maintenance Type Maintenance-free
  • Input Voltage Up to 1000V DC
  • Efficiency Low contact resistance (<1m)
  • Features Waterproof (IP67), Dustproof, UV resistant, Flame retardant, Easy installation, High current rating
  • Product Type 2 In 1 Solar Y Type Connector / Solar Cable Harness / Y Branch Connector
  • Material PPE/TPE(Insulation material)
  • Number of Cells Not applicable (Connector)
  • Click to view more
Request To Call Back Send Inquiry
X

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Price And Quantity

  • 717 INR/Piece
  • 1 Piece

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Product Specifications

  • Suitable for solar PV systems up to 1000V DC
  • 1000 Volt (V)
  • Waterproof (IP67), Dustproof, UV resistant, Flame retardant, Easy installation, High current rating
  • Photovoltaic Connection/MC4 Type Solar Connector
  • Not applicable (Connector)
  • 1000V DC
  • 2 In 1 Solar Y Type Connector / Solar Cable Harness / Y Branch Connector
  • Approx. 110g per pair
  • Plug-and-play, tool-free connection
  • PPE/TPE(Insulation material)
  • 1000V DC
  • Black
  • Standard MC4 compatible
  • Up to 1000V DC
  • -40-+90 Celsius (oC)
  • Maintenance-free
  • Non-switching, passive connector
  • Low contact resistance (<1m)
  • Typically 30cm to 60cm (customizable)
  • Approx. 300mm length per branch
  • Solar Panel Array, PV Module Parallel Connection
  • Tin-plated copper
  • 0 - 100% RH
  • 2.5 mm2, 4 mm2, 6 mm2 solar cable
  • Yes
  • IP67 (waterproof & dustproof)
  • PPO (Polyphenylene Oxide)
  • 30A max
  • UL94-V0
  • MC4/Y Branch Compatible
  • >50 mating cycles

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Trade Information

  • EXW
  • 10000 Piece Per Day
  • 12 Days
  • No
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard packing
  • All India

Product Description

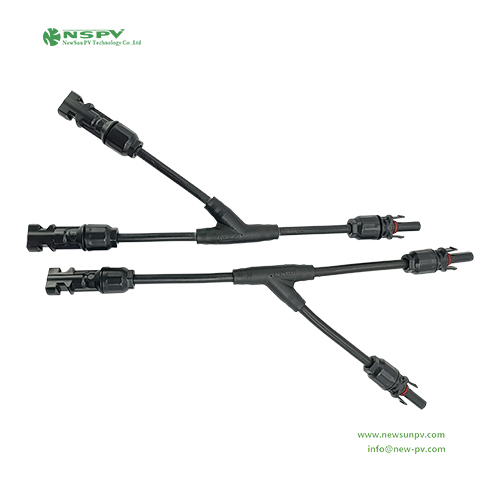

Solar Cable Assembly Connector 2 In 1 Y Type

Collaboration with expert advice and modern technology, we are engaged as exporter and manufacturer of Solar Cable Assembly Connectorwhich is used for assemble the solar cable.

We offer this in several technical specifications as per the requirement of our customers.

Designed to perfection, this connector is widely appreciated for its reliability, excellent quality and longer service life.

This superior make solar cable assembly connector has created a huge wave of demand in the international markets due to its cost effectiveness and unique features.

1500VDC Solar Cable Assembly

Product Specifications:

  • Insulation material:PPE/TPE/PA;
  • Rated voltage:1500VDC;
  • Rated Impulse voltage:16kV;
  • Test voltage:8kV(50Hz,1min);
  • Contact resistance:less than 0.25mOhm;
  • Contact material:Copper,Tin plated;
  • Degree of protection:IP68(1m,1H);
  • Overvoltage category/Pollution degree:CATIII/2;
  • Safety degree:II;
  • Flame class:UL94-V0;
  • Installation type:Outdoor,UV resistant(F1);
  • Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);
  • Upper limiting temperature:110 degrees Celsius(IEC);
  • Suitable cable cross sections:1.5-10mmsq./16-8AWG;
  • Connecting system:Crimp connection;
  • Regulatory approval:TUV/CE(IEC62852:2014).


Effortless Plug-and-Play Installation

These MC4/Y branch solar connectors are purpose-built for rapid, tool-free connections between photovoltaic modules. The standardized MC4 compatible design allows installers to connect and disconnect cables easily, even in the field. Their ergonomic shape and clear polarity markings help prevent installation errors, ensuring confident, hassle-free linking of solar strings.


Engineered for Harsh Environments

Crafted from flame-retardant PPO and TPE, with tin-plated copper contacts, these connectors provide superb resistance to dust, water (IP67), UV rays, humidity (0-100% RH), and salt mist. This makes them notably durable in both rooftop and ground-mounted solar installations - wherever environmental conditions may be tough and reliability is essential.


High Efficiency and Safety Standards

Rated for up to 30A of current and 1000V DC output, these Y branch connectors have extremely low contact resistance (<1m) for minimal power loss. They meet UL94-V0 flame class and support multiple cable cross sections. Designed for a mechanical life of over 50 mating cycles, they offer consistent performance with virtually no maintenance required.

FAQ's of 2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors:


Q: How do I connect the 2 In 1 Solar Y Type Connector to my solar panels?

A: Simply attach the MC4-compatible ends of the Y branch connector to your existing MC4 male and female terminals on the solar panels. The plug-and-play design requires no special tools and ensures a secure, weatherproof connection.

Q: What solar cable sizes are supported by these connectors?

A: These solar Y branch connectors support cable sizes of 2.5 mm2, 4 mm2, and 6 mm2, making them highly versatile for most common solar PV wiring configurations.

Q: When should I use a Y branch connector in a solar array?

A: Use a Y branch connector when you need to parallel connect two solar panels or strings to increase the current while maintaining the same voltage. This setup is common in PV arrays aiming to optimize inverter capacity and efficiency.

Q: Are these connectors waterproof and suitable for outdoor use?

A: Yes, the connectors have an IP67 rating, ensuring they are fully waterproof and dustproof. They are also UV resistant and flame-retardant, making them ideal for all-weather, outdoor solar installations.

Q: What are the long-term maintenance requirements for these connectors?

A: These connectors are designed to be maintenance-free, thanks to their robust construction, corrosion-resistant materials, and sealed design which prevents moisture and dust ingress.

Q: Where are these connectors typically used in a solar energy system?

A: They are primarily used for solar panel array interconnections-specifically for parallel wiring in PV module installations on rooftops, open fields, or commercial solar projects.
