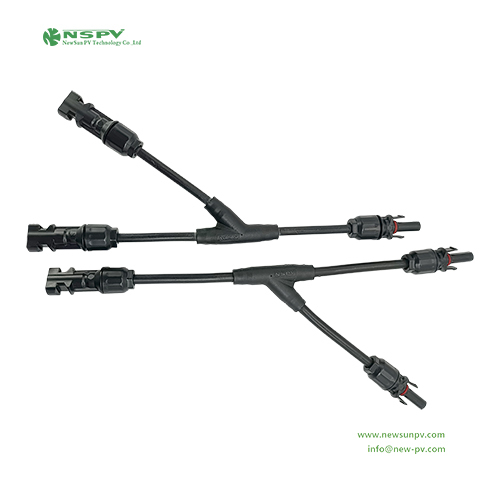

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors

Name: 2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors
Brand: NEWSUN PV TECHNOLOGY CO., LTD.
Price: 9.8 USD
Availability: InStock

9.8 USD ($)/Set

Get a Price/Quote

Product Details:

Input Voltage Up to 1000V DC
Features Waterproof (IP67), Dustproof, UV resistant, Flame retardant, Easy installation, High current rating
Maintenance Type Maintenance-free
Efficiency Low contact resistance (<1m)
Product Type 2 In 1 Solar Y Type Connector / Solar Cable Harness / Y Branch Connector
Material PPE/TPE(Insulation material)
Number of Cells Not applicable (Connector)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Price And Quantity

Price 9.8 USD ($)/Set
Minimum Order Quantity 1000 Set

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Product Specifications

Product Type 2 In 1 Solar Y Type Connector / Solar Cable Harness / Y Branch Connector
Features Waterproof (IP67), Dustproof, UV resistant, Flame retardant, Easy installation, High current rating
Number of Cells Not applicable (Connector)
Output Voltage 1000 Volt (V)
Application Solar Panel Array, PV Module Parallel Connection
Maintenance Type Maintenance-free
Type Of Technology Photovoltaic Connection/MC4 Type Solar Connector
Max System Voltage 1000V DC
Color Black
Switch Mode Non-switching, passive connector
Installation Type Plug-and-play, tool-free connection
Power Suitable for solar PV systems up to 1000V DC
Dimension (L*W*H) Approx. 300mm length per branch
Cable Length Typically 30cm to 60cm (customizable)
Max Voltage 1000V DC
Operating Temperature -40-+90 Celsius (oC)
Efficiency Low contact resistance (<1m)
Size Standard MC4 compatible
Weight Approx. 110g per pair
Material PPE/TPE(Insulation material)
Input Voltage Up to 1000V DC

Resistance to Salt Mist Yes
Contact Material Tin-plated copper
Connector Standard MC4/Y Branch Compatible
Wire Cross Section Supported 2.5 mm2, 4 mm2, 6 mm2 solar cable
IP Rating IP67 (waterproof & dustproof)
Insulation Material PPO (Polyphenylene Oxide)
Ambient Humidity 0 - 100% RH
Mechanical Life >50 mating cycles
Rated Current 30A max
Flame Class UL94-V0

2 In 1 Solar Y Type Connector Solar Cable Harness Solar Y Branch Solacr Cables And Connectors Trade Information

FOB Port EXW
Supply Ability 10000 Set Per Day
Delivery Time 12 Days
Sample Available No
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India

Product Description

Solar Cable Assembly Connector 2 In 1 Y Type

Collaboration with expert advice and modern technology, we are engaged as exporter and manufacturer of Solar Cable Assembly Connectorwhich is used for assemble the solar cable.

We offer this in several technical specifications as per the requirement of our customers.

Designed to perfection, this connector is widely appreciated for its reliability, excellent quality and longer service life.

This superior make solar cable assembly connector has created a huge wave of demand in the international markets due to its cost effectiveness and unique features.

1500VDC Solar Cable Assembly

Product Specifications:

Insulation material:PPE/TPE/PA;
Rated voltage:1500VDC;
Rated Impulse voltage:16kV;
Test voltage:8kV(50Hz,1min);
Contact resistance:less than 0.25mOhm;
Contact material:Copper,Tin plated;
Degree of protection:IP68(1m,1H);
Overvoltage category/Pollution degree:CATIII/2;
Safety degree:II;
Flame class:UL94-V0;
Installation type:Outdoor,UV resistant(F1);
Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);
Upper limiting temperature:110 degrees Celsius(IEC);
Suitable cable cross sections:1.5-10mmsq./16-8AWG;
Connecting system:Crimp connection;
Regulatory approval:TUV/CE(IEC62852:2014).
