TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type

TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type

7.26 USD ($)/Piece
Get a Price/Quote

Product Details:

  • Maintenance Type Low Maintenance
  • Features IP68 Waterproof, TUV Certified, Quick Lock, UV Resistant, Flame Retardant
  • Input Voltage Up to 1000V DC
  • Efficiency High, with minimal power loss
  • Product Type Solar Branch Fuse Connector
  • Material PPO (Polyphenylene oxide), Tinned Copper
  • Power Up to 30A Current Rating
  • Click to view more
Request To Call Back Send Inquiry
X

TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type Price And Quantity

  • 1000 Piece
  • 7.26 USD ($)/Piece
  • Snap-in Safety Locking
  • 0.5 m
  • 6000V (50Hz, 1min)
  • 2 Female to 1 Male (Y Branch)
  • 4~8mm
  • UL94-V0
  • IP68
  • 2.5mm / 4mm / 6mm (14AWG/12AWG/10AWG)

TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type Product Specifications

  • Solar Branch Fuse Connector
  • PPO (Polyphenylene oxide), Tinned Copper
  • Black
  • Up to 1000V DC
  • Photovoltaic Connector with Branch Fuse
  • -40C to +85C
  • Inline Fuse
  • High, with minimal power loss
  • Preassembled, typically 1 meter
  • Low Maintenance
  • Plug-and-Play, Panel mount
  • 1000V DC
  • Up to 30A Current Rating
  • Standard MC4 Compatible
  • IP68 Waterproof, TUV Certified, Quick Lock, UV Resistant, Flame Retardant
  • Approx. 180mm x 35mm x 22mm
  • 1000V DC
  • Up to 1000V DC
  • Approx. 120 g
  • Snap-in Safety Locking
  • 0.5 m
  • 6000V (50Hz, 1min)
  • 2 Female to 1 Male (Y Branch)
  • 4~8mm
  • UL94-V0
  • IP68
  • 2.5mm / 4mm / 6mm (14AWG/12AWG/10AWG)

TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type Trade Information

  • EXW
  • 10000 Piece Per Day
  • 15 Days
  • No
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard Packing
  • All India

Product Description

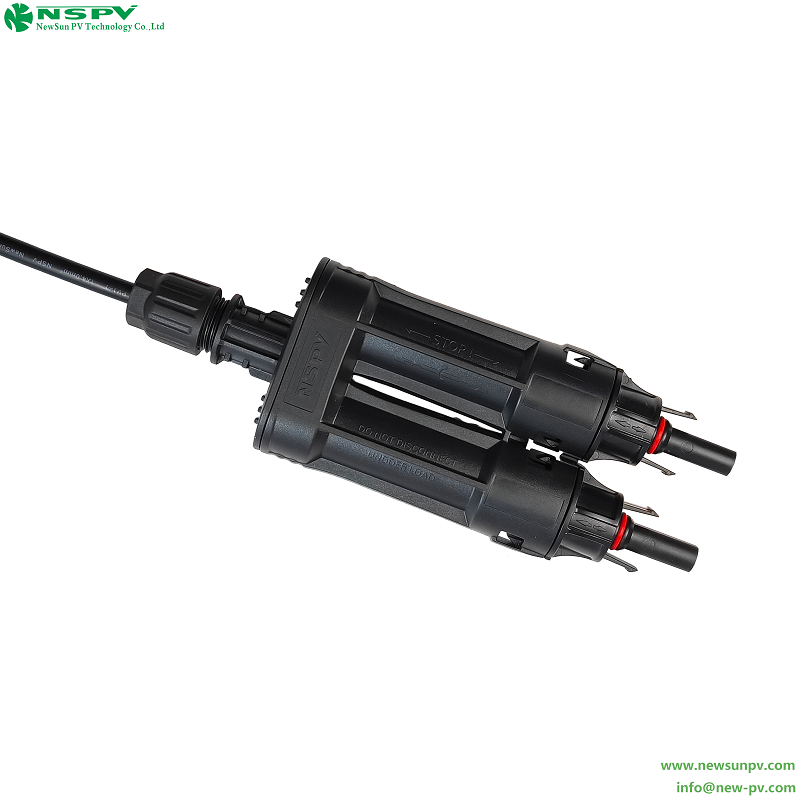

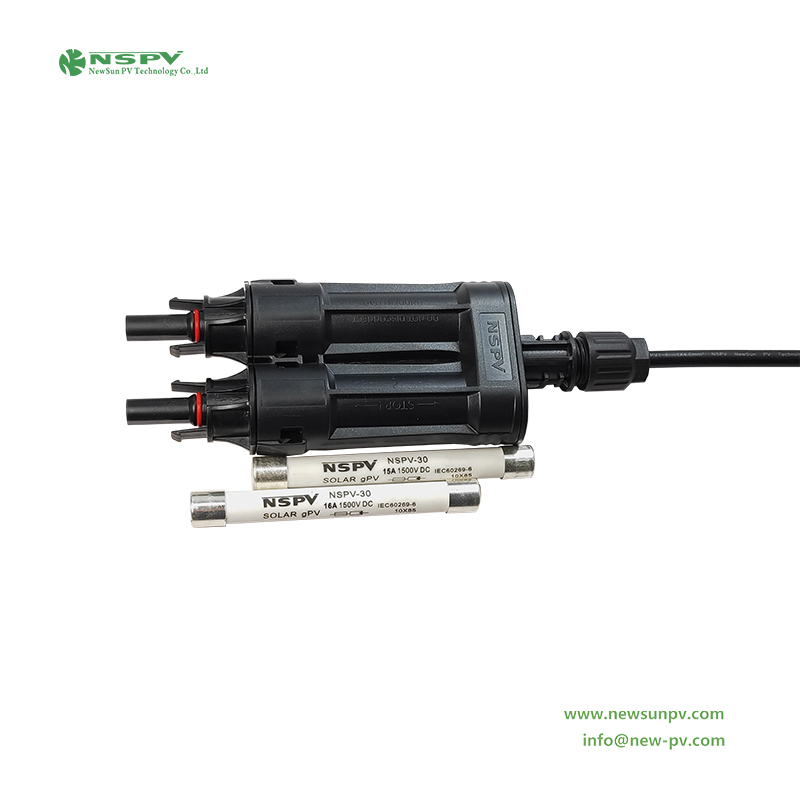

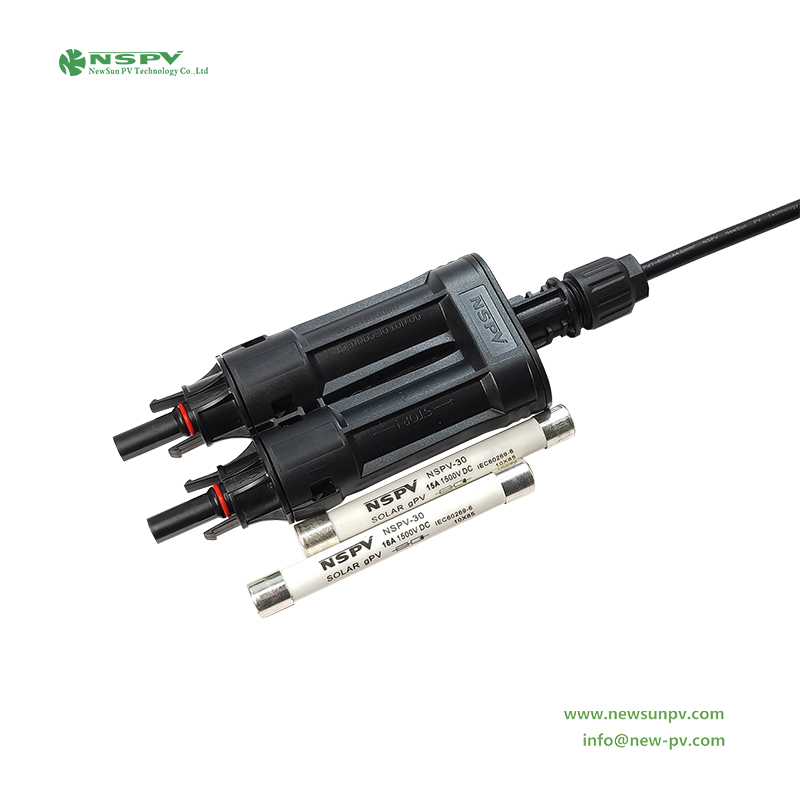

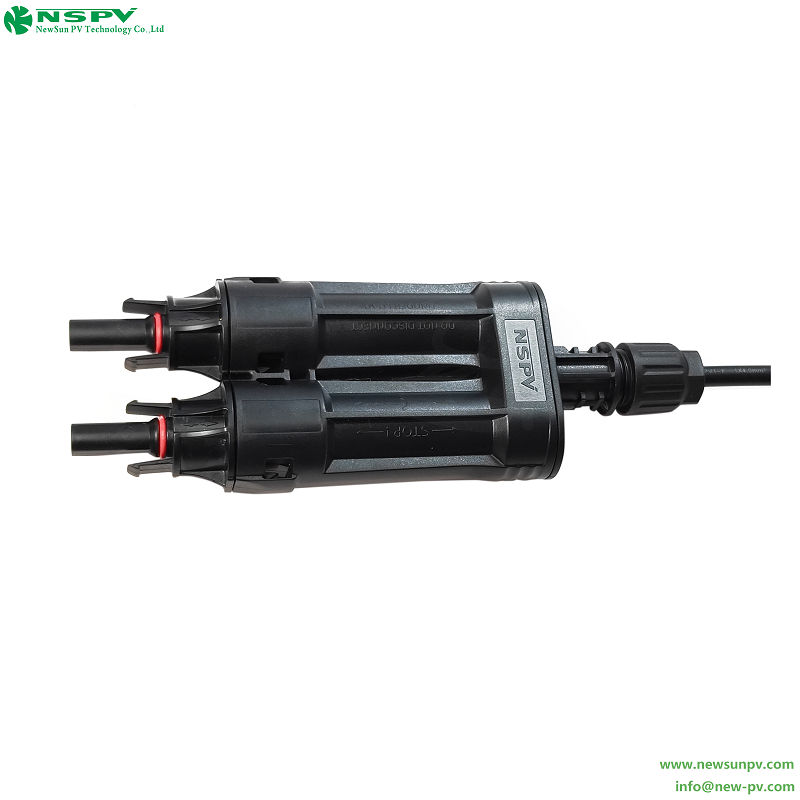

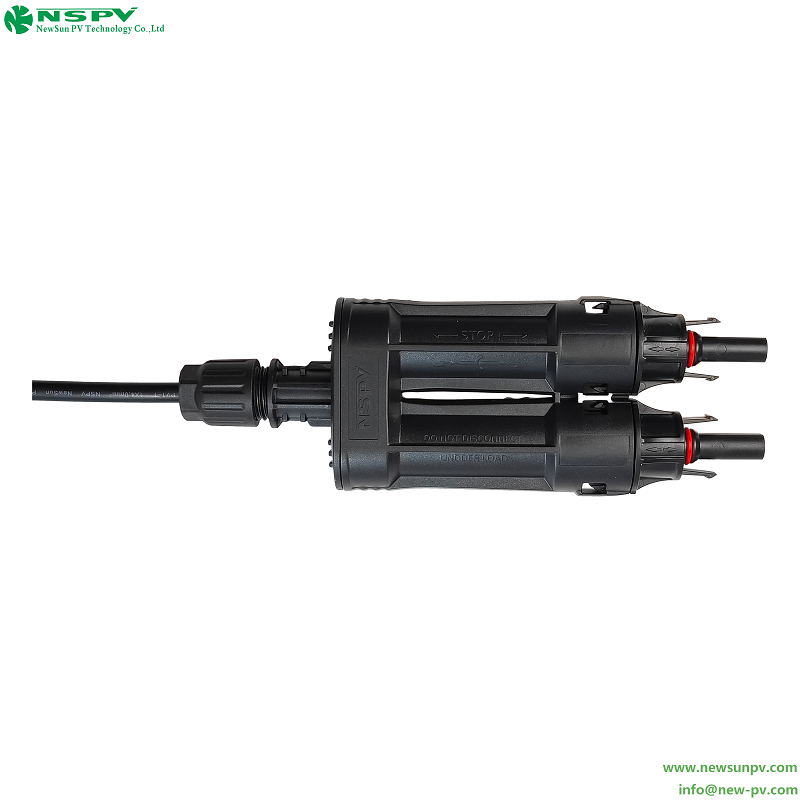

PV4.0 2 to 1 Solar Branch Inline Fuse Connector

Insulation material:PPE/PA

Rated current(Without fuse):Max. Input:30A
 Max. Output:60A

Rated voltage:1500VDC

Test voltage:8kV

Typical contact resistance:0.25m

Rated Impulse voltage:16kV

Contact material:Copper, Tin plated

Degree of protection:IP68

Safety degree:II

Overvoltage category/Pollution degree:CATIII/2

Flame class:UL94-V0

Ambient temperature range:-40+85(IEC)

Suitable cable cross sections:4-10sqmm

Upper limiting temperature:110(IEC)

Fuse specifications:1A-50A

Regulatory approval:TUV/CE(EN60269/EN62208)



Exceptional Water and Flame Resistance

Engineered for demanding environments, these connectors feature an IP68 waterproof rating, ensuring reliable performance during prolonged exposure to water and dust. Their UL94-V0 flame class, together with UV-resistant construction, provides increased safety and durability, making them ideal for a variety of outdoor solar applications.


Versatile and Robust Design for Solar Systems

Their 2 Female to 1 Male Y-branch design facilitates easy system expansion or parallel panel connections. Supporting multiple cable sizes and withstanding up to 1000V DC, these connectors are compatible with standard MC4 setups, and their preassembled, plug-and-play format enables straightforward installation for distributors, suppliers, and end users alike.

FAQ's of TUV Certified IP68 Waterproof Solar Branch Fuse Connectors 2 Female 1 Cable Type:


Q: How are TUV Certified IP68 Waterproof Solar Branch Fuse Connectors installed?

A: These connectors are designed for plug-and-play installation, requiring no special tools. The snap-in safety locking mechanism ensures secure, reliable connections, and the MC4 compatibility allows straightforward integration into existing photovoltaic systems.

Q: What wire sizes can these branch fuse connectors accommodate?

A: They support wire sizes of 2.5mm2, 4mm2, and 6mm2 (equivalent to 14AWG/12AWG/10AWG), and are compatible with cable diameters from 4mm to 8mm, providing flexibility for many solar setups.

Q: When should I use a solar branch fuse connector in my system?

A: Use these connectors when you need to safely parallel multiple solar panels and ensure each branch is fused for protection. They are ideal for installations requiring enhanced fault isolation and system safety.

Q: Where can these connectors be deployed?

A: These connectors are suitable for outdoor and indoor solar installations, including residential, commercial, and industrial photovoltaic systems, thanks to their IP68 waterproof and UV-resistant design.

Q: What benefits do these IP68 branch fuse connectors provide?

A: They offer high electrical efficiency with minimal power loss, superior weather protection, integrated fuse for circuit safety, quick installation, and compatibility with a wide range of solar cables and panels.

Q: How does the inline fuse enhance solar system protection?

A: The inline fuse automatically disconnects a faulty branch if excessive current is detected, protecting the rest of the system from electrical damage and reducing maintenance needs.

Q: What is the process for maintaining these connectors?

A: Maintenance is minimal due to their robust construction. Periodically check connections for tightness and ensure no debris or water intrusion, especially in harsh environments; otherwise, they require little attention after installation.
