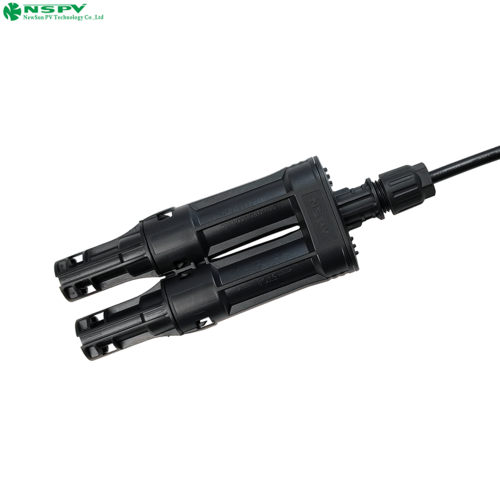

TUV Certified Solar Branch Fuse Connectors 1500VDC Waterproof PV Inline Fuse Connectors 2 Male 1

8.5 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

TUV Certified Solar Branch Fuse Connectors 1500VDC Waterproof PV Inline Fuse Connectors 2 Male 1 Price And Quantity

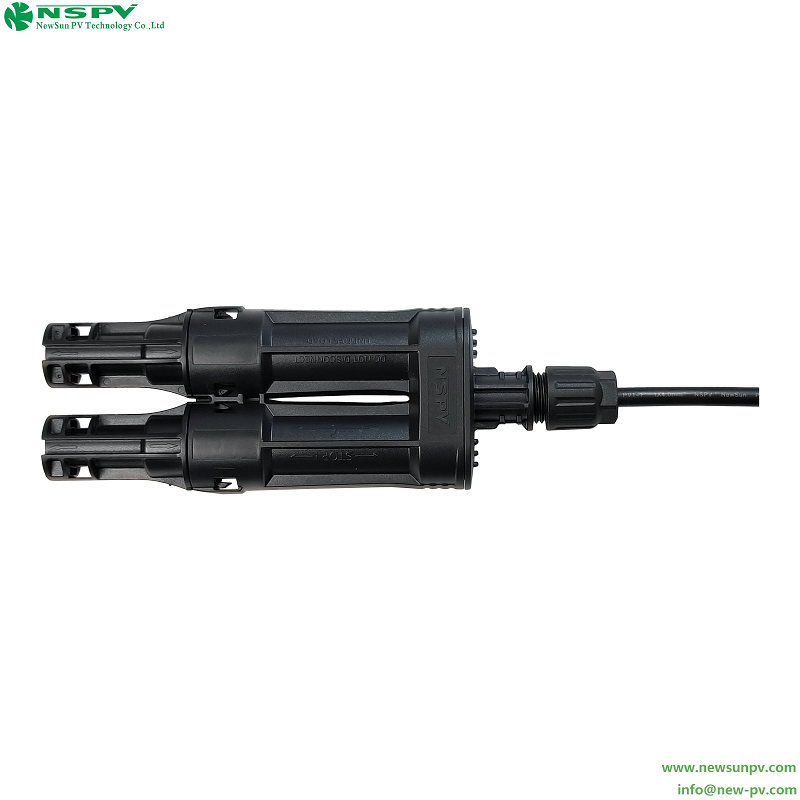

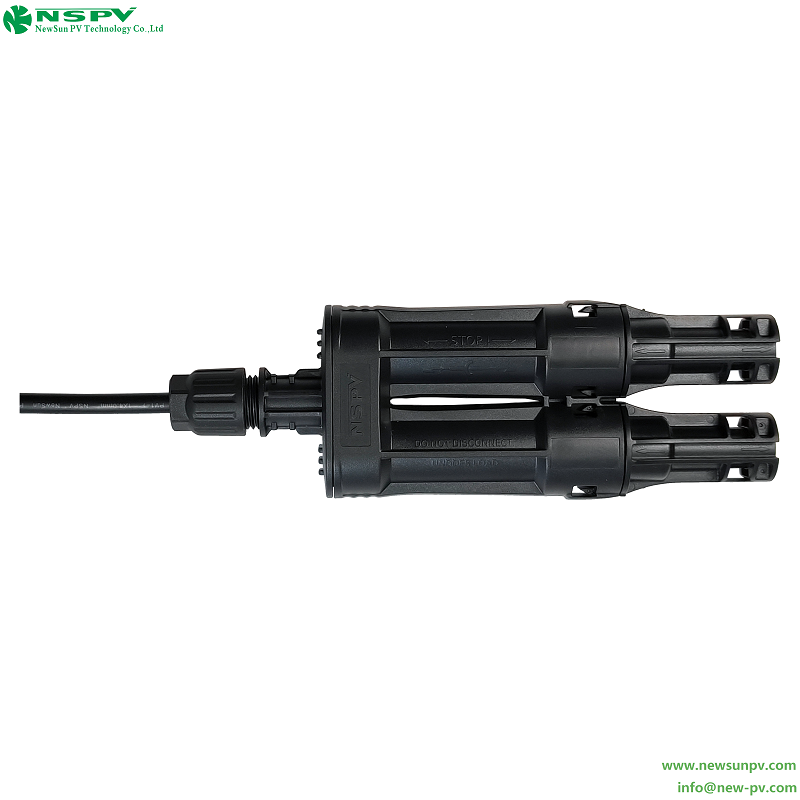

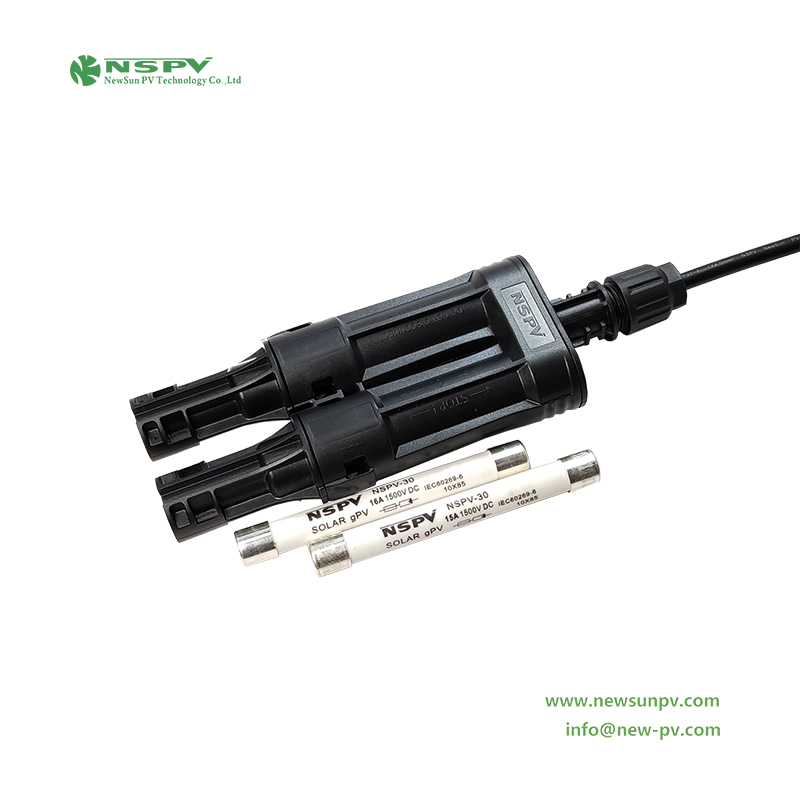

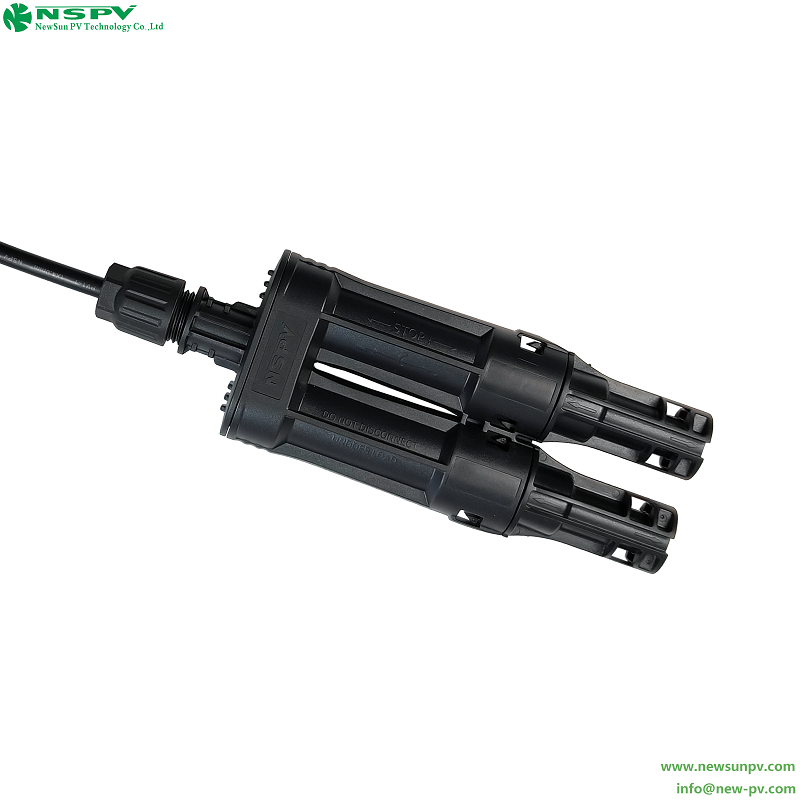

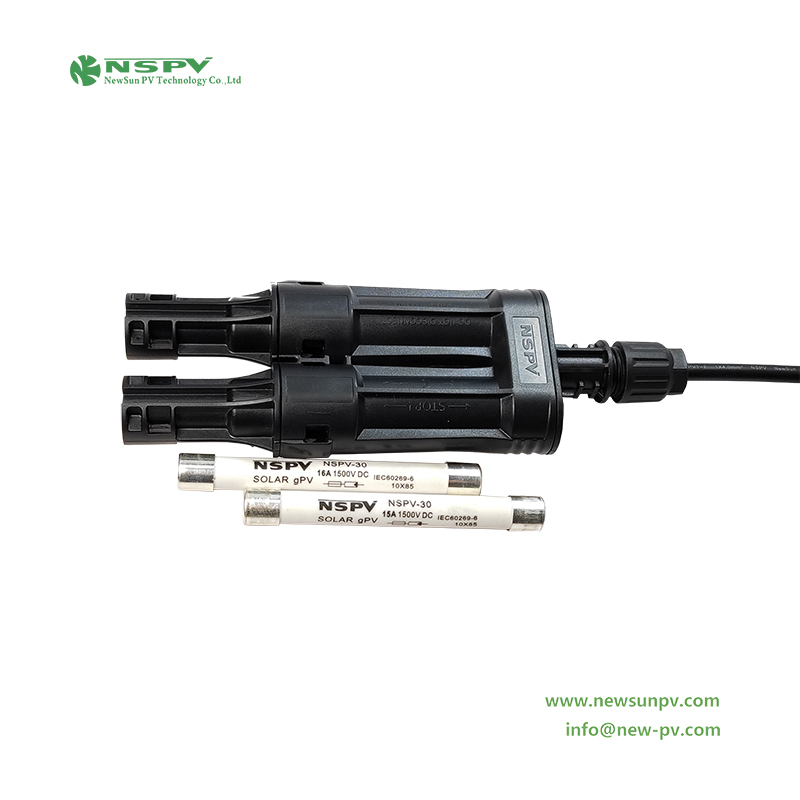

PV4.0 2 to 1 Solar Branch Inline Fuse Connector

Insulation material:PPE/PA

Rated current(Without fuse):Max. Input:30A
Max. Output:60A

Rated voltage:1500VDC

Test voltage:8kV

Typical contact resistance:0.25m

Rated Impulse voltage:16kV

Contact material:Copper, Tin plated

Degree of protection:IP68

Safety degree:II

Overvoltage category/Pollution degree:CATIII/2

Flame class:UL94-V0

Ambient temperature range:-40+85(IEC)

Suitable cable cross sections:4-10sqmm

Upper limiting temperature:110(IEC)

Fuse specifications:1A-50A

Regulatory approval:TUV/CE(EN60269/EN62208)
