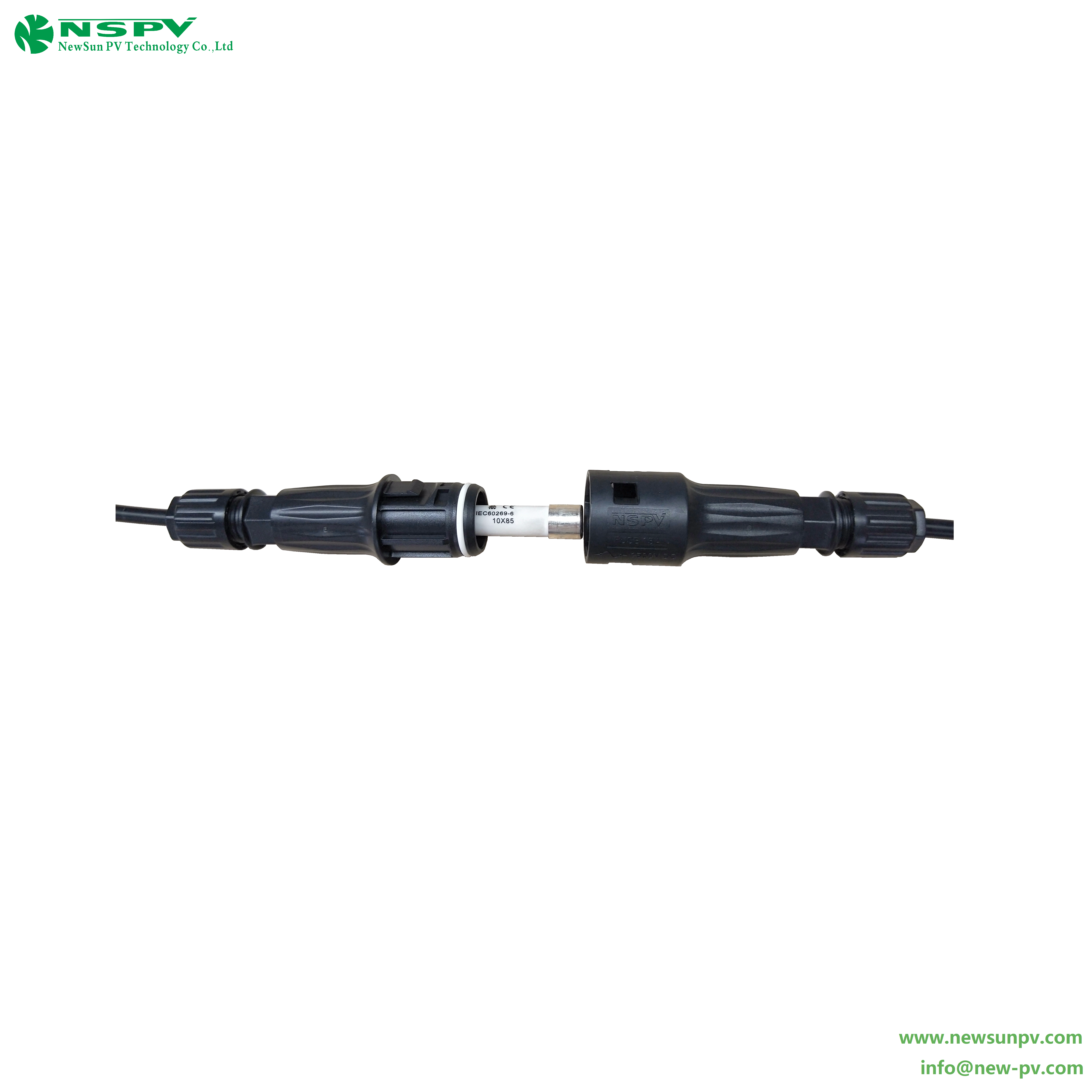

TUV standard detachable fuse connector IP67 solar PV4.0 solar Fuse connector for solar system 1500VDC
Product Code : 4F2-15
Brand Name : NSPV
Price And Quantity
- Minimum Order Quantity
- 100 Piece
- Price
- 3.5-3.8 USD ($)/Piece
- Price Range
- 3.80 - 3.50 USD ($)/Piece
Product Description
| 1500VDC PV 4.0 Fuse Connector | |||||||||
| Product Specifications: | |||||||||
| Insulation material | PPE/PA | Fuse Specification | 1A-30A | ||||||
| Rated current(Without fuse) | 30A | Safety degree | II | ||||||
| Rated voltage | 1500VDC | Flame class | UL94-V0 | ||||||
| Maximum voltage(With fuse) | 1575V | Ambient temperature range | -40℃…+85℃(IEC)* | ||||||
| Contact resistance | ≤0.25 mΩ | Upper limiting temperature | 110℃(IEC) | ||||||
| Contact material | Copper,Tin plated | Suitable cable cross sections | 2.5~10mm2 /14~8AWG (4F1-4F3) | ||||||
| Degree of protection | IP68(1m,1H) | Suitable for fuse size(mm) | 10*85 or 10/14*85 | ||||||
| Rated Impulse voltage | 12KV | Regulatory approval | TUV,CE | ||||||
