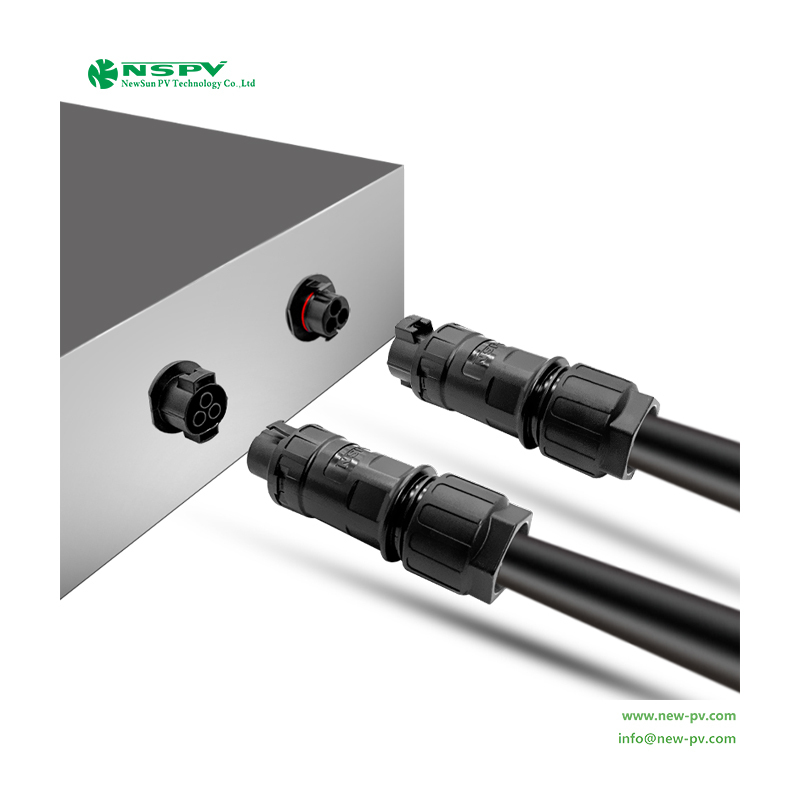

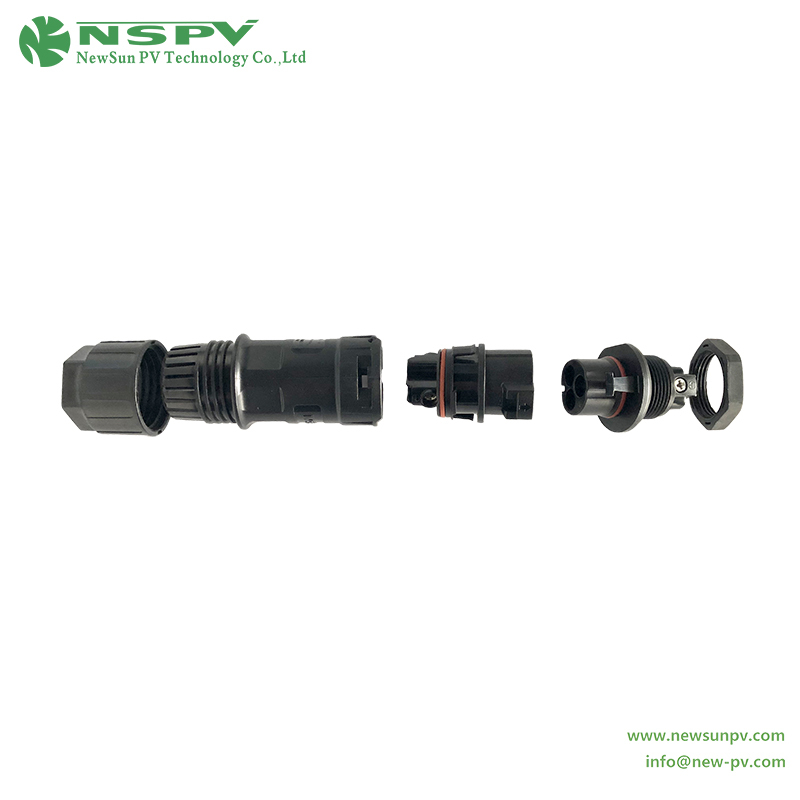

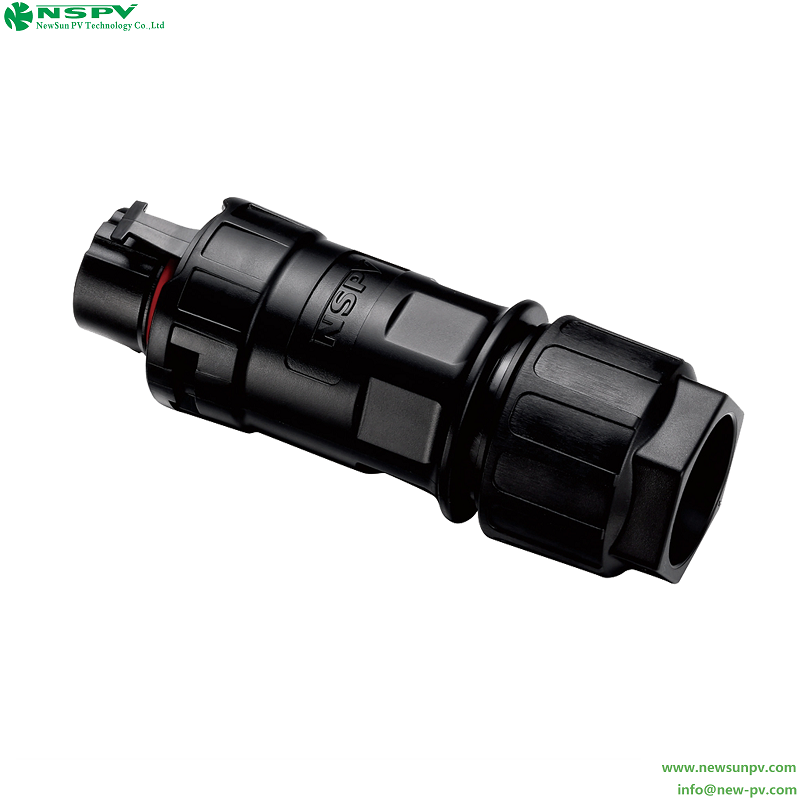

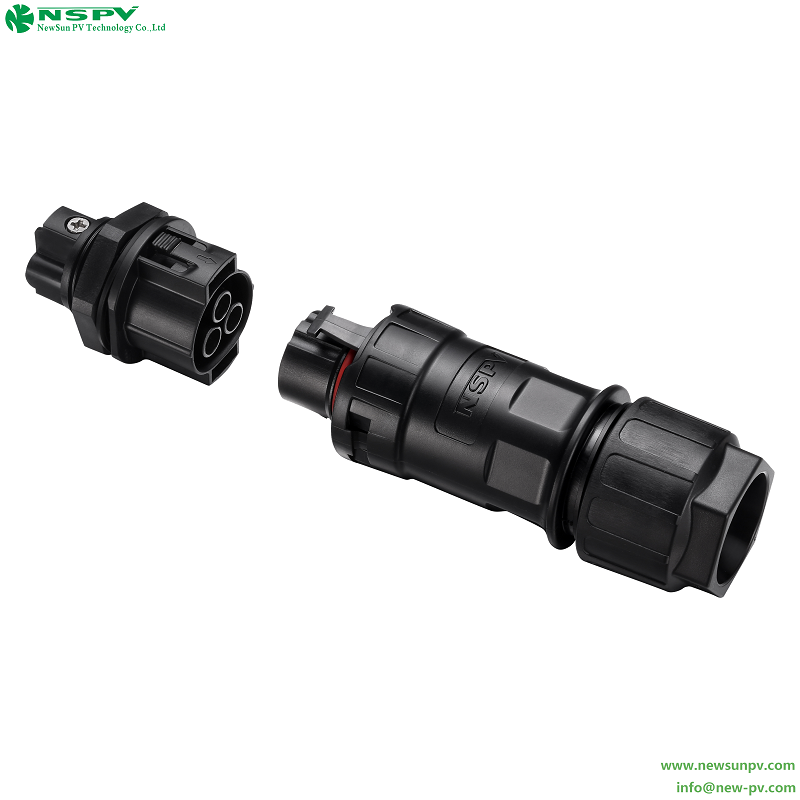

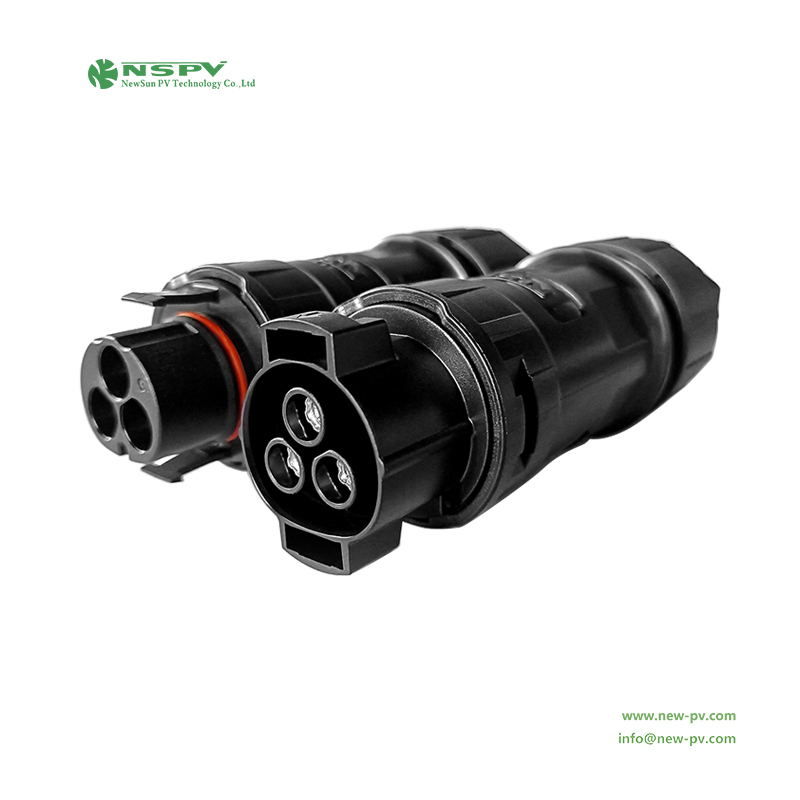

3 Pin Solar AC Connectors 500V Max.50A IP68 Waterproof AC Wire Coupler Cable Male Type

2.58 USD ($)/Piece
Get a Price/Quote

Product Details:

  • Input Voltage 500V Max
  • Features IP68 Waterproof, UV Resistant, Flame Retardant, Quick Connect/Disconnect, Secure Locking
  • Maintenance Type Low Maintenance
  • Efficiency High Conductivity, Low Loss
  • Product Type 3 Pin Solar AC Connector (Male Type)
  • Material PPE/PA(Insulation material)
  • Power Up to 50A
  • Click to view more
Request To Call Back Send Inquiry
X

3 Pin Solar AC Connectors 500V Max.50A IP68 Waterproof AC Wire Coupler Cable Male Type Price And Quantity

  • 2.58 USD ($)/Piece
  • 500 Piece

3 Pin Solar AC Connectors 500V Max.50A IP68 Waterproof AC Wire Coupler Cable Male Type Product Specifications

  • Customizable / As per requirement
  • Low Maintenance
  • -40C to +85C
  • High Conductivity, Low Loss
  • 500V Max
  • Approx. 95mm x 27mm x 27mm
  • 500V
  • Waterproof AC Wire Coupler
  • Cable Mount, Field Installable
  • 3 Pin Solar AC Connector (Male Type)
  • IP68 Waterproof, UV Resistant, Flame Retardant, Quick Connect/Disconnect, Secure Locking
  • Up to 50A
  • 500V Max
  • Solar AC connections, Power distribution in photovoltaic systems
  • 500V
  • Approx. 50g
  • Standard (Typically fits 2.5mm2 to 6mm2 cable)
  • PPE/PA(Insulation material)
  • Black
  • Copper Alloy, Tin-Plated
  • IP68
  • Compatible with most solar AC cables
  • UL94-V0
  • >100 Mating Cycles
  • Max 50A
  • Screw Lock
  • 2.5mm2, 4mm2, 6mm2
  • Thermoplastic, UV Resistant
  • 0.5m

3 Pin Solar AC Connectors 500V Max.50A IP68 Waterproof AC Wire Coupler Cable Male Type Trade Information

  • EXW
  • 10000 Piece Per Day
  • 12 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • TUV

Product Description

AC3P Connector II
  • Insulation material:PPE/PA;Safety degree:II;
  • Rated current:Max.65A(10sqmm);Flame class:UL94-V0;
  • Rated voltage:500V AC;Suitable cable OD Max.:21mm;
  • Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
  • Typical contact resistance:less than 0.25 mohm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
  • Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
  • Degree of protection:IP68;Insulation resistance:more than 1000 Mohm;
  • Contraction diameter/number of contact:4.0x3;Standard:EN 61984.


Superior Outdoor Durability

Designed to thrive in challenging environments, this connector features an IP68 waterproof rating, UV-resistant thermoplastic housing, and flame-retardant properties (UL94-V0). These attributes ensure secure and long-lasting operation in outdoor solar power installations, protecting your power connections from moisture, sunlight, and high temperatures.


Versatile and Reliable Performance

With a maximum current rating of 50A and voltage support up to 500V, these connectors accommodate most solar AC cables (sizes 2.5mm2 to 6mm2). The tin-plated copper alloy contacts assure efficient current transmission with minimal resistance, making these connectors suitable for photovoltaic power distribution and various high-demand applications.


Effortless Installation and Maintenance

The field-installable, cable-mount design includes a user-friendly screw-lock mechanism, enabling quick, secure connections and easy disconnection for inspections or upgrades. The low-maintenance architecture, combined with over 100 mating cycles of mechanical life, provides confidence for installers and end-users alike.

FAQ's of 3 Pin Solar AC Connectors 500V Max.50A IP68 Waterproof AC Wire Coupler Cable Male Type:


Q: How do I install the 3 Pin Solar AC Connector for my photovoltaic system?

A: Installation involves stripping the cable, inserting it into the connector, and securing it with the screw lock mechanism. The connector's cable mount design fits standard 2.5mm2, 4mm2, or 6mm2 solar AC cables, making it suitable for field installations in most solar power setups.

Q: What is the waterproof and UV resistance level of this connector?

A: This connector meets IP68 waterproof standards, offering complete protection against dust and water intrusion. Its UV-resistant thermoplastic housing is designed to endure prolonged sunlight exposure, making it ideal for outdoor solar applications.

Q: When should I use this AC wire coupler in my project?

A: Use this 3 Pin AC Wire Coupler when you require a secure, high-current (up to 50A) AC connection for solar power distribution, especially in environments demanding waterproof, flame-retardant, and UV-resistant solutions.

Q: Where can I use the 3 Pin Solar AC Connector?

A: The connector is primarily designed for solar AC connections and power distribution in photovoltaic systems, but it also suits any outdoor or industrial environment where reliable, weatherproof AC cabling is needed.

Q: What are the benefits of using a screw lock connection mode?

A: The screw lock mechanism ensures a secure and vibration-resistant connection, reducing the risk of accidental disconnection. It also supports repeated connections-over 100 mating cycles-enabling easy system maintenance.

Q: How do I know if my cable is compatible?

A: This connector fits standard AC cables with cross-sectional sizes of 2.5mm2, 4mm2, or 6mm2. Always confirm the voltage (up to 500V) and current requirements (up to 50A) of your installation before use.

Q: What makes this connector low maintenance?

A: Featuring high-quality contact materials, robust insulation, and a simple locking system, this connector requires minimal upkeep even in harsh outdoor conditions, allowing for long-term reliable operation in solar power systems.
