Waterproof 500V Solar AC Connectors Panel Male AC Coupler For Outdoor Inverter Connections

Waterproof 500V Solar AC Connectors Panel Male AC Coupler For Outdoor Inverter Connections

8.5 USD ($)/Piece

Get a Price/Quote

Product Details:

Material PPE/PA(Insulation material)
Operating Temperature -40...+85 Celsius (oC)
Output Voltage 500 Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Waterproof 500V Solar AC Connectors Panel Male AC Coupler For Outdoor Inverter Connections Price And Quantity

Price Range 4.36 - 5.36 USD ($)/Piece
Price 8.5 USD ($)/Piece
Minimum Order Quantity 500 Piece

Waterproof 500V Solar AC Connectors Panel Male AC Coupler For Outdoor Inverter Connections Product Specifications

Output Voltage 500 Volt (V)
Material PPE/PA(Insulation material)
Operating Temperature -40...+85 Celsius (oC)

Waterproof 500V Solar AC Connectors Panel Male AC Coupler For Outdoor Inverter Connections Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Day
Delivery Time 12 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

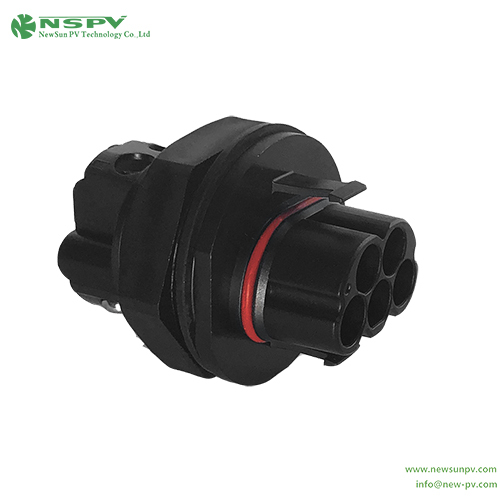

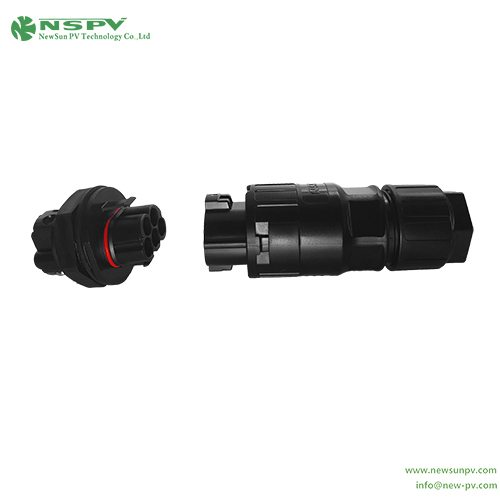

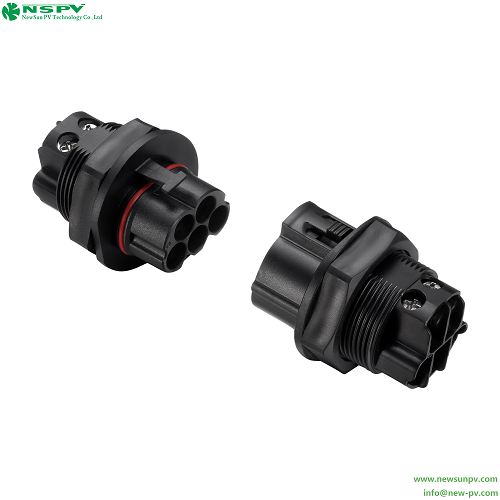

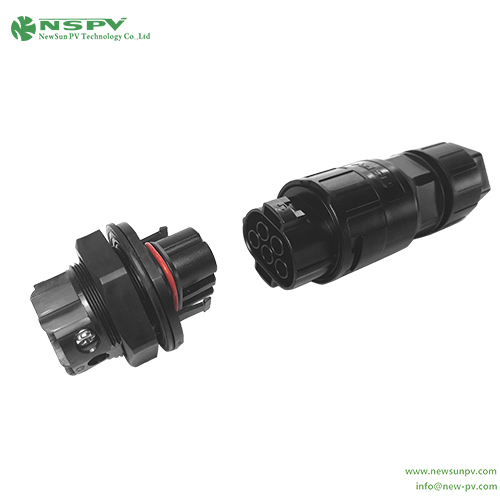

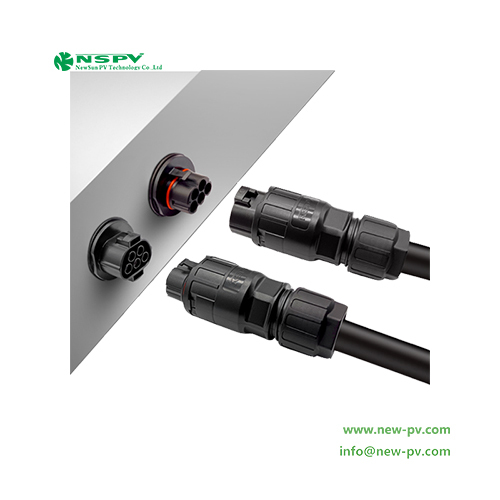

AC5P Connector II

Insulation material:PPE/PA;Safety degree:II;
Rated current:Max.65A(10sqmm);Flame class:UL94-V0;
Rated voltage:500V AC;Suitable cable OD Max.:21mm;
Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
Typical contact resistance:less than 0.25 mohm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
Degree of protection:IP68;Insulation resistance:more than 1000 Mohm;
Contraction diameter/number of contact:4.0x5;Standard:EN 61984.
