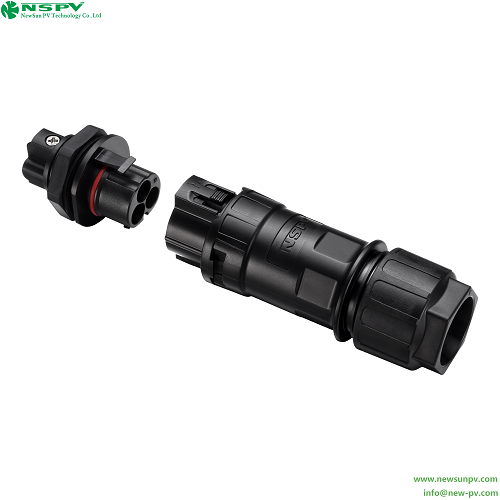

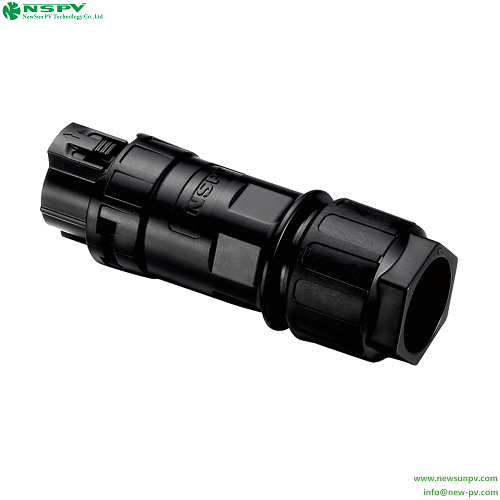

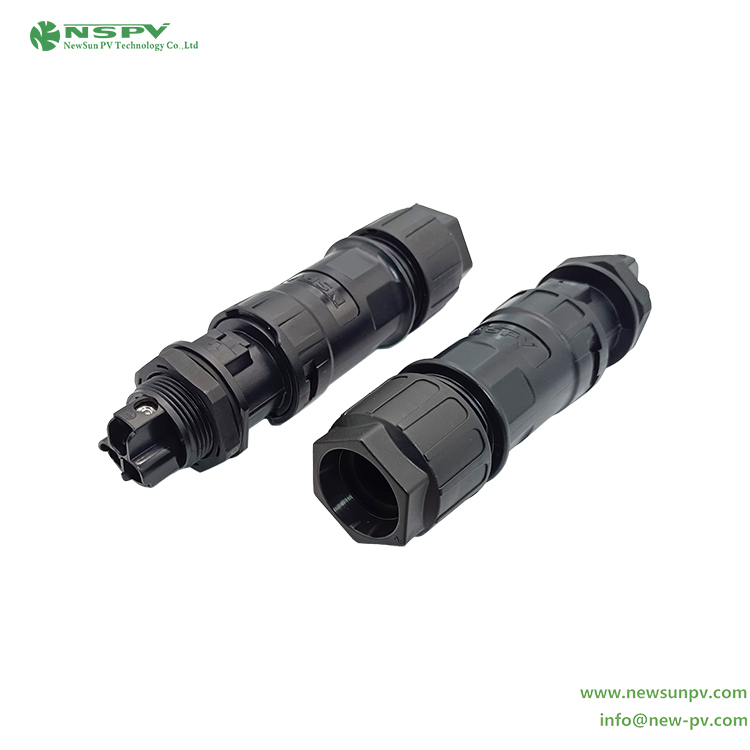

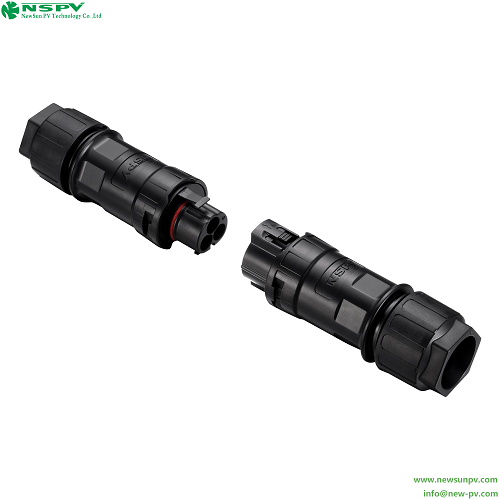

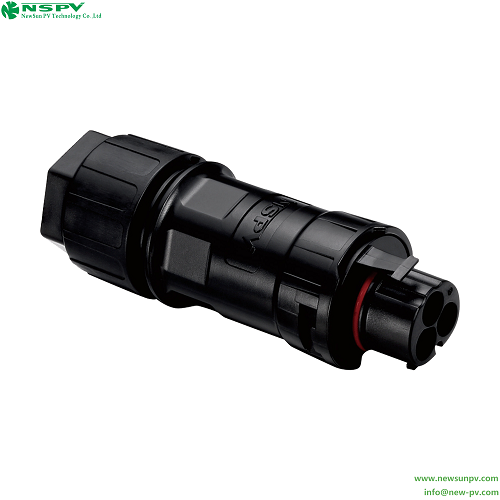

3P Solar AC Connectors With TUV Certificate 500V 50A Solar Inverter AC Wire Connectors AC Coupler

3P Solar AC Connectors With TUV Certificate 500V 50A Solar Inverter AC Wire Connectors AC Coupler

Name: 3P Solar AC Connectors With TUV Certificate 500V 50A Solar Inverter AC Wire Connectors AC Coupler
Brand: NEWSUN PV TECHNOLOGY CO., LTD.
Price: 8.73 USD
Availability: InStock

8.73 USD ($)/Piece

Get a Price/Quote

Product Details:

Features Waterproof, UV Resistant, Flame Retardant, High Safety
Input Voltage 500V AC
Efficiency High Transfer Efficiency
Maintenance Type Low Maintenance
Product Type 3P Solar AC Connector
Material PPE/PA(Insulation material)
Power 50A
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3P Solar AC Connectors With TUV Certificate 500V 50A Solar Inverter AC Wire Connectors AC Coupler Price And Quantity

Minimum Order Quantity 1000 Piece
Price 8.73 USD ($)/Piece

Rated Current 50A
Connection Type Plug and Socket/3 Pin
Flame Class UL94-V0
Contact Material Copper, Tin-plated
Locking System Secure Snap-in Lock
Compatible Cable Size 2.5/4/6mm
Resistance to UV Yes
Insulation Resistance >1000M
Mechanical Life >2000 mating cycles
Protection Class IP67
RoHS Compliance Yes
Ambient Humidity 95%RH

3P Solar AC Connectors With TUV Certificate 500V 50A Solar Inverter AC Wire Connectors AC Coupler Product Specifications

Features Waterproof, UV Resistant, Flame Retardant, High Safety
Product Type 3P Solar AC Connector
Operating Temperature -40-+85 Celsius (oC)
Type Of Technology Solar AC Coupler
Size Standard/Compatible with most solar inverters
Dimension (L*W*H) Refer to manufacturer specifications
Input Voltage 500V AC
Material PPE/PA(Insulation material)

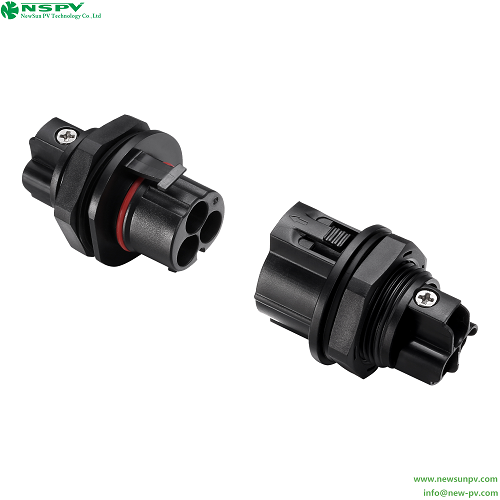

Installation Type Plug-in/Panel Mount
Power 50A
Max System Voltage 500V
Switch Mode AC
Efficiency High Transfer Efficiency
Cable Length Customizable/As per requirement
Color Black
Output Voltage 500 Volt (V)
Application Solar inverter AC wire connection
Weight Approximately 120g
Max Voltage 500V
Maintenance Type Low Maintenance

Rated Current 50A
Connection Type Plug and Socket/3 Pin
Flame Class UL94-V0
Contact Material Copper, Tin-plated
Locking System Secure Snap-in Lock
Compatible Cable Size 2.5/4/6mm
Resistance to UV Yes
Insulation Resistance >1000M
Mechanical Life >2000 mating cycles
Protection Class IP67
RoHS Compliance Yes
Ambient Humidity 95%RH

3P Solar AC Connectors With TUV Certificate 500V 50A Solar Inverter AC Wire Connectors AC Coupler Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Day
Delivery Time 12 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing or according to customer's request.
Main Domestic Market All India
Certifications TUV

Product Description

AC3P Connector II

Insulation material: PPE/PA; Safety degree: II;
Rated current: Max.65A(10sqmm); Flame class: UL94-V0;
Rated voltage: 500V AC; Suitable cable OD Max.: 21mm;
Test voltage: 4kV; Ambient temperature range: -40-+85(IEC);
Typical contact resistance: less than 0.25 mohm; Suitable cable cross sections: 2.5-6mm2/14-10AWG;
Contact material: Copper,Tin plated; Connecting system: Screw/crimping connection;
Degree of protection: IP68; Insulation resistance: more than 1000 Mohm;
Contraction diameter/number of contact: 4.0x3; Standard: EN 61984.

High-Performance Design for Demanding Solar Applications

These 3P Solar AC Connectors provide robust electrical performance with an operating voltage of up to 500V and a current rating of 50A. Built for durability and reliability, they feature a superior snap-in locking mechanism, ensuring secure connections essential for solar inverter systems. With their flame-retardant insulation and UV resistance, these connectors stand up to challenging outdoor conditions.

Reliable Safety and Maintenance Simplified

Safety is paramount with a protection class of IP67, making the connectors completely waterproof and dustproof. The connectors materials meet UL94-V0 flame retardance and RoHS standards, ensuring eco-friendly deployment without compromising on quality. The low-maintenance and high mechanical life of over 2,000 cycles means reduced downtime and stable performance in long-term solar applications.

FAQs of 3P Solar AC Connectors With TUV Certificate 500V 50A Solar Inverter AC Wire Connectors AC Coupler:

Q: How do I install the 3P Solar AC Connectors for my solar inverter system?

A: To install these connectors, simply match the plug and socket according to the 3-pin configuration, insert the compatible cable (2.5/4/6mm), and secure the connection using the snap-in locking system. These connectors can be used in plug-in or panel mount setups, and detailed manufacturer instructions should be followed for optimal performance.

Q: What makes these AC connectors suitable for outdoor solar applications?

A: The connectors are rated IP67 for complete protection against water and dust, and their materials are UV resistant and flame retardant (UL94-V0). This combination ensures they withstand harsh outdoor climates and deliver reliable performance over time.

Q: When should I consider using connectors with TUV certification for my solar system?

A: TUV-certified connectors should be selected for installations requiring verified safety, performance, and compliance with international standards. Using certified components is especially critical when working with high voltages and outdoor systems, such as solar inverters.

Q: Where can these solar AC connectors be used besides inverter connections?

A: These connectors are also suitable for other high-voltage AC connections in solar PV systems, string boxes, distribution panels, and any equipment needing a reliable, weather-resistant AC coupler in outdoor or industrial environments.

Q: What is the process for maintaining these connectors in a solar power system?

A: Maintenance involves periodic inspection for wear or damage, cleaning connectors to remove dust or debris, and ensuring the snap-in locks are secure. Given their high mechanical life and robust design, they require minimal regular upkeep.

Q: What are the key benefits of using these 3P Solar AC Wire Connectors?

A: Key benefits include enhanced safety due to IP67 waterproof and UL94-V0 flame-retardant features, reliable electrical conductivity with tin-plated copper contacts, long durability over 2,000 cycles, and flexibility with customizable cable lengths, making them ideal for diverse solar power applications.
