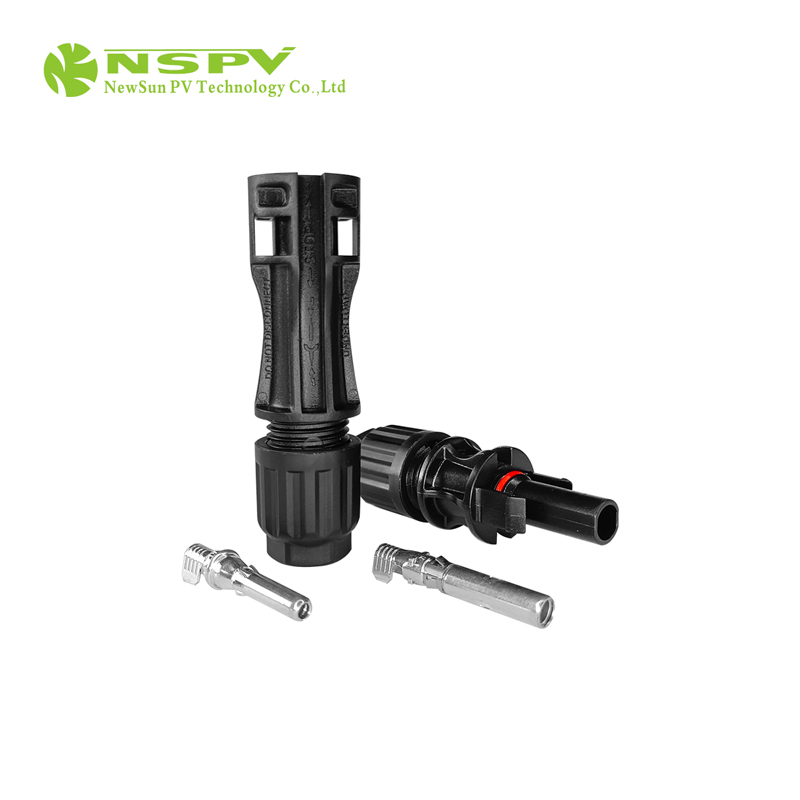

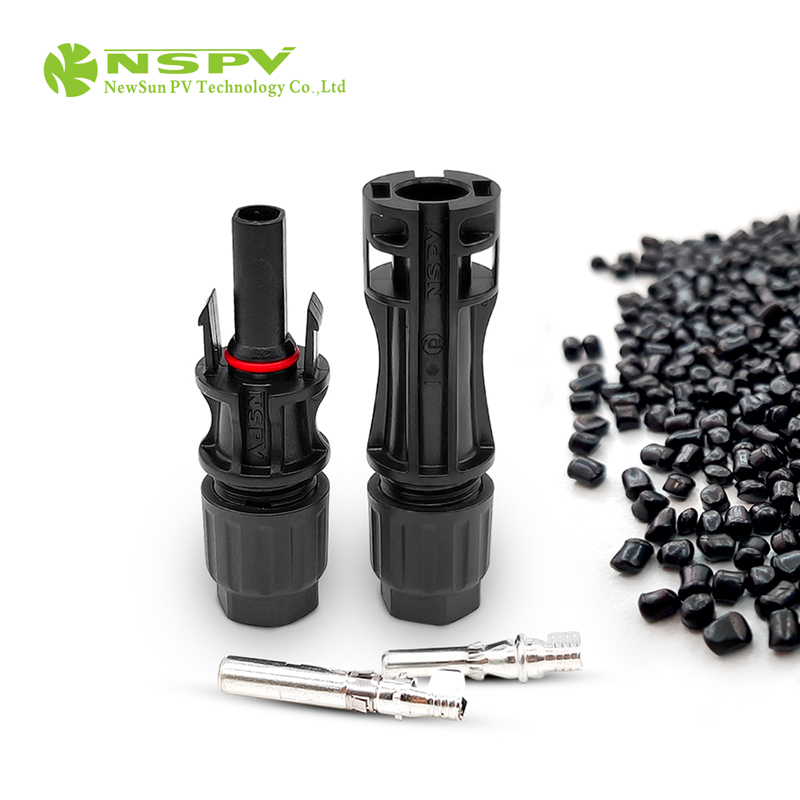

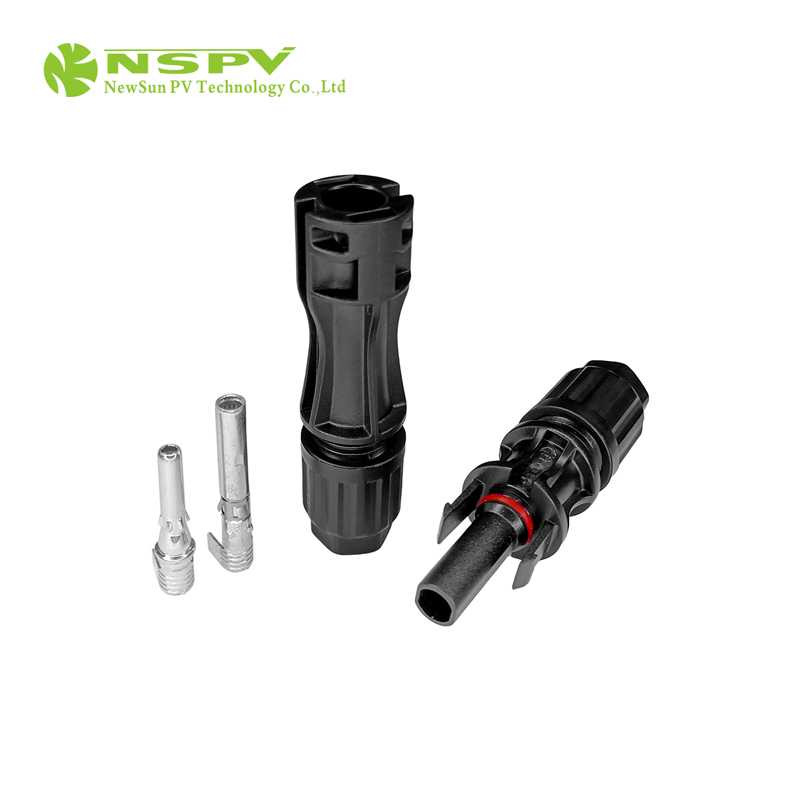

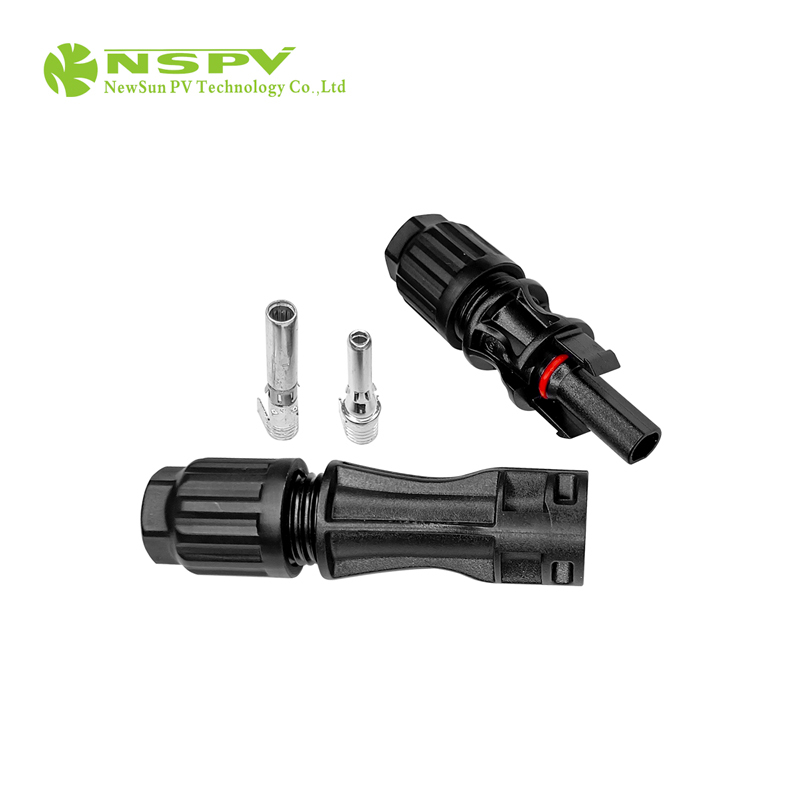

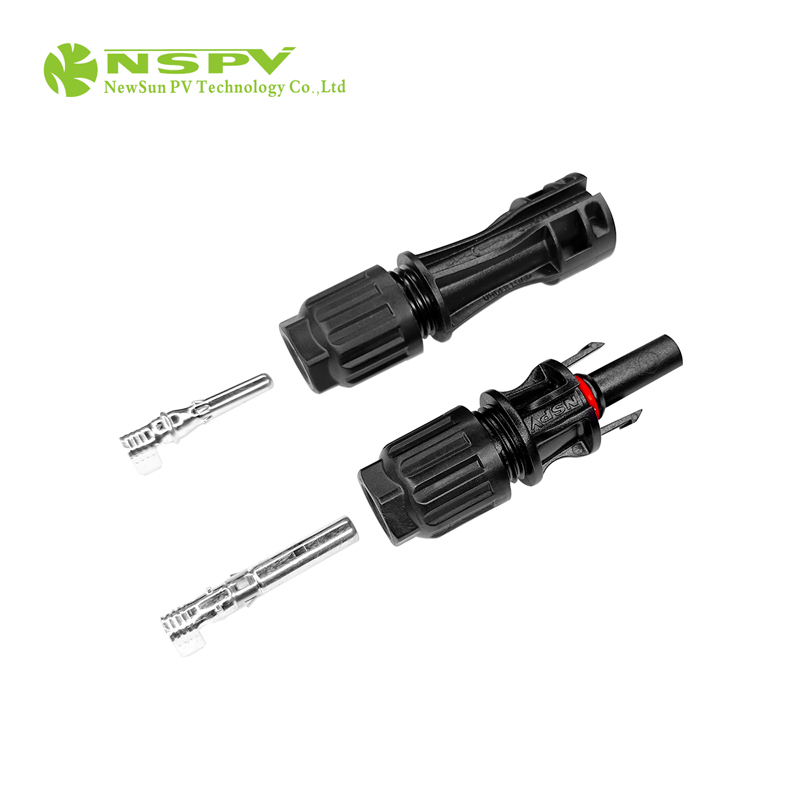

PV Solar Connector 1500VDC 60A IP68 Waterproof Cable Connector

0.85 USD ($)/Set
Get a Price/Quote

Product Details:

  • Maintenance Type No Maintenance, Weatherproof
  • Efficiency Low contact resistance, <0.5m
  • Features Waterproof (IP68), UV Resistant, Flame Retardant, High Current Capacity, Reliable Locking Mechanism
  • Input Voltage 1500V DC (Max)
  • Product Type PV Solar Connector
  • Material PPO (Polyphenylene Oxide), Copper (Tin-plated)
  • Power Up to 60A
  • Click to view more
Request To Call Back Send Inquiry
X

PV Solar Connector 1500VDC 60A IP68 Waterproof Cable Connector Price And Quantity

  • 500 Set
  • 0.85 USD ($)/Set

PV Solar Connector 1500VDC 60A IP68 Waterproof Cable Connector Product Specifications

  • Field Installable, Crimp connection
  • Low contact resistance, <0.5m
  • No Maintenance, Weatherproof
  • Approx. 32g (pair)
  • Standard compatible with MC4 type
  • Not specified (compatible with 2.5mm2, 4mm2, 6mm2 cables)
  • Solar Panel Cable Connection
  • Waterproof (IP68), UV Resistant, Flame Retardant, High Current Capacity, Reliable Locking Mechanism
  • Approx. 58mm x 18mm (each connector)
  • PPO (Polyphenylene Oxide), Copper (Tin-plated)
  • Crimp and Snap-in Locking PV Connector
  • PV Solar Connector
  • 1500V DC
  • Black
  • -40C to +85C
  • 1500V DC (Max)
  • 1500V DC
  • 1500V DC (Max)
  • Up to 60A
  • MC4 Compatible
  • 2
  • 4mm to 7mm
  • > 50 mating/unmating cycles
  • 0.5 m
  • IP68
  • 8kV (50Hz, 1min)
  • 60A Max
  • Snap-in with Lock Pin
  • UL94-V0
  • Class II
  • Tin-plated Copper

PV Solar Connector 1500VDC 60A IP68 Waterproof Cable Connector Trade Information

  • Telegraphic Transfer (T/T)
  • 100000 Set Per Day
  • 12 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • TUV

Product Description

1500VDC PV4.0 Solar connector with 4/6sqmm cable

Feature: Suitable for 4/6sqmm cable; Matching MC 4/EVO connector; TUV certified; IP68; High voltage; High current.

Solar 1500VDC 4/6sqmm cable connector:
1500VDC, 60A; Low contact resistance; Suitable for 4/6sqmm & 10/12AWG cable.

Product Specifications
Insulation material PPE/PA Safety degree II
Rated voltage 1500VDC Flame class UL94-V0
Rated impulse voltage 12KV Installation type Outdoor, UV resistant(F1)
Test voltage 8KV(50Hz,1min) Ambient temperature range -40...+85(IEC)
Contact resistance 0.25m Suitable cable cross sections 1.5-10mm/16-8AWG
Degree of protection IP68(1m,1H) Nut cap locking force 1.5-1.8Nm
Overvoltage category/Pollution degree CATIII/2 Upper limiting temperature 110(IEC)
Regulatory approval TUV/CE(IEC62852:2014) Rated impulse voltage 16KV


Superior Weatherproof Protection

Engineered for harsh outdoor conditions, the PV Solar Connector boasts an IP68 waterproof rating and is UV resistant. Operating from -40C to +85C, it ensures long-term stability and safety, making it suitable for both residential and industrial solar applications regardless of location or weather.


Effortless and Secure Installation

With its snap-in lock pin and crimp connection technology, this connector simplifies both first-time setups and replacements. Designed for field installability, it accommodates standard MC4-compatible solar cables, streamlining the installation process for professionals and DIY users.


Reliable High-Current Performance

Capable of handling up to 60A of current and 1500V DC, this connector leverages low contact resistance (<0.5m) for maximized power transfer and efficiency. Its flame retardant and pollution-resistant construction further enhances operational safety and reliability for solar power installations.

FAQ's of PV Solar Connector 1500VDC 60A IP68 Waterproof Cable Connector:


Q: How do I install the PV Solar Connector 1500VDC 60A IP68 on my solar panel cables?

A: The PV Solar Connector is designed for field installation using a crimp and snap-in locking system. Simply strip the cable insulation, crimp the tin-plated copper contact onto your compatible cable (2.5mm2, 4mm2, or 6mm2), insert it into the connector housing, and secure it with the snap-in lock pin for a reliable and tool-friendly assembly.

Q: What types of cables are compatible with this solar connector?

A: This connector supports solar cables with outer diameters ranging from 4mm to 7mm and cross-sections of 2.5mm2, 4mm2, or 6mm2, making it suitable for most standard solar installation needs and MC4-compatible systems.

Q: When should I choose this connector over others for my solar installation?

A: Choose the PV Solar Connector 1500VDC 60A IP68 when you need a waterproof, flame-retardant, and UV-resistant connector that can handle up to 60A and 1500V DC, ensuring dependable performance in challenging outdoor environments.

Q: Where can I use this MC4 compatible connector?

A: This connector is suitable for use in home, commercial, and industrial solar power systems both indoors and outdoors, thanks to its high IP68 weatherproof rating and wide operating temperature range.

Q: What is the benefit of the low contact resistance in this connector?

A: With a contact resistance of less than 0.5m, the connector ensures minimal power loss during current transfer, which maximizes system efficiency and reduces heat build-up, contributing to a longer lifespan of your solar system.

Q: How many times can I mate and unmate these connectors without performance loss?

A: These connectors are tested for more than 50 mating/unmating cycles, allowing for maintenance or system adjustments with no significant decline in electrical or mechanical performance.

Q: What process should I follow to maintain these connectors?

A: The PV Solar Connector is designed to be maintenance-free due to its robust waterproof, UV resistant, and corrosion-resistant materials. However, regular visual inspection for physical damage is recommended for optimal safety.
