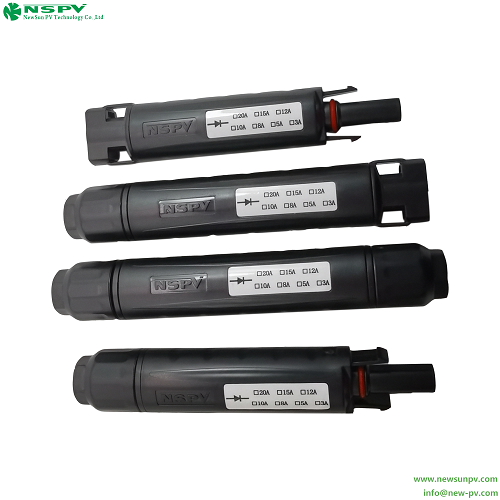

TUV Solar Diode Connetors IP67 Waterproof 1000VDC 10A PV4.0 Diode Connectors Solar Blocking Diode

TUV Solar Diode Connetors IP67 Waterproof 1000VDC 10A PV4.0 Diode Connectors Solar Blocking Diode

Name: TUV Solar Diode Connetors IP67 Waterproof 1000VDC 10A PV4.0 Diode Connectors Solar Blocking Diode
Brand: NEWSUN PV TECHNOLOGY CO., LTD.
Price: 3.12 USD
Availability: InStock

3.12 USD ($)/Piece

Get a Price/Quote

Product Details:

Features IP67 waterproof, TUV certified, UV resistant, flame retardant
Efficiency High efficiency, low voltage drop
Input Voltage 1000VDC
Maintenance Type Maintenance-free
Product Type Other
Material PPE/PA(Insulation material)
Power 10A
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

TUV Solar Diode Connetors IP67 Waterproof 1000VDC 10A PV4.0 Diode Connectors Solar Blocking Diode Price And Quantity

Minimum Order Quantity 100 Piece
Price 3.12 USD ($)/Piece

TUV Solar Diode Connetors IP67 Waterproof 1000VDC 10A PV4.0 Diode Connectors Solar Blocking Diode Product Specifications

Product Type Other
Operating Temperature -40-+85 Celsius (oC)
Type Of Technology Photovoltaic (PV) Connector with Diode
Efficiency High efficiency, low voltage drop
Maintenance Type Maintenance-free
Switch Mode Blocking Diode
Color Black
Dimension (L*W*H) Approx. 62mm x 18mm x 18mm
Installation Type Inline connector, crimp connection
Max System Voltage 1000VDC
Input Voltage 1000VDC
Material PPE/PA(Insulation material)
Features IP67 waterproof, TUV certified, UV resistant, flame retardant
Power 10A
Output Voltage 1000 Volt (V)
Application Solar PV systems, panel string blocking
Cable Length Custom or standard as specified
Weight Approx. 22g
Size PV4.0 standard
Max Voltage 1000VDC

Contact Material Copper with silver plating
Service Life > 25 years under normal conditions
IP Rating IP67 Waterproof
Ambient Humidity 0-100%
Diode Type Schottky barrier, pre-mounted
Connection Type PV4.0 photovoltaic connector compatible
Flame Class UL94-V0
Torque <2 Nm (locking connection)
Rated Current 10A
Polarity Male-Female set

TUV Solar Diode Connetors IP67 Waterproof 1000VDC 10A PV4.0 Diode Connectors Solar Blocking Diode Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Day
Delivery Time 12 Days
Sample Available No
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India

Product Description

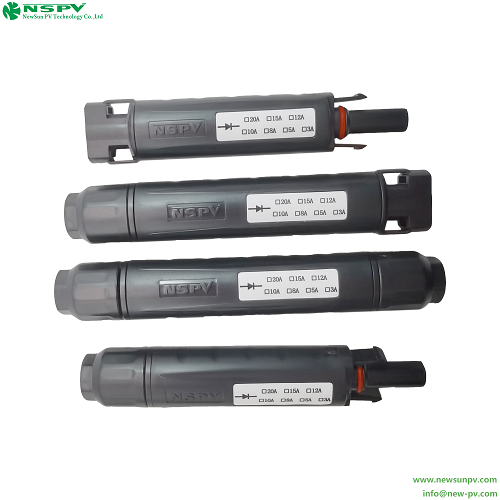

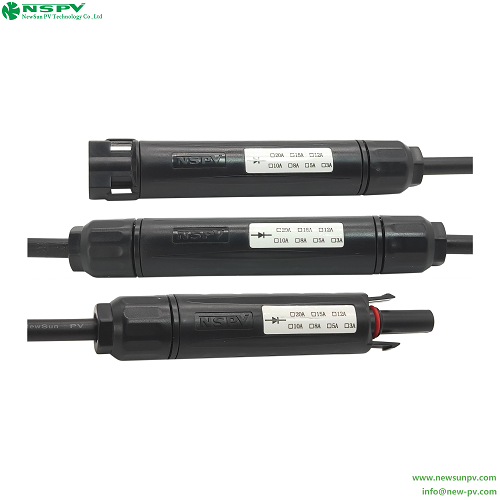

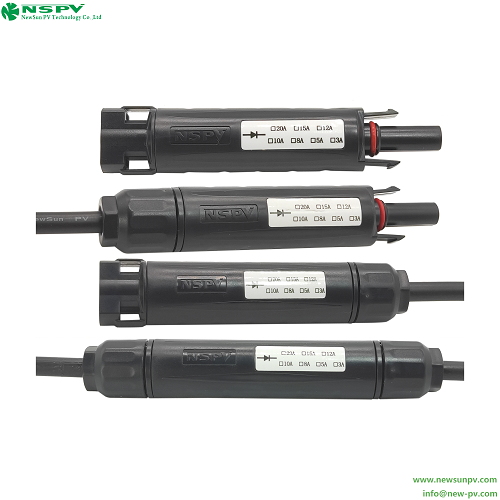

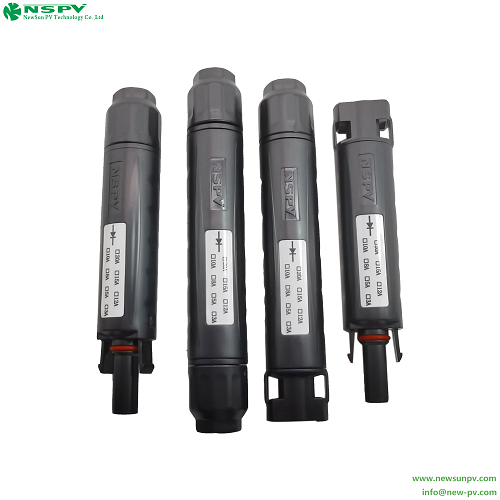

PV 4.0 Diode Connector
Insulation material:PPE/PA;Safety degree:II;
Rated current(without diode):30A;Rated current(with diode):10A(Diode rated current 15A);
Flame class:UL94-V0; Connecting system: Crimp connection;
Rated voltage:1000VDC;Ambient temperature range:-40-+85(IEC);
Test voltage:6kV(50Hz,Imin);Over voltage category/Pollution degree:CATIII/2;
Contact resistance:less than 0.25mOhm;Contact material:Copper,Tin plated;
Upper limiting temperature:110(IEC);Degree of protection:IP67;
Insertion force/Withdrawl force:less than 50N/more than 50N;
Nut cap locking force:1.5-1.8Nm.

Advanced Blocking Diode Technology

Equipped with a high-efficiency, low voltage drop Schottky barrier diode, these connectors prevent reverse current in solar panel strings, significantly boosting the systems safety and efficiency. Pre-mounted diodes streamline installation and reduce the risk of wiring errors, helping ensure reliable solar power performance.

Superior Durability and Protection

With IP67 waterproof certification, UV resistance, and flame retardant UL94-V0 features, these connectors are designed to withstand challenging climates and harsh outdoor conditions. Their robust PPE/PA insulation and silver-plated copper contacts guarantee consistent performance for over 25 years, even in extreme environments.

Easy Installation and Versatile Usage

The PV4.0 standard compatibility and inline crimp connection design make installation straightforward for professionals and DIY users alike. These connectors suit various solar PV panel string setups, enabling custom cable lengths and seamless integration into new or existing systems, without demanding ongoing maintenance.

FAQs of TUV Solar Diode Connetors IP67 Waterproof 1000VDC 10A PV4.0 Diode Connectors Solar Blocking Diode:

Q: How do I install the TUV Solar Diode Connectors in my solar PV system?

A: The connectors use an inline crimp connection compatible with PV4.0 photovoltaic standards. Ensure proper polarity (male-female set), lock with torque under 2 Nm, and follow standard wiring procedures. The pre-mounted diode simplifies installation and helps prevent reverse current flow.

Q: What is the main benefit of using these diode connectors in solar panel strings?

A: Their integrated Schottky barrier diode blocks reverse currents, protecting panels from energy loss or damage, and improving the overall efficiency and reliability of your solar PV string setup.

Q: Where can these connectors be used?

A: These connectors are engineered for panel string blocking in solar PV systems, suitable for rooftop installations, ground-mounted solar arrays, and other photovoltaic applications in outdoor environments, thanks to their waterproof and UV resistant properties.

Q: What makes these connectors durable for long-term operation?

A: They are manufactured with high-grade PPE/PA insulation, IP67 waterproofing, flame-retardant UL94-V0 materials, and silver-plated copper contacts, all contributing to more than 25 years service life under normal operating conditions.

Q: Do these connectors require any maintenance after installation?

A: No, the TUV Solar Diode Connectors are designed to be maintenance-free, ensuring consistent performance and reliability over their lifespan without the need for routine upkeep.

Q: What process should I follow to ensure a secure connection?

A: Align the male and female connectors per PV4.0 standards, crimp the cable securely, and lock the connection using less than 2 Nm torque. Make sure the insulation material remains intact so that waterproofing and flame resistance are preserved.
