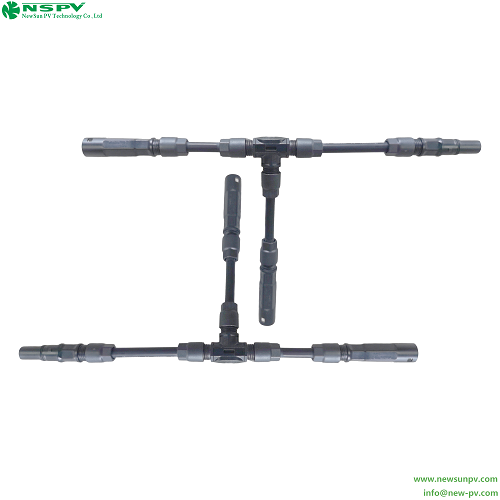

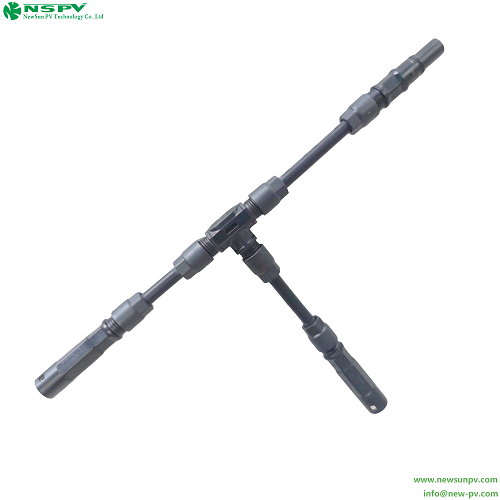

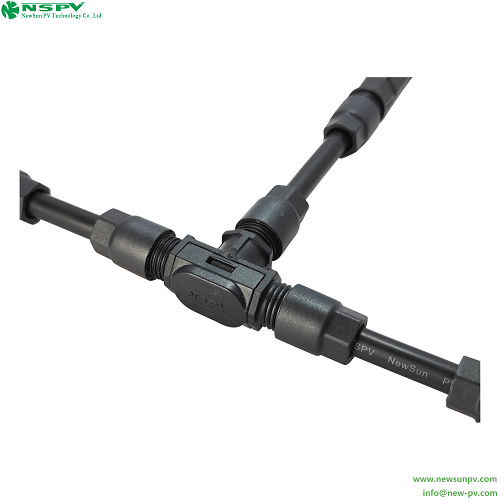

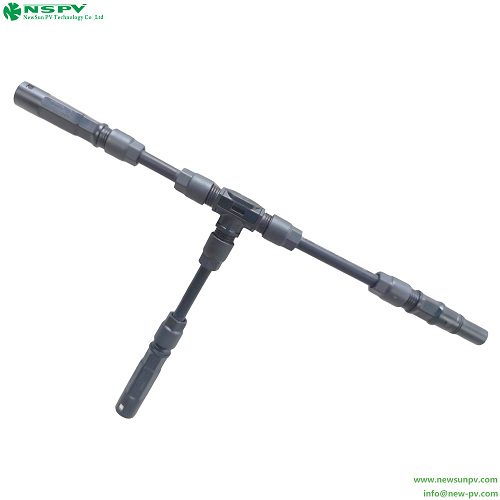

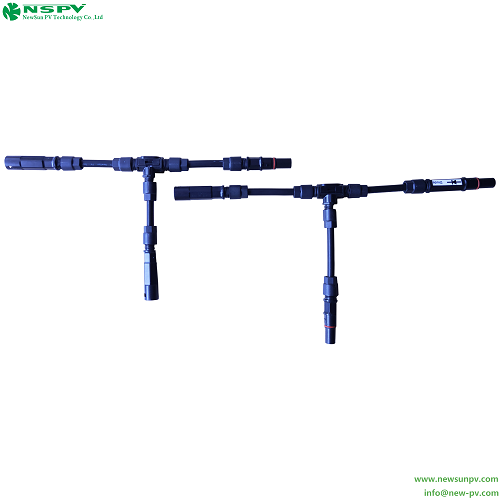

IP67 Waterproof T Type Mini Solar Branch Connectors Mini Connectors Solar Branch

IP67 Waterproof T Type Mini Solar Branch Connectors Mini Connectors Solar Branch

Name: IP67 Waterproof T Type Mini Solar Branch Connectors Mini Connectors Solar Branch
Brand: NEWSUN PV TECHNOLOGY CO., LTD.
Price: 4.5 USD
Availability: InStock

4.5 USD ($)/Unit

Get a Price/Quote

Product Details:

Efficiency High contact reliability, low power loss
Input Voltage 1000V Max
Maintenance Type Maintenance Free
Features IP67 Waterproof, UV resistant, dustproof, easy installation, anti-aging
Product Type T Type Mini Solar Branch Connector
Material PPO (Polyphenylene Oxide), Copper with Tin Plating
Power Suitable for up to 1000V DC solar systems
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

IP67 Waterproof T Type Mini Solar Branch Connectors Mini Connectors Solar Branch Price And Quantity

Price 4.5 USD ($)/Unit
Minimum Order Quantity 1000 Unit

Contact Resistance 5 m
Protection Class IP67 Waterproof
Polarity Positive & Negative
Wire Cross Section Compatible 2.5mm - 6mm
Locking System Snap-in locking mechanism
Rated Current Up to 30A
Temperature Withstand Up to 100C
Humidity Range 0-100% RH
Surface Finish Matte
Fire Rating UL94-V0
Life Expectancy >25 years
Connector Type T-Type Mini Branch Connector
Insulation Material PPO

IP67 Waterproof T Type Mini Solar Branch Connectors Mini Connectors Solar Branch Product Specifications

Efficiency High contact reliability, low power loss
Dimension (L*W*H) Approx. 85mm x 24mm x 16mm
Maintenance Type Maintenance Free
Product Type T Type Mini Solar Branch Connector
Application Solar Module Parallel Branch Connections
Operating Temperature -40C to +85C
Max System Voltage 1000V DC
Installation Type Plug-and-play
Input Voltage 1000V Max
Output Voltage 1000V Max
Material PPO (Polyphenylene Oxide), Copper with Tin Plating
Type Of Technology Crimp connection, multi-contact
Color Black
Cable Length Customizable (typically 20-30cm per branch)
Power Suitable for up to 1000V DC solar systems
Size Mini (compact design)
Max Voltage 1000V DC
Weight Approx. 30g per connector
Switch Mode Manual connection/disconnection
Features IP67 Waterproof, UV resistant, dustproof, easy installation, anti-aging

Contact Resistance 5 m
Protection Class IP67 Waterproof
Polarity Positive & Negative
Wire Cross Section Compatible 2.5mm - 6mm
Locking System Snap-in locking mechanism
Rated Current Up to 30A
Temperature Withstand Up to 100C
Humidity Range 0-100% RH
Surface Finish Matte
Fire Rating UL94-V0
Life Expectancy >25 years
Connector Type T-Type Mini Branch Connector
Insulation Material PPO

IP67 Waterproof T Type Mini Solar Branch Connectors Mini Connectors Solar Branch Trade Information

Supply Ability 10000 Unit Per Day
Delivery Time 20 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard Packing
Main Domestic Market All India

Product Description

L_Mini Connector T Type

Insulation materialPPE/PA

Rated current20A

Rated voltage1500VDC

Test voltage8kV(50Hz,Imin)

Typical contact resistance0.25 m

Contact material of solar DC connectorCopper, Tin Plated

Degree of protectionIP67

Safety degreeII

Flames classUL94-V0

Insertion force/Withdrawal force50N / 50N

Cable O.D. size Max.(mm)6.2

Ambient temperature range-40+85(IEC)

Suitable cable cross sections1.54mm2 /16-12AWG

Connecting systemCrimp connection

Nut cap locking force1-1.5Nm

Upper limiting temperature110(IEC)

L_mini4.0 T Type Connector 2M1F			L_mini4.0 T Type Connector 2F1M
Part No.	Type	Cable Size	Part No.	Type	Cable Size
4LT250-001	2M1F	1.5/2.5mm2 / 16/14AWG	4LT250-002	2M1F	1.5/2.5mm2 / 16/14AWG
4LT400-001	2M1F	4mm2&12AWG	4LT400-002	2M1F	4mm2&12AWG

Seamless Parallel Solar Connections

Rated for up to 1000V DC and 30A, the T Type Mini Solar Branch Connector streamlines parallel connections between solar modules. The plug-and-play design, snap-in locking system, and high contact reliability make installations quick and secure.

Built for the Toughest Environments

With IP67 waterproof protection, UV resistance, fire-retardancy (UL94-V0), and resistance to dust and aging, this connector is perfectly adapted for both indoor and outdoor solar applications, assuring consistent performance even in extreme conditions.

FAQs of IP67 Waterproof T Type Mini Solar Branch Connectors Mini Connectors Solar Branch:

Q: How do I install the T Type Mini Solar Branch Connector?

A: Installation is straightforward with the plug-and-play and snap-in locking mechanism. Simply align the positive and negative terminals with your solar cables (2.5mm - 6mm), insert, and snap to lock. No tools are required for the connection process.

Q: What are the key benefits of using this connector for my solar system?

A: This connector offers IP67 waterproof and dustproof protection, UV resistance, and a robust PPO body for longevity. It provides high current capacity up to 30A and voltage up to 1000V, ensuring safety, reduced power loss, and long-term reliability.

Q: When should I use a T Type Mini Solar Branch Connector?

A: Use this connector when you need to create parallel branch connections between solar panels, especially in compact arrays where space and reliability are critical. Its mini design and high efficiency make it ideal for modern solar installations.

Q: Where can this connector be deployed?

A: It is suitable for both residential and commercial solar installations, outdoors or indoors, thanks to its high protection rating. The connector withstands a wide humidity range (0-100% RH) and extreme temperatures (-40C to +85C).

Q: What safety and efficiency standards does the connector meet?

A: The connector complies with fire rating UL94-V0, offers low contact resistance ( 5 m), and features a snap-in locking system for secure, vibration-resistant connections. High contact reliability and low power loss enhance operational efficiency.

Q: How does the connectors maintenance process work?

A: The connectors are maintenance free, designed to provide consistent performance over a lifespan exceeding 25 years. Their high-quality materials resist aging and environmental damage, reducing the need for any routine service.
