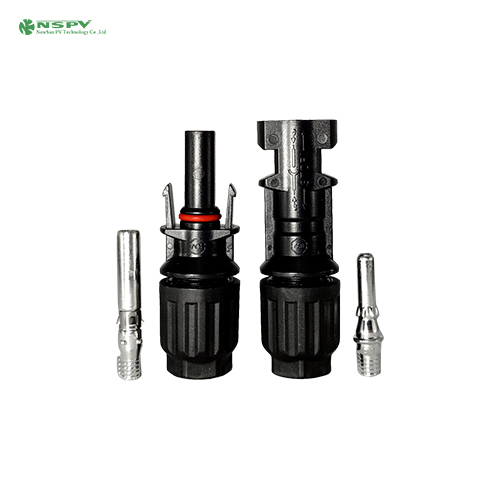

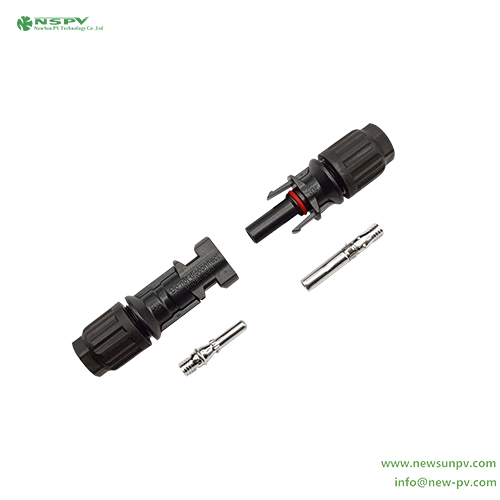

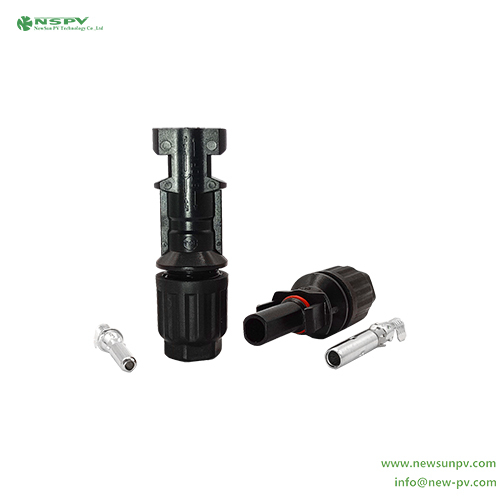

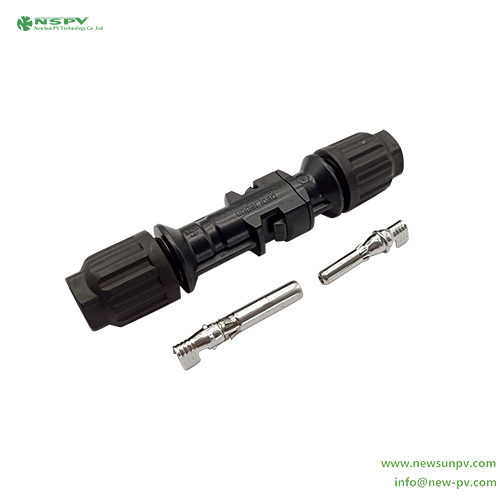

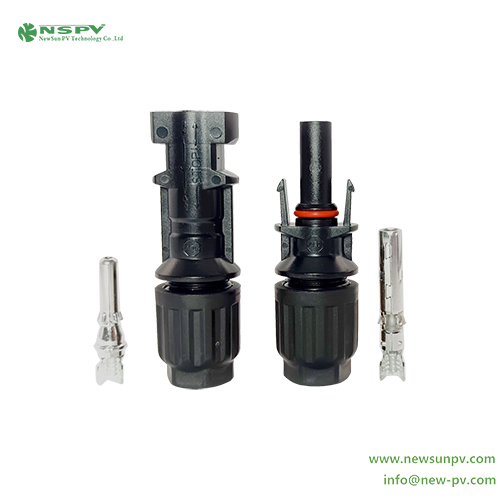

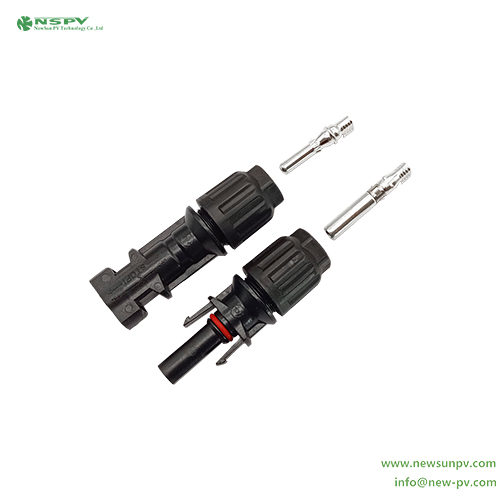

IP68 Waterproof Solar Cable Connectors 1000VDC 30A PV Wire Connectors For Solar System Connections

IP68 Waterproof Solar Cable Connectors 1000VDC 30A PV Wire Connectors For Solar System Connections

Name: IP68 Waterproof Solar Cable Connectors 1000VDC 30A PV Wire Connectors For Solar System Connections
Brand: NEWSUN PV TECHNOLOGY CO., LTD.
Price: 0.85 USD
Availability: InStock

0.85 USD ($)/Pair

Get a Price/Quote

Product Details:

Efficiency Low contact resistance (<0.5m)
Input Voltage Up to 1000V DC
Maintenance Type Minimal, standard PV system maintenance
Features IP68 Rated Waterproof, UV resistant, Easy plug & play installation, Flame retardant
Product Type Solar Cable Connector
Material PPE/PA(Insulation material)
Power 30A Max Current
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

IP68 Waterproof Solar Cable Connectors 1000VDC 30A PV Wire Connectors For Solar System Connections Price And Quantity

Price 0.85 USD ($)/Pair
Minimum Order Quantity 100 Pair

Flame Class UL94-V0
Mating Cycles >100 mating cycles
Rated Current 30A
Contact Resistance 0.5 m
Connection Type MC4 compatible
Standards IEC 62852, EN 50521
Pull-out Force >50 Newton
Wire Gauge Acceptable 2.5mm to 6mm (14-10 AWG)
Degree of Protection IP68
Contact Material Tinned Copper

IP68 Waterproof Solar Cable Connectors 1000VDC 30A PV Wire Connectors For Solar System Connections Product Specifications

Application Solar system connections
Max Voltage 1000V DC
Color Black
Power 30A Max Current
Max System Voltage 1000V
Features IP68 Rated Waterproof, UV resistant, Easy plug & play installation, Flame retardant
Maintenance Type Minimal, standard PV system maintenance
Installation Type Panel/Array inline connection
Dimension (L*W*H) Approx. 60mm 18mm 17mm
Operating Temperature -40-+85 Celsius (oC)
Material PPE/PA(Insulation material)
Efficiency Low contact resistance (<0.5m)
Product Type Solar Cable Connector
Switch Mode No switch (inline cable connector)
Input Voltage Up to 1000V DC
Type Of Technology Photovoltaic (PV) Wire Connector
Cable Length Customizable as per requirement
Output Voltage 1000 Volt (V)
Size Standard MC4 compatible size
Weight About 25g per pair

Flame Class UL94-V0
Mating Cycles >100 mating cycles
Rated Current 30A
Contact Resistance 0.5 m
Connection Type MC4 compatible
Standards IEC 62852, EN 50521
Pull-out Force >50 Newton
Wire Gauge Acceptable 2.5mm to 6mm (14-10 AWG)
Degree of Protection IP68
Contact Material Tinned Copper

IP68 Waterproof Solar Cable Connectors 1000VDC 30A PV Wire Connectors For Solar System Connections Trade Information

FOB Port EXW
Supply Ability 10000 Pair Per Day
Delivery Time 7 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

Experience the meritorious performance of our new, IP68 Waterproof Solar Cable Connectors, expertly crafted for photovoltaic (PV) systems. Built to support up to 1000VDC and 30A, these MC4-compatible connectors offer lavish resilience with UL94-V0 flame class, minimal contact resistance and remarkable pull-out force. The tinned copper contacts and UV-resistant PPE/PA insulation ensure lasting durability under harsh weather conditions. Now available at a reduced price, these noteworthy solar wire connectors promise fast installation and minimal maintenance for your next solar project. Buy with confidence from a leading China exporter.

Exceptional Features and Reliable Performance

The IP68 Waterproof Solar Cable Connectors stand out with their robust tinned copper contacts, excellent IP68 protection, and flame retardant properties. Their low contact resistance enhances energy transfer efficiency, and the MC4-compatible design ensures seamless integration into any photovoltaic installation. Lavishly engineered for panel and array connections, these connectors are routinely chosen by solar professionals, installers, and maintenance teams who demand trustworthy performance in demanding environments.

Efficient Delivery, Extensive Market Coverage, and Supply Reliability

Once your order is processed, connectors are meticulously packaged and handed over for dispatch within industry-standard timelines. We pride ourselves on prompt order processing and safe packaging to ensure every shipment reaches you intact. Serving the main domestic market and export markets worldwide, our supply ability meets the needs of distributors, exporters, and direct users seeking a continuous supply of high-quality solar connectors.

PV 4.0 Cable Connector
Product Specifications
Insulation material	PPE/PA	Safety degree	II
Rated current	30A	Flame class	UL94-V0
Rated voltage	1000VDC	Insertion force/Withdrawal force	<=50N / >=50N
Test voltage	6kV(50Hz,Imin)	Ambient temperature range	-40...+85(IEC)
Typical contact resistance	<=0.25	Suitable cable cross sections	1.5-6mm2/16-10AWG
Contact material	Copper,Tin plated	Connecting system	Crimp connection
Degree of protection	IP68	Nut cap locking force	1.5-1.8Nm
Overvoltage category/Pollution degree	CATIII/2	Upper limiting temperature	110(IEC)

FAQs of IP68 Waterproof Solar Cable Connectors 1000VDC 30A PV Wire Connectors For Solar System Connections:

Q: How do the IP68 Solar Cable Connectors enhance safety in PV systems?

A: These connectors offer an IP68 waterproof rating and UL94-V0 flame retardant insulation, ensuring robust protection against dust, moisture, and fire hazards in demanding solar installations.

Q: What process is required for installing these solar wire connectors?

A: The connectors employ a crimp connection system, allowing for simple, tool-assisted installation. Their plug-and-play design makes them user-friendly for fast and reliable setup in solar panels and arrays.

Q: When should these connectors be replaced in a solar array?

A: Designed for over 100 mating cycles and made from durable materials, they typically require minimal maintenance and do not need frequent replacement unless physically damaged or heavily worn.

Q: Where can these connectors be used?

A: Ideal for both panel and array inline connections, these MC4-compatible connectors can be employed in residential, commercial, and industrial PV systems, wherever watertight and reliable electrical connections are essential.

Q: What is the advantage of the tinned copper contacts?

A: Tinned copper contacts prevent oxidation and maintain low contact resistance, ensuring maximum conductivity and prolonged efficiency throughout the lifespan of the solar connector.
