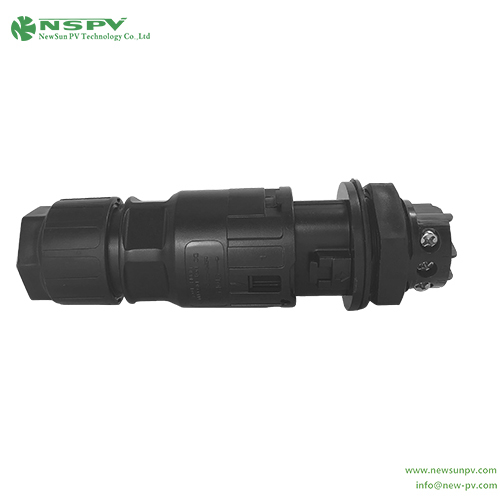

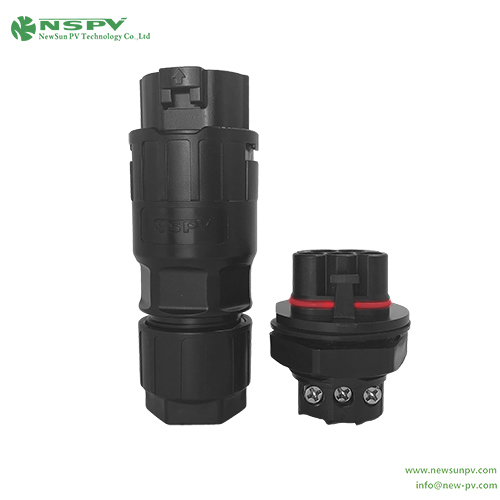

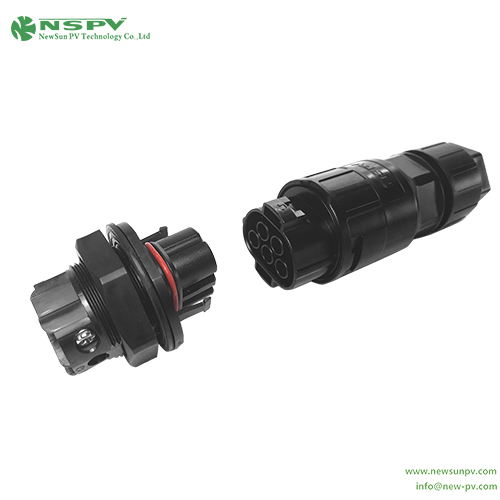

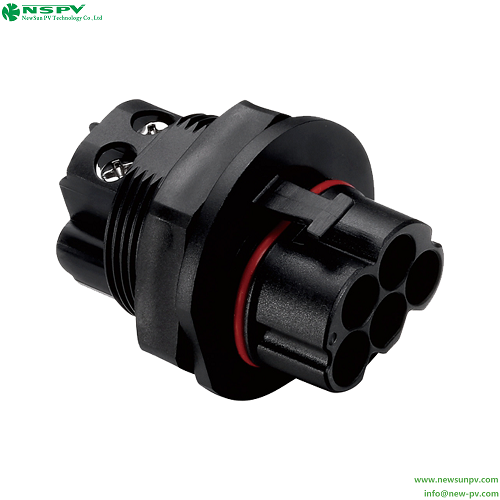

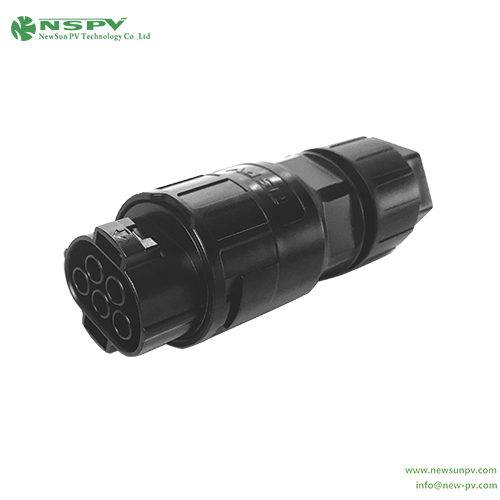

Waterproof Solar AC Connectors 5P With TUV Certificate Cable Female To Panel Male Type

Waterproof Solar AC Connectors 5P With TUV Certificate Cable Female To Panel Male Type

Product Details:

  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Output Voltage 500 Volt (V)
  • Color Black
8.73 USD ($)/Set
X

Waterproof Solar AC Connectors 5P With TUV Certificate Cable Female To Panel Male Type Price And Quantity

  • 100 Set
  • 8.73 USD ($)/Set

Waterproof Solar AC Connectors 5P With TUV Certificate Cable Female To Panel Male Type Product Specifications

  • 500 Volt (V)
  • PPE/PA(Insulation material)
  • -40-+85 Celsius (oC)
  • Black
  • Other

Waterproof Solar AC Connectors 5P With TUV Certificate Cable Female To Panel Male Type Trade Information

  • EXW
  • 10000 Set Per Month
  • Days
  • Yes
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • TUV

Product Description

AC5P Connector II
  • Insulation material:PPE/PA;Safety degree:II;
  • Rated current:Max.50A(10sqmm);Flame class:UL94-V0;
  • Rated voltage:500V AC;Suitable cable OD Max.:21mm;
  • Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
  • Typical contact resistance:less than 0.25 mOhm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
  • Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
  • Degree of protection:IP68;Insulation resistance:more than 1000 MOhm;
  • Contraction diameter/number of contact:4.0x5;Standard:EN 61984.
