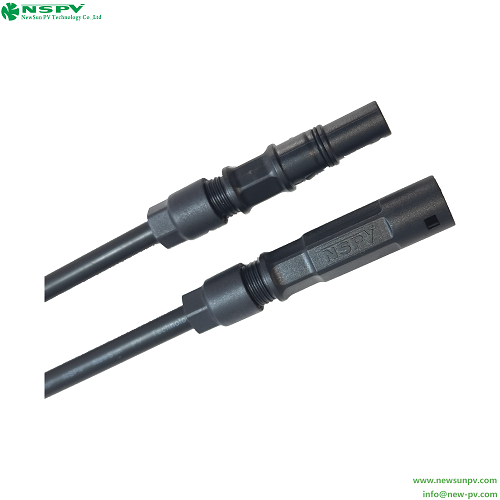

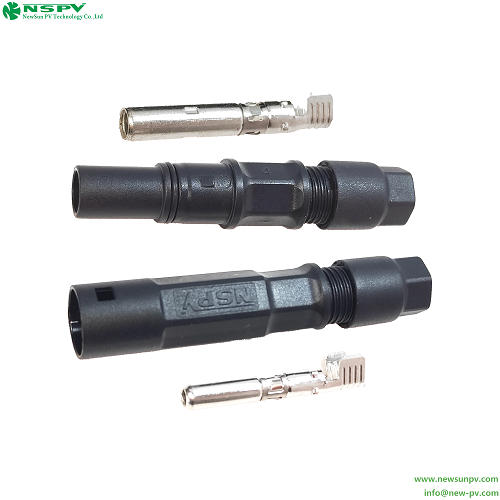

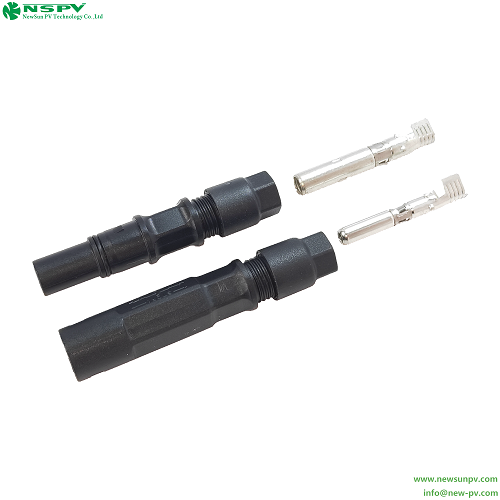

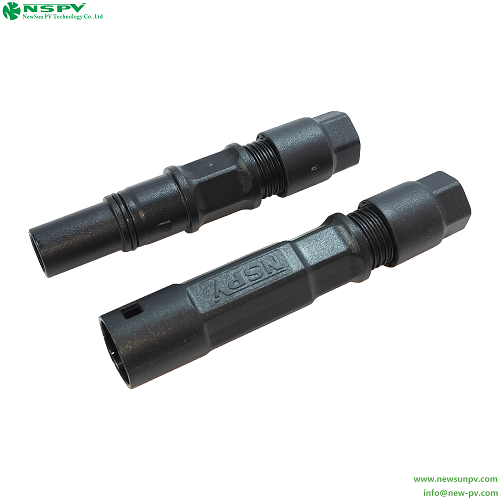

Waterproof Mini Type Solar Cbale Connectors 1500VDC 20A For Solar System Connection

Waterproof Mini Type Solar Cbale Connectors 1500VDC 20A For Solar System Connection

Name: Waterproof Mini Type Solar Cbale Connectors 1500VDC 20A For Solar System Connection
Brand: NEWSUN PV TECHNOLOGY CO., LTD.
Price: 0.69 USD
Availability: InStock

0.69 USD ($)/Pair

Get a Price/Quote

Product Details:

Efficiency High conductivity & low contact resistance
Maintenance Type Maintenance Free
Features Waterproof, Dustproof, UV Resistant, IP67 rated
Input Voltage Up to 1500VDC
Product Type Other
Material PPE/PA(Insulation material)
Power 20A Rated Current
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Waterproof Mini Type Solar Cbale Connectors 1500VDC 20A For Solar System Connection Price And Quantity

Price 0.69 USD ($)/Pair
Minimum Order Quantity 100 Pair

Contact Material Tin-plated Copper
Protection Degree IP67 (assembled)
Wire Range 2.5/4/6mm (14/12/10AWG) solar cables
Contact Resistance 0.5m
Flame Class UL94-V0
Insulation Resistance >=500M
Test Voltage 8kV (50Hz, 1min)
Temperature Withstand Range -40C to +85C
Locking System Snap-in/Self-locking

Waterproof Mini Type Solar Cbale Connectors 1500VDC 20A For Solar System Connection Product Specifications

Output Voltage 1500 Volt (V)
Dimension (L*W*H) Approx. 56 mm x 18 mm x 18 mm
Power 20A Rated Current
Installation Type Plug-in, Crimped
Maintenance Type Maintenance Free
Input Voltage Up to 1500VDC
Max System Voltage 1500VDC
Weight Approx. 22g (per pair)
Operating Temperature -40-+85 Celsius (oC)
Features Waterproof, Dustproof, UV Resistant, IP67 rated
Type Of Technology Crimp Cable-to-Cable Solar Connector
Size Mini
Efficiency High conductivity & low contact resistance
Color Black
Material PPE/PA(Insulation material)
Application Solar System (PV module interconnection)
Max Voltage 1500VDC
Product Type Other

Contact Material Tin-plated Copper
Protection Degree IP67 (assembled)
Wire Range 2.5/4/6mm (14/12/10AWG) solar cables
Contact Resistance 0.5m
Flame Class UL94-V0
Insulation Resistance >=500M
Test Voltage 8kV (50Hz, 1min)
Temperature Withstand Range -40C to +85C
Locking System Snap-in/Self-locking

Waterproof Mini Type Solar Cbale Connectors 1500VDC 20A For Solar System Connection Trade Information

FOB Port EXW
Supply Ability 10000 Pair Per Day
Delivery Time 12 Days
Sample Available No
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard packing
Main Domestic Market All India

Product Description

Last Chance to procure these champion-level Waterproof Mini Type Solar Cable Connectors, now at a reduced price! Built from top-notch PPE/PA insulation with tin-plated copper contacts, this ace solution guarantees high conductivity and ultra-low contact resistance (0.5m). Rated for 1500VDC and 20A, the robust IP67 self-locking snap-in design is both waterproof and dustproofperfect for rigorous solar system PV connections. Champions in safety (UL94-V0) and performance, these connectors deliver maintenance-free, reliable interconnection for 2.5/4/6mm solar cables. Secure the best before stocks vanish!

Champions in Versatility for Solar Applications

Waterproof Mini Type Solar Cable Connectors 1500VDC 20A are perfect aces for PV module interconnection on residential and commercial solar application surfaces. Used by solar engineering teams, electrical contractors, equipment installers, and plant operators, these mini connectors streamline PV system assembly and maintenance. Their innovative mini structure ensures compatibility and reliability, empowering professionals across rooftop, ground-mount, and industrial power generation plants with consistent top-tier performance.

Reliable Supply, Handover Assurance & Certified Packaging

Our supply ability ensures swift handover and seamless exchange services at the lowest price for projects of any scale. Packaging options are sturdy, secure, and tailored for bulk or individual deployments, preserving product excellence from warehouse to installation site. Each waterproof connector meets global certificationsincluding UL94-V0 and IP67assuring champion safety standards and compliance for every user. Choose top-notch quality and efficiency with every order, ready for immediate implementation.

Professional 1500vdc Waterproof Power Solar L Mini Cable Connector

L_Mini Connector
Product Specifications
Insulation material	PPE/PA	Safety degree	II
Rated current	20A	Flame class	UL94-V0
Rated voltage	1500V DC	Insertion force/Withdrawal force	50N/50N
Test voltage	8kV(50Hz,Imin)	Ambient temperature range	-40...+85(IEC)
Typical contact resistance	less than 0.25 mohm	Suitable cable cross sections	1.5-4mm2/16-12AWG
Contact material	Copper,Tin plated	Connecting system	Crimp connection
Degree of protection	IP67	Nut cap locking force	1-1.5Nm
Cable O.D. size Max.(mm)	6.2	Upper limiting temperature	110(IEC)

FAQs of Waterproof Mini Type Solar Cbale Connectors 1500VDC 20A For Solar System Connection:

Q: How are the Waterproof Mini Type Solar Cable Connectors installed in solar systems?

A: These connectors use a snap-in/self-locking crimp cable-to-cable technology, designed for quick plug-in and reliable crimped installations compatible with 2.5/4/6mm solar cables.

Q: What benefits do these connectors offer for solar system connections?

A: They deliver high conductivity, minimal contact resistance (0.5m), and IP67-level waterproofing. This results in safe, efficient, and maintenance-free performance even in harsh environments.

Q: Where can these connectors be used in terms of plant applications or environments?

A: They are suitable for both rooftop and ground-mount solar systems, working reliably in industrial power generation plants and commercial PV installations due to their robust construction.

Q: What certifications and safety standards do the connectors meet?

A: They meet UL94-V0 flame class, IP67 (assembled) protection degree, 8kV test voltage, and strictly comply with international solar connection standards and certifications.

Q: When should I use these connectors over standard solar connectors?

A: Choose these mini connectors when space is limited, maximum voltage (1500VDC) is required, and when superior weatherproof and dustproof reliability is critical to project efficiency.

Q: What is the typical supply and packaging process for these connectors?

A: We offer robust packaging tailored to order size, ensuring safe handover and delivery. Bulk exchanges or custom packaging are available at the lowest price for project convenience.
