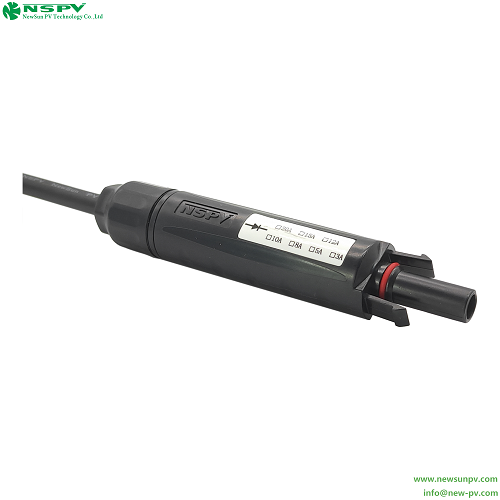

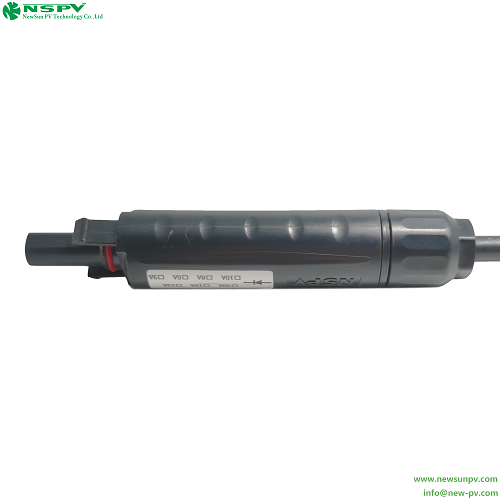

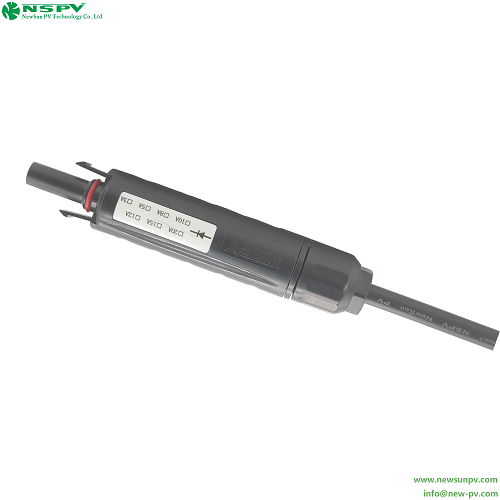

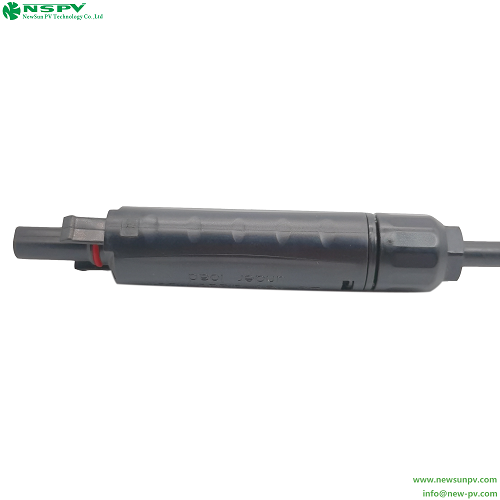

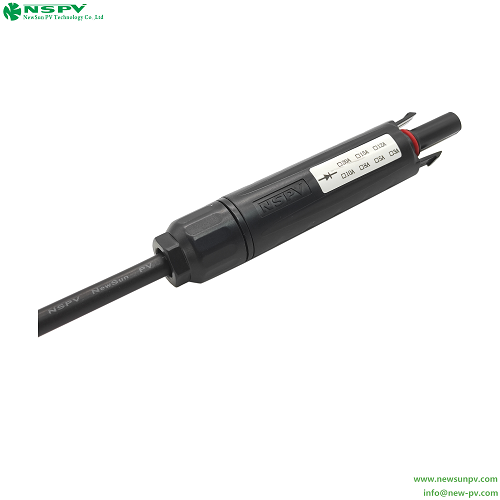

4D3 IP67 Waterproof 1000VDC 10A PV4.0 Solar Diode Connectors Prevent Adverse Current PV Solar System

4D3 IP67 Waterproof 1000VDC 10A PV4.0 Solar Diode Connectors Prevent Adverse Current PV Solar System

Product Details:

  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Output Voltage 1000 Volt (V)
  • Color Black
3.12 USD ($)/Piece
X

4D3 IP67 Waterproof 1000VDC 10A PV4.0 Solar Diode Connectors Prevent Adverse Current PV Solar System Price And Quantity

  • 100 Piece
  • 3.12 USD ($)/Piece

4D3 IP67 Waterproof 1000VDC 10A PV4.0 Solar Diode Connectors Prevent Adverse Current PV Solar System Product Specifications

  • 1000 Volt (V)
  • PPE/PA(Insulation material)
  • Black
  • -40-+85 Celsius (oC)
  • Other

4D3 IP67 Waterproof 1000VDC 10A PV4.0 Solar Diode Connectors Prevent Adverse Current PV Solar System Trade Information

  • EXW
  • 10000 Piece Per Week
  • Days
  • Yes
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India

Product Description

PV 4.0 Diode Connector 4D1-4D3
  • Insulation material:PPE/PA;Over voltage category/Pollution degree:CATIII/2;
  • Rated current(Without diode):30A;Safety degree:II;
  • Rated current(With Diode):10A(Diode Rated Current 15A);Flame class:UL94-V0;
  • Rated voltage:1000VDC;Insertion force/Withdrawal force:less than 50N / more than 50N;
  • Test voltage:6kV(50Hz,Imin);Ambient temperature range:-40-+85(IEC);
  • Typical contact resistance:less than 0.25 mohm;Upper limiting temperature:110(IEC);
  • Contact material:Copper,Tin plated;Connecting system:Crimp connection;
  • Degree of protection:IP67;Nut cap locking force:1.5-1.8Nm.
