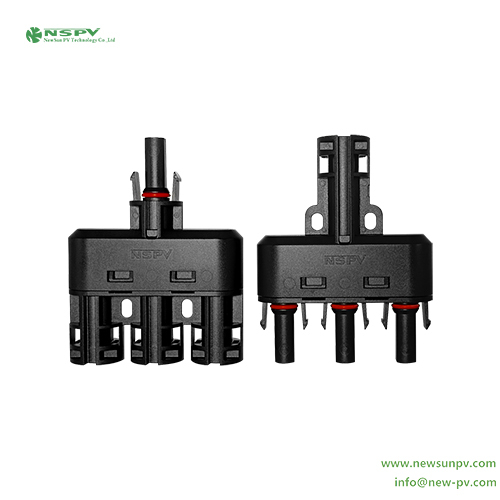

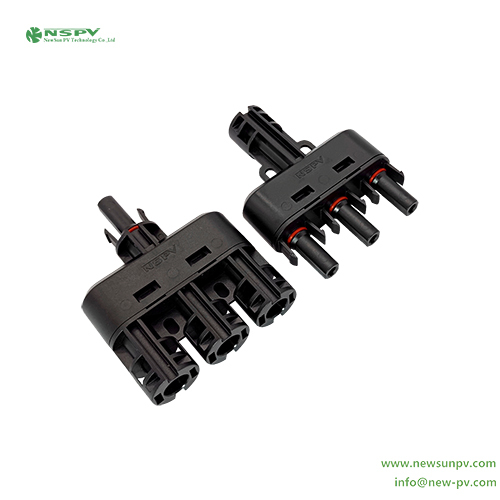

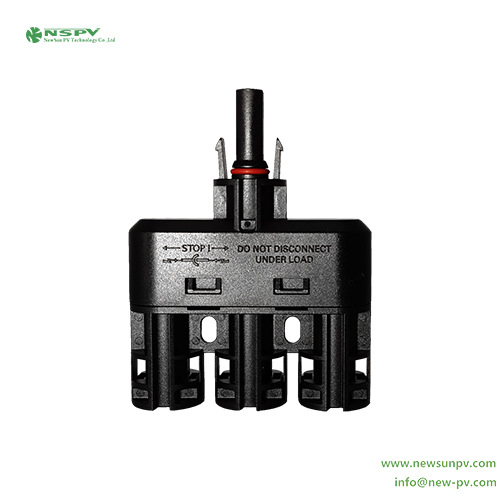

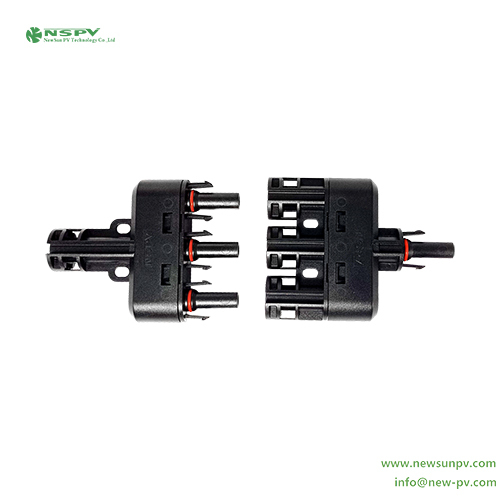

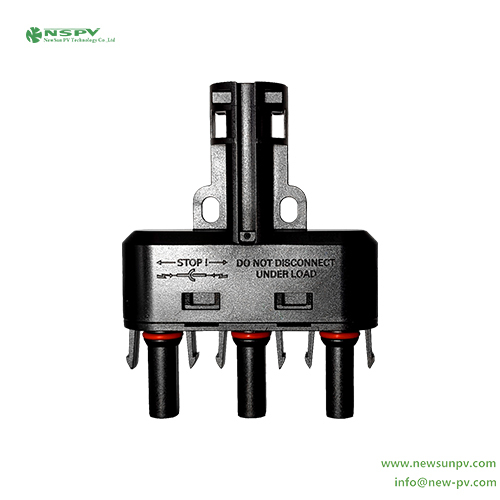

PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors

PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors

4.81 USD ($)/Set
Get a Price/Quote

Product Details:

  • Input Voltage 1500VDC
  • Features IP68 Waterproof, UV Resistant, Flame Retardant, Quick Connect/Disconnect
  • Maintenance Type Minimal
  • Efficiency High conductivity, low power loss
  • Product Type 3 To 1 Solar Branch Connector
  • Material PPO (Polyphenylene Oxide), Tinned Copper
  • Power 60A
  • Click to view more
Request To Call Back Send Inquiry
X

PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors Price And Quantity

  • 500 Set
  • 4.81 USD ($)/Set
  • PV4.0, MC4 type Solar Connectors
  • Crimp Type
  • Yes (Outdoor Ready)
  • IP68
  • -40°C to +90°C
  • Greater than 50 mating cycles
  • 60A Max
  • UL94-V0
  • 0-100% (Non-condensing)
  • 2.5/4/6mm² (AWG14/12/10)
  • PPO
  • Tinned Copper

PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors Product Specifications

  • PV4.0 Branch Connectors
  • Compatible for various cable lengths 2.5-6mm (cables not included)
  • High conductivity, low power loss
  • -40C to +90C
  • Black
  • Solar Panel Wiring, PV System Connection
  • 3 To 1 Solar Branch Connector
  • 1500VDC
  • 1500VDC
  • Plug & Play, Outdoor/Indoor use
  • Manual Connect/Disconnect
  • 1500VDC
  • 1500VDC
  • IP68 Waterproof, UV Resistant, Flame Retardant, Quick Connect/Disconnect
  • 165mm x 50mm x 18mm (approx.)
  • Minimal
  • Approx. 120g
  • For 3-to-1 Connections
  • PPO (Polyphenylene Oxide), Tinned Copper
  • 60A
  • PV4.0, MC4 type Solar Connectors
  • Crimp Type
  • Yes (Outdoor Ready)
  • IP68
  • -40°C to +90°C
  • Greater than 50 mating cycles
  • 60A Max
  • UL94-V0
  • 0-100% (Non-condensing)
  • 2.5/4/6mm² (AWG14/12/10)
  • PPO
  • Tinned Copper

PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors Trade Information

  • 10000 Set Per Day
  • 20 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard Packing
  • All India

Product Description



Grab the PV4.0 3 To 1 Solar Branch Connectors and spotlight your solar power system with superlative connectivity! Designed for demanding PV installations, these 1500VDC, 60A connectors feature astounding IP68 waterproofing and UV resistance. Engineered with tinned copper contacts for excellent conductivity and a PPO flame-retardant body, they ensure minimal power loss and ultimate durability outdoors. The crimp-type, plug & play connection method enables swift installation while maintaining high protection levels. Find your solution for 3-to-1 solar panel wiring, backed by a product that exemplifies reliability and performance.

Optimized Application & Excellent Performance

The PV4.0 3 To 1 Solar Branch Connectors are expertly designed for PV system wiring, especially for outdoor solar panel connections. Their robust IP68 waterproof and flame-retardant construction ensures exceptional performance under harsh weather. Quick-connect/disconnect and compatibility with PV4.0/MC4 allow easy integration. Suitable for both distributor and installer fields, these connectors efficiently handle 2.5/4/6mm2 wires, making them ideal for commercial and residential solar arrays, farms, and renewable energy installations.


Astounding Supply & Market Reach with Hassle-free Orders

We maintain a superlative supply ability for bulk orders of these 3 To 1 Solar Branch Connectors, serving worldwide markets including Asia, Europe, Africa, and the Americas. List prices are competitive and tailored for distributors, exporters, and importers. Upon receipt of your purchase order, we expedite shipments from our China FOB port with prompt processing and reliable freight services. For excellent connectivity solutions at remarkable value, contact us to discuss your bulk requirements.


1500VDC PV4.03 To 1 Solar Connector Product Specifications

Product Specifications

Insulation material

PPE

Rated current

Input:20A

Output:60A(With 10mm2 cable)

Rated voltage

1500VDC

Test voltage

8KV(50Hz,Imin)

Typical contact resistance

0.25m

Contact material of solar DC connector

Copper, Tin Plated

Degree of protection

IP68(1m,1H)

Overvoltage category/Pollution degree

CATIII/2

Safety degree

II

Flames class

UL94-V0

Upper limiting temperature

110c

Ambient temperature range

-40+85(IEC)

Suitable cable cross sections

2.510mm2 /148AWG

Connecting system

Crimp connection

Rated Impulse voltage

16kV


FAQ's of PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors:


Q: How do I install the PV4.0 3 To 1 Solar Branch Connectors?

A: The connectors use a crimp-type connection method for secure attachment to cables. Their plug & play design ensures fast installation-attach your cables, crimp the terminals, and simply connect or disconnect as required.

Q: What type of solar systems are these connectors suitable for?

A: These connectors are optimized for PV solar panel wiring in both residential and commercial applications, compatible with PV4.0 and MC4-type solar connectors, making them fit for most standard solar modules and arrays.

Q: What are the main benefits of using these branch connectors?

A: You benefit from IP68 waterproofing, UV resistance, high conductivity, minimal maintenance, and flame-retardant safety, ensuring your PV system works reliably in all weather conditions while reducing power loss.

Q: Where are these connectors typically used?

A: They are commonly used in outdoor solar installations-solar farms, rooftops, commercial solar projects, and agricultural solar applications, wherever reliable 3-to-1 panel connections are essential.

Q: What is the supply process for bulk orders and export?

A: To place a bulk order, submit a purchase order and confirm requirements. We process orders efficiently, offer competitive list prices, and ship promptly from our China FOB port using trusted freight carriers to global destinations.
