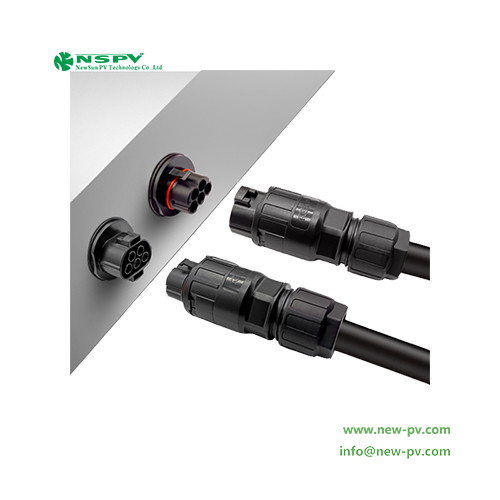

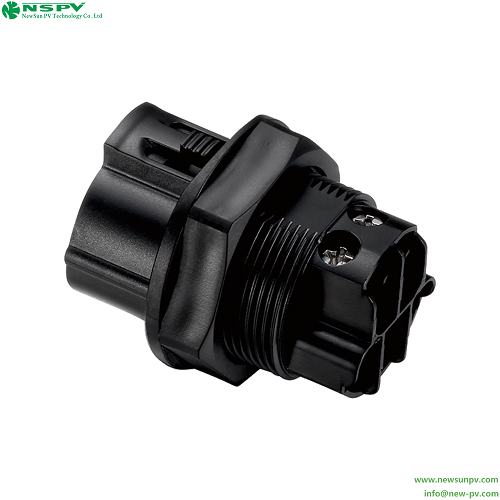

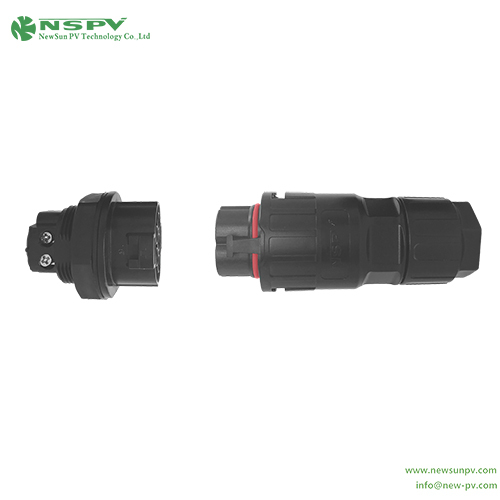

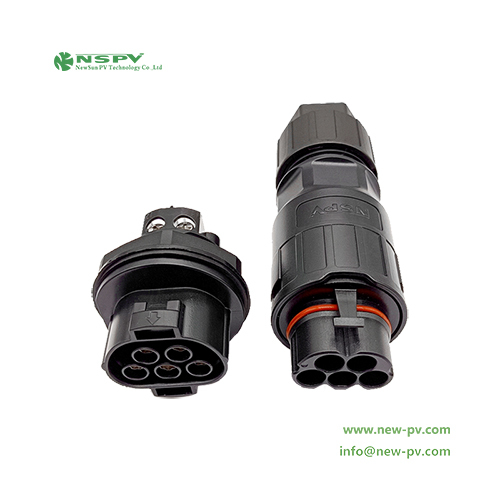

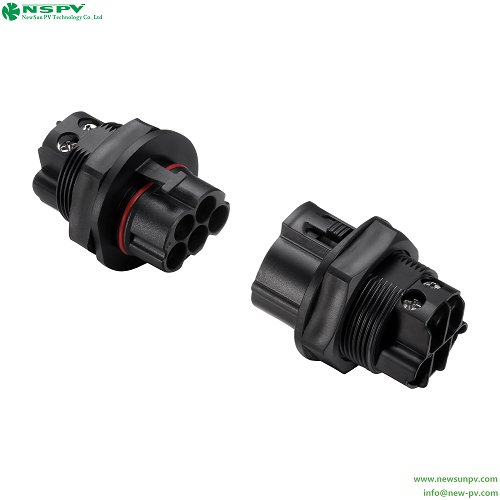

5 Pin Solar AC Conenctors 500V Max. 50A AC Wire Connectors Panel Female Type PV AC Wire Coupler

4.37 USD ($)/Piece
Get a Price/Quote

Product Details:

  • Features Waterproof, UV Resistant, Quick Lock, Flame Retardant, Vibration Resistant
  • Maintenance Type Maintenance-free
  • Efficiency >98%
  • Input Voltage 500V AC Max
  • Product Type 5 Pin Solar AC Connector Panel Female Type PV AC Wire Coupler
  • Material PA66 (Polyamide), Copper Contacts
  • Power Up to 25kW (Depending on installation)
  • Click to view more
Request To Call Back Send Inquiry
X

5 Pin Solar AC Conenctors 500V Max. 50A AC Wire Connectors Panel Female Type PV AC Wire Coupler Price And Quantity

  • 4.37 USD ($)/Piece
  • 4.37 - 5.37 USD ($)/Piece
  • 500 Piece
  • 0.5m
  • 50 mating cycles
  • Max. 50A AC
  • Tinned Copper
  • High-strength PA66 plastic
  • Screw / Crimp Terminal
  • 2.5mm6mm (14AWG10AWG)
  • UL94 V-0
  • IP67 Rated

5 Pin Solar AC Conenctors 500V Max. 50A AC Wire Connectors Panel Female Type PV AC Wire Coupler Product Specifications

  • Standard 5-pin panel mount size
  • Customizable, typical 30cm100cm
  • Black
  • Maintenance-free
  • Waterproof, UV Resistant, Quick Lock, Flame Retardant, Vibration Resistant
  • Up to 25kW (Depending on installation)
  • AC Panel Coupling
  • -40C to +85C
  • Solar AC power connection
  • Panel Mount
  • 500V AC
  • PA66 (Polyamide), Copper Contacts
  • 500V AC Max
  • 500V Max
  • >98%
  • Approx. 70g
  • AC Coupler
  • 5 Pin Solar AC Connector Panel Female Type PV AC Wire Coupler
  • Approx. 35mm x 35mm x 85mm
  • 500V AC
  • 0.5m
  • 50 mating cycles
  • Max. 50A AC
  • Tinned Copper
  • High-strength PA66 plastic
  • Screw / Crimp Terminal
  • 2.5mm6mm (14AWG10AWG)
  • UL94 V-0
  • IP67 Rated

5 Pin Solar AC Conenctors 500V Max. 50A AC Wire Connectors Panel Female Type PV AC Wire Coupler Trade Information

  • EXW
  • 10000 Piece Per Day
  • 8 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • TUV

Product Description

AC3P Connector II
  • Insulation material:PPE/PA;Safety degree:II;
  • Rated current:Max.65A(10sqmm);Flame class:UL94-V0;
  • Rated voltage:500V AC;Suitable cable OD Max.:21mm;
  • Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
  • Typical contact resistance:less than 0.25 mohm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
  • Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
  • Degree of protection:IP68;Insulation resistance:more than 1000 Mohm;
  • Contraction diameter/number of contact:4.0x3;Standard:EN 61984.


Superior Protection and Durability

Designed with a high-strength PA66 plastic shell, these connectors are both flame-retardant (UL94 V-0) and resistant to UV rays and vibrations. With an IP67 rating, they safeguard against water and dust ingress, making them a robust choice for demanding solar applications. The durable construction ensures stable operation even in harsh environmental conditions, from -40C to +85C.


Efficient and Versatile Connections

These panel mount connectors are compatible with 2.5mm2 to 6mm2 (14AWG-10AWG) wires, providing flexibility for various solar AC installation needs. With screw or crimp terminals and support for custom cable lengths, they enable swift, secure, and reliable connections with minimal maintenance. Their efficiency exceeds 98%, enhancing overall system performance.

FAQ's of 5 Pin Solar AC Conenctors 500V Max. 50A AC Wire Connectors Panel Female Type PV AC Wire Coupler:


Q: How do I install the 5 Pin Solar AC Connectors?

A: Installation is straightforward-mount the connector on your panel, then connect wires using either the screw or crimp terminal. Detailed instructions ensure a secure fit, and the quick lock system helps simplify the process.

Q: What types of wires are compatible with these connectors?

A: These connectors accept wire sizes from 2.5mm2 to 6mm2 (14AWG-10AWG), making them versatile for a range of solar AC wiring requirements.

Q: When should I use these connectors in my solar installation?

A: Use these connectors whenever durable, weatherproof, high-current AC connections are needed, particularly in outdoor or solar panel setups requiring up to 500V and 50A AC.

Q: Where can the 5 Pin Solar AC Connectors be used?

A: Ideal for solar AC power systems, these connectors are suitable for residential, commercial, or industrial applications where high efficiency and robust connections are critical.

Q: What benefits do the waterproof and UV resistant features offer?

A: The IP67 waterproof rating and UV resistance protect the connector from environmental hazards, extending its operational life and ensuring reliable connections even in harsh outdoor conditions.

Q: How long can I expect these connectors to last?

A: Engineered for longevity, these connectors endure at least 50 mating cycles and feature maintenance-free operation, thanks to robust PA66 housing and corrosion-resistant tinned copper contacts.
