NSPV Solar AC Connector 3 Cable Type AC Female Connector For Solar Inverter

NSPV Solar AC Connector 3 Cable Type AC Female Connector For Solar Inverter

3.5 USD ($)/Piece

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Request To Call Back Send Inquiry

NSPV Solar AC Connector 3 Cable Type AC Female Connector For Solar Inverter Price And Quantity

Price Range 3.50 - 5.00 USD ($)/Piece
Minimum Order Quantity 500 Piece
Price 3.5 USD ($)/Piece

NSPV Solar AC Connector 3 Cable Type AC Female Connector For Solar Inverter Trade Information

FOB Port EXW
Payment Terms Telegraphic Transfer (T/T),
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy,
Packaging Details Standard packing
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa,
Main Domestic Market All India,
Certifications TUV

Product Description

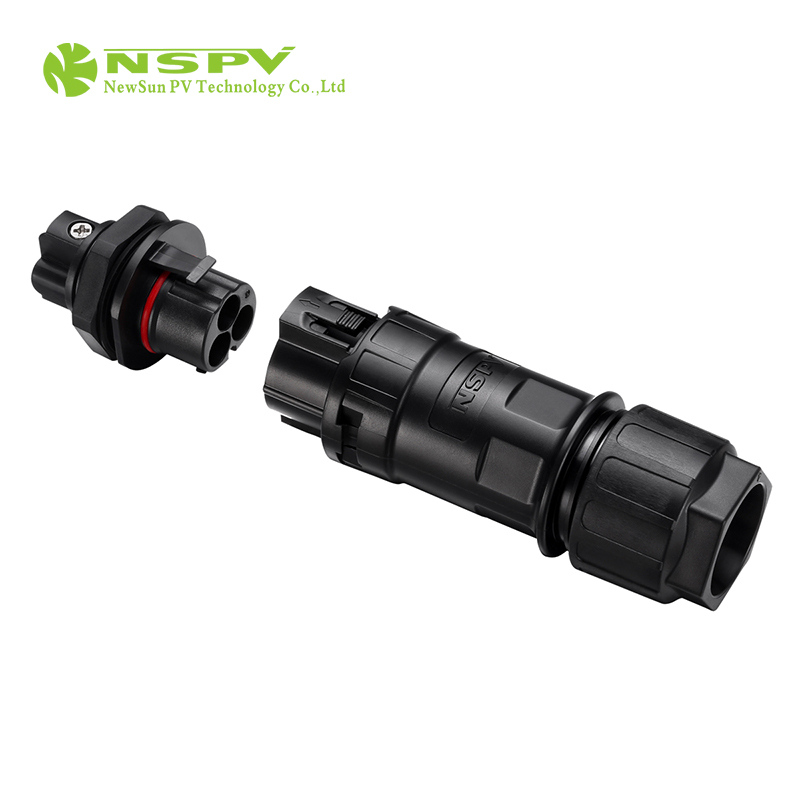

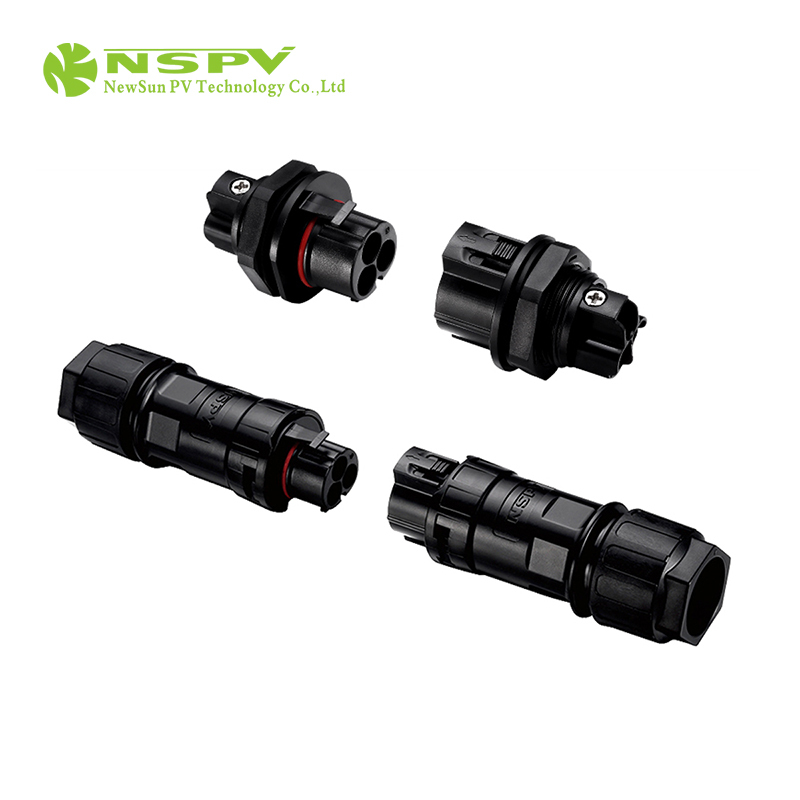

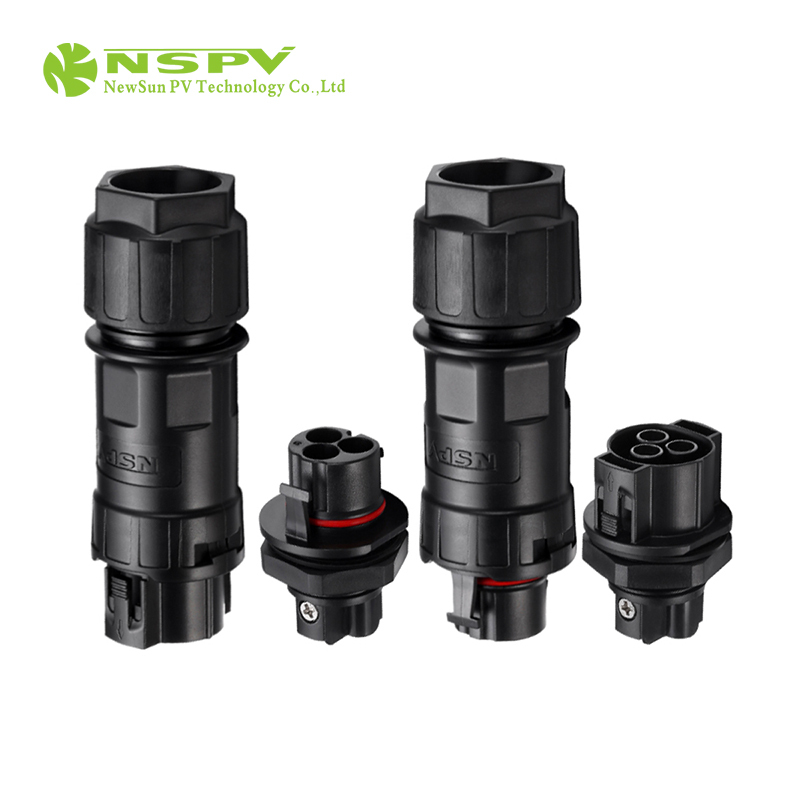

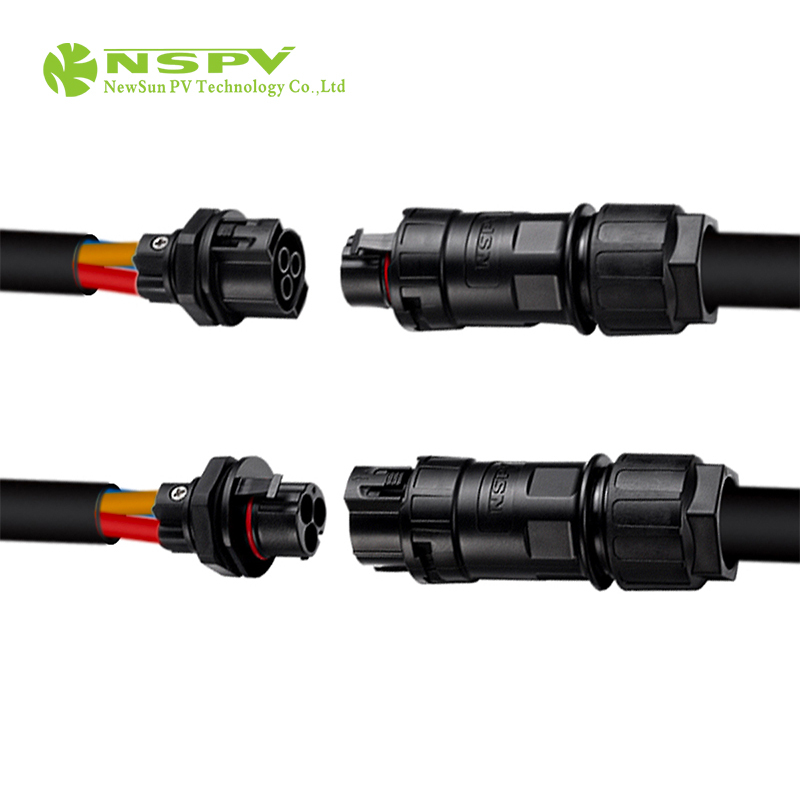

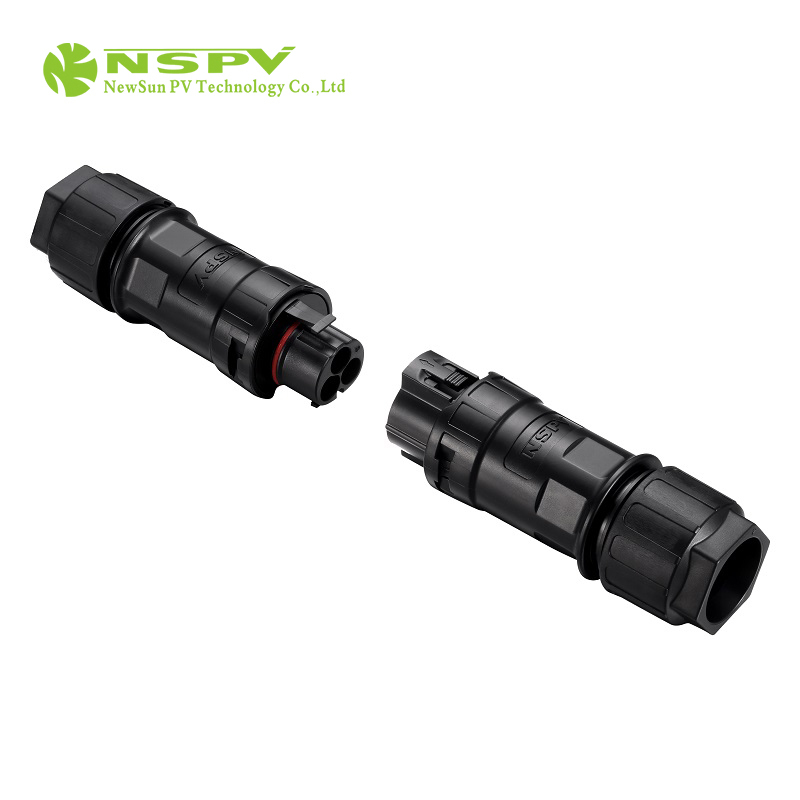

Solar AC Connector 3P II

Solar ac connector II from NSPV:

Features:

1. TUV certified;

2. IP68 rating;

3. Rated current max.50A(10sqmm);

4. Low contact resistance;

5. EN 61984 standard.

Product Specifications
Insulation material	PPE/PA	Safety degree	II
Rated current	Flame class	Flame class	UL94-V0
Rated voltage	500V AC	Suitable cable OD Max.	Î21mm
Test voltage	4kV	Ambient temperature range	-40„+85„(IECï¼‰
Typical contact resistance	‰0.25 mÎ	Suitable cable cross sections	2.56mm2/1410AWG
Contact material	Copper,Tin plated	Connecting system	Screw/crimping connection
Degree of protection	IP68	Insulation resistance	‰1000 MÎ
Contaction diameter/number of contact	4.0x3	Standard	EN 61984
