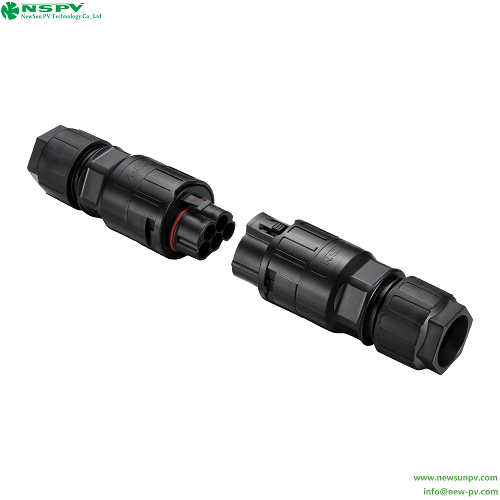

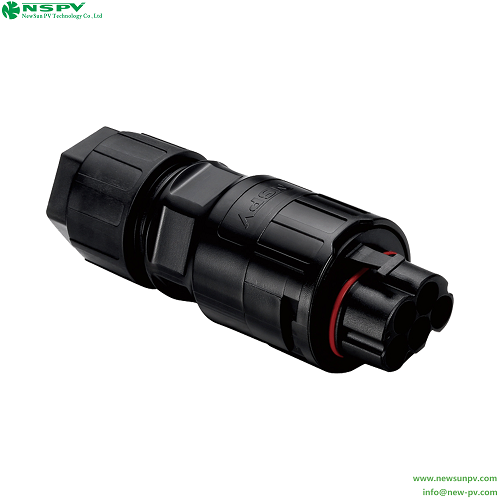

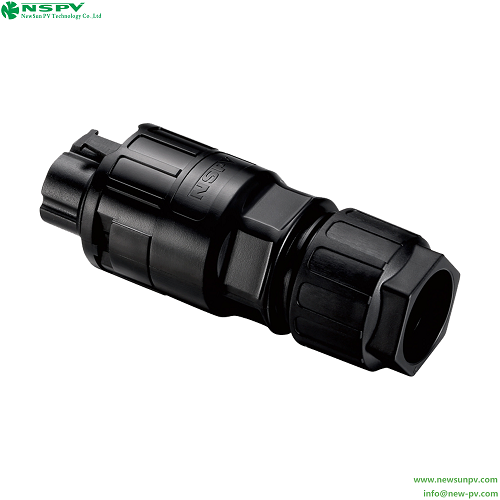

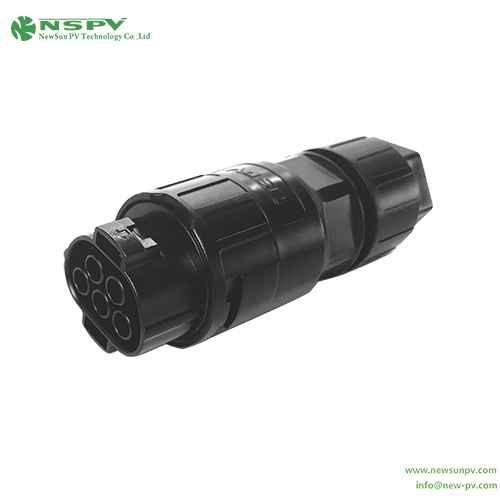

Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler

Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler

9.0 USD ($)/Set
Get a Price/Quote

Product Details:

  • Maintenance Type Maintenance-free, replaceable if damaged
  • Input Voltage 220-1000V AC
  • Features IP68 waterproof rating, TUV certified, dustproof, high UV resistance, flame retardant, secure lock system
  • Efficiency High connectivity efficiency, <0.5m contact resistance
  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Power Suitable for standard AC applications, up to 30A current
  • Click to view more
Request To Call Back Send Inquiry
X

Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler Price And Quantity

  • 9.0 USD ($)/Set
  • 100 Set

Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler Product Specifications

  • PPE/PA(Insulation material)
  • Approx. 110mm x 28mm x 28mm
  • Plug-in/Push-Fit
  • Standard 5P connector - AC Coupler Size
  • 1000V AC
  • High connectivity efficiency, <0.5m contact resistance
  • Black
  • Screw Lock/Push-Fit Coupler
  • 500 Volt (V)
  • Suitable for standard AC applications, up to 30A current
  • Maintenance-free, replaceable if damaged
  • Customizable, typically up to 2 meters
  • Other
  • IP68 waterproof rating, TUV certified, dustproof, high UV resistance, flame retardant, secure lock system
  • Solar PV AC connections, outdoor and industrial wiring
  • 220-1000V AC
  • 1000V AC
  • Approx. 80 grams each
  • -40-+85 Celsius (oC)
  • High
  • <0.5m
  • Overvoltage and dust protection
  • UL94-V0
  • 1.5mm2 to 6mm2 (16-10AWG)
  • IP68
  • Screw with gland/coupler
  • 30A max
  • PA66 (Nylon 66)
  • RoHS, TUV, CE
  • Outdoor/Harsh environments
  • Male to Female, 5-pin
  • >100 mating cycles

Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler Trade Information

  • EXW
  • 10000 Set Per Week
  • Days
  • Yes
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • TUV

Product Description

AC5P Connector II
  • Insulation material: PPE/PA; Safety degree: II;
  • Rated current: Max.65A(10sqmm); Flame class: UL94-V0;
  • Rated voltage: 500V AC; Suitable cable OD Max.: 21mm;
  • Test voltage: 4kV; Ambient temperature range: -40-+85(IEC);
  • Typical contact resistance: less than 0.25 mOhm; Suitable cable cross sections: 2.5-6mm2/14-10AWG;
  • Contact material: Copper,Tin plated; Connecting system: Screw/crimping connection;
  • Degree of protection: IP68; Insulation resistance: more than 1000 MOhm;
  • Contraction diameter/number of contact: 4.0x5; Standard: EN 61984.


Engineered for Extreme Environments

Solar AC Connectors 5P are meticulously crafted for reliable performance in challenging outdoor and industrial settings. Their IP68 waterproof and high UV-resistant design ensures dependable AC connections under severe weather and operational conditions. Constructed with robust PA66 (Nylon 66) and PPE materials, these connectors provide strong resistance to chemicals, moisture, and sunlight.


Certified Safety and Superior Protection

These connectors hold TUV, CE, and RoHS certifications, guaranteeing safe and environmental-friendly operation. With built-in overvoltage, dust, and flame protection (UL94-V0 rated), users can trust their installations to remain secure even in demanding environments while safeguarding electrical systems from common hazards.


Effortless Installation and Maintenance

The 5-pin AC connectors are designed with a user-friendly push-fit and screw lock assembly method, enabling quick and secure plug-and-play connections without the need for specialized tools. Their maintenance-free operation and replaceable structure minimize downtime, making them suitable for installers and professionals looking for efficiency and reliability.

FAQ's of Solar AC Connectors 5P IP68 Waterproof With TUV Certificate Male To Female Cable Type AC Wire Coupler:


Q: How do I install the Solar AC Connectors 5P IP68 Waterproof couplers?

A: Installation is straightforward-simply strip your AC wires (supported range: 1.5mm2 to 6mm2), fit them into the designated terminals, and secure with the built-in screw lock and gland system. The plug-in/push-fit design ensures a firm connection, eliminating the need for special tools.

Q: What applications are these connectors suited for?

A: These connectors are ideal for solar PV AC connections, outdoor or industrial wiring, and environments where high moisture, dust, and sunlight exposure are common. Their robust design ensures reliable performance in both residential and commercial solar installations.

Q: When should I consider upgrading to an IP68-rated AC connector?

A: Upgrade to IP68-rated connectors when you need maximum protection against water ingress, dust, and UV exposure-especially for outdoor installations or harsh environments, such as rooftops, solar farms, or industrial sites with stringent weatherproofing requirements.

Q: Where can I use these connectors safely?

A: These connectors are certified for use in various outdoor, harsh, and industrial environments. Their waterproof, dustproof, and UV-resistant properties make them suitable for use wherever electrical connections are exposed to challenging environmental conditions.

Q: What are the benefits of using this 5-pin AC connector over standard connectors?

A: The key benefits include high current capacity (up to 30A), enhanced safety (UL94-V0 flame retardancy and overvoltage protection), secure locking mechanism, and outstanding resistance to dust, water, and UV-resulting in longer service life and reduced maintenance.

Q: How do I ensure compatibility with my existing cables?

A: Ensure your AC cables are between 1.5mm2 and 6mm2 (16-10AWG) and have insulation capable of handling up to 1000V AC. The connector's assembly method accommodates standard wire sizes for most solar and industrial applications.

Q: What makes these connectors maintenance-free?

A: Thanks to their robust, weather-resistant design and high mechanical endurance (>100 mating cycles), these connectors require no regular upkeep. If damage occurs, simply replace the affected unit without needing frequent servicing or inspection.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Solar Connector' category

3 Pin Solar AC Connectors 500V Max.50A IP68 Waterproof AC Wire Coupler Cable Male Type
Send Inquiry

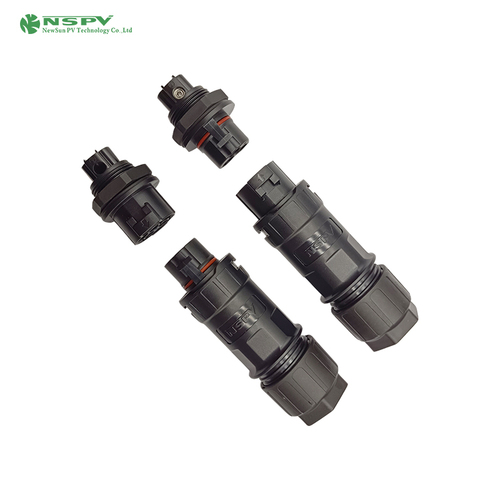

Waterproof 3P/4P/5P Solar Inverter AC Connectors 500V With TUV Certficate Solar AC Wire Coupler
