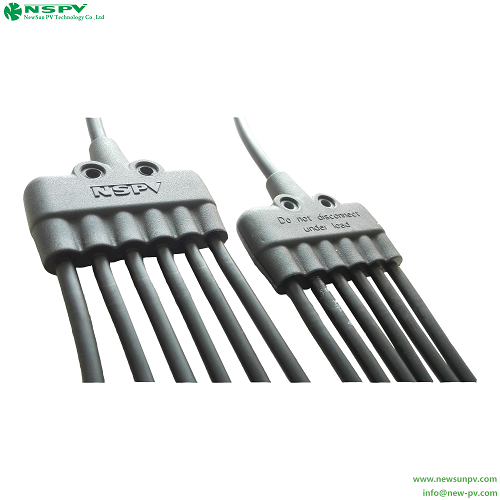

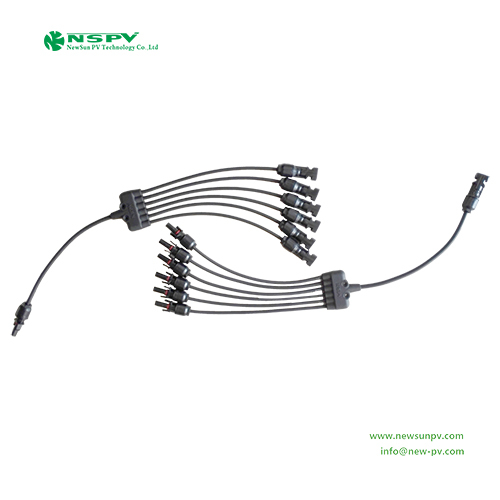

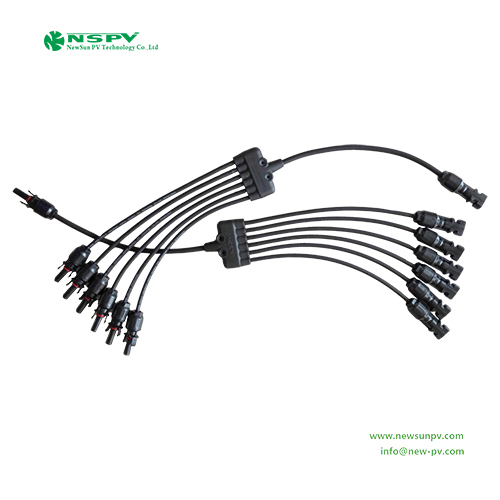

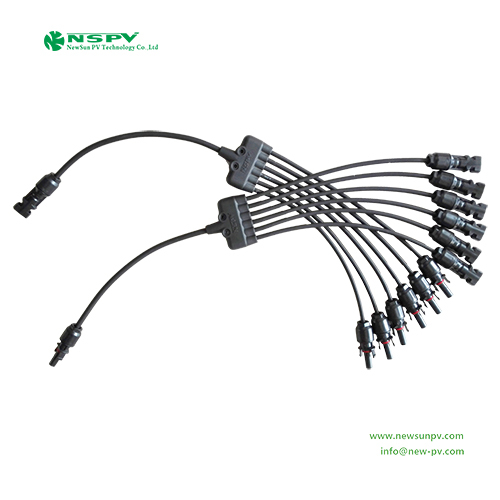

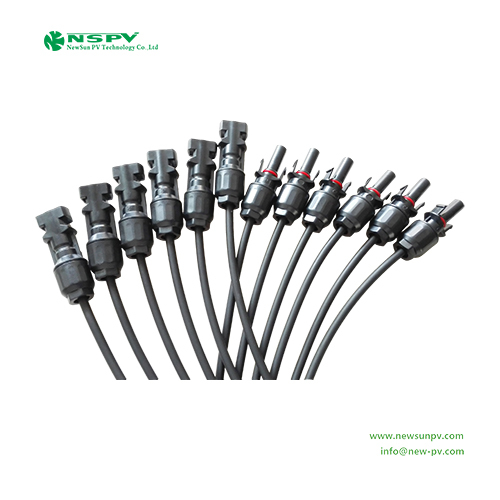

6 To 1 PV Solar Cable Harness Y Branch Connectors Solar Panel Parallel Connectors

Product Description

Holding years of experience in this domain, we export and manufacture an excellent array of 6 In 1 Solar Cable Assembly Connector

which is utilized to connect the cores of the solar cables to the cable boxes.

Our connector is made under the leadership of capable professionals in compliance with universal parameters.

Offered 6 In 1 solar cable assembly connector is extensively employed due to their lightweight and durable finish.

This is designed in compliance with defined quality norms to ensure tensile strength, dimensional accuracy, longer service life and rugged design.

1500VDC Solar Cable Assembly

Product Specifications:

• Insulation material:PPE/TPE/PA;
• Rated voltage:1500VDC;
• Rated Impulse voltage:16kV;
• Test voltage:8kV(50Hz,1min);
• Contact resistance:less than 0.25mOhm;
• Contact material:Copper,Tin plated;
• Degree of protection:IP68(1m,1H);
• Overvoltage category/Pollution degree:CATIII/2;
• Safety degree:II;
• Flame class:UL94-V0;
• Installation type:Outdoor,UV resistant(F1);
• Ambient temperature range:-40 degrees Celsius-+85 degrees Celsius(IEC);
• Upper limiting temperature:110 degrees Celsius(IEC);
• Suitable cable cross sections:1.5-10mmsq./16-8AWG;
• Connecting system:Crimp connection;
• Regulatory approval:TUV/CE(IEC62852:2014).
