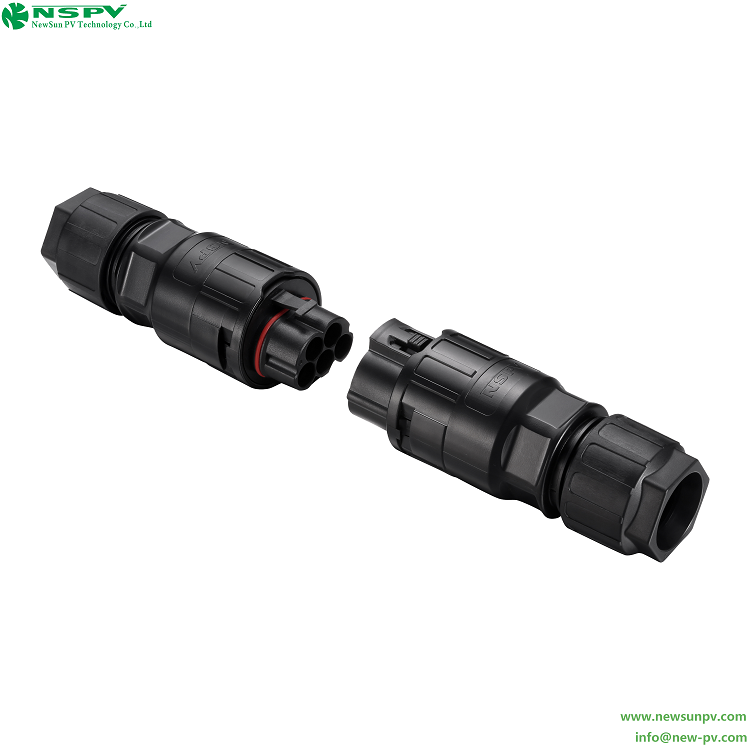

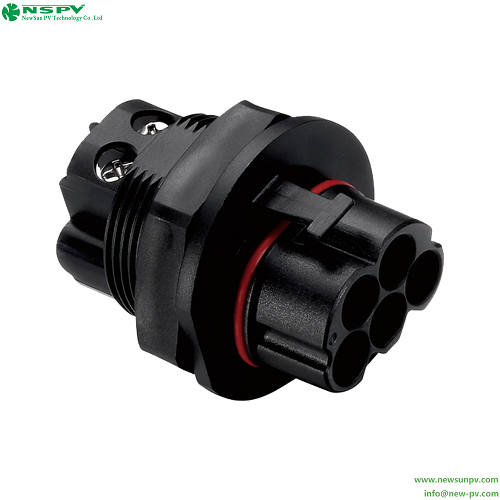

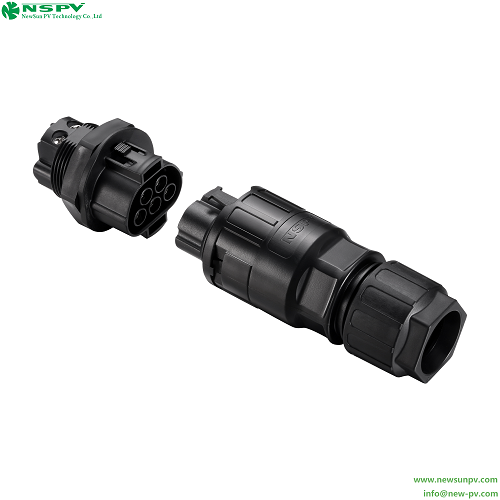

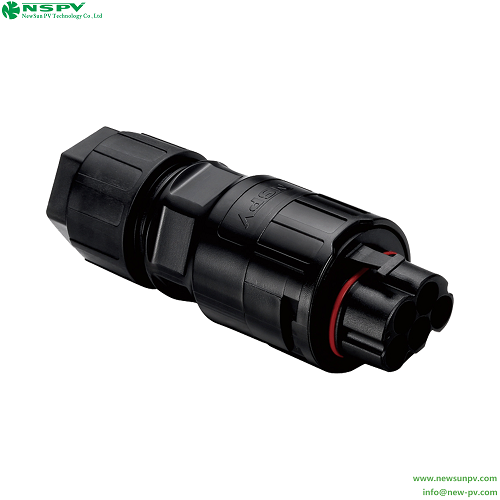

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 50A 500V AC Wire Coupler

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 50A 500V AC Wire Coupler

Product Details:

  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Output Voltage 500 Volt (V)
  • Color Black
8.73 USD ($)/Piece
X

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 50A 500V AC Wire Coupler Price And Quantity

  • 8.73 USD ($)/Piece
  • 1000 Pair

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 50A 500V AC Wire Coupler Product Specifications

  • Black
  • PPE/PA(Insulation material)
  • -40-+85 Celsius (oC)
  • 500 Volt (V)
  • Other

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 50A 500V AC Wire Coupler Trade Information

  • EXW
  • 10000 Pair Per Month
  • Days
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard packing or according to customer's request.
  • All India
  • TUV

Product Description

AC5P Connector II
  • Insulation material: PPE/PA;Safety degree: II;
  • Rated current: Max.50A(10sqmm);Flame class: UL94-V0;
  • Rated voltage: 500V AC;Suitable cable OD Max.: 21mm;
  • Test voltage: 4kV;Ambient temperature range: -40-+85(IEC);
  • Typical contact resistance: less than 0.25 mOhm;Suitable cable cross sections: 2.5-6mm2/14-10AWG;
  • Contact material: Copper,Tin plated;Connecting system: Screw/crimping connection;
  • Degree of protection: IP68;Insulation resistance: more than 1000 MOhm;
  • Contraction diameter/number of contact: 4.0x5;Standard: EN 61984.
