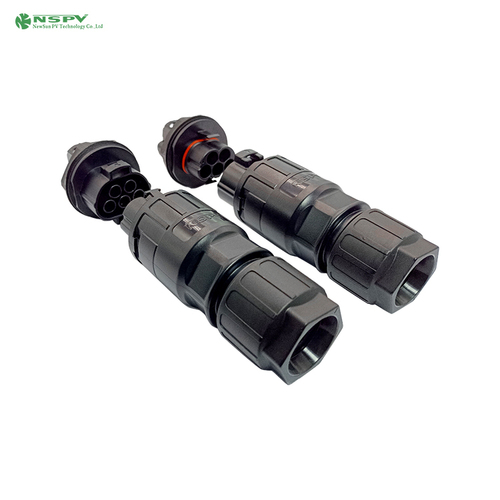

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 65A 500V AC Wire Coupler

8.73 USD ($)/Unit
Get a Price/Quote

Product Details:

  • Efficiency High Conductivity, Low Loss
  • Maintenance Type Low Maintenance
  • Features IP68 Waterproof, 5P Design, Durable Build
  • Input Voltage 500V AC
  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Power 65A
  • Click to view more
Request To Call Back Send Inquiry
X

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 65A 500V AC Wire Coupler Price And Quantity

  • 1000 Unit
  • 8.73 USD ($)/Unit
  • 50/60 Hz
  • IP68
  • Copper with Tin Plating
  • >500 Mating Cycles
  • 0~95% RH
  • UL94-V0
  • 5-pin AC Coupler
  • 2.5mm² to 16mm²
  • Yes
  • Yes
  • Screw Lock/Quick Push
  • 65A

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 65A 500V AC Wire Coupler Product Specifications

  • Low Maintenance
  • -40-+85 Celsius (oC)
  • High Conductivity, Low Loss
  • 500V AC
  • Standard 5P Size
  • Black
  • PPE/PA(Insulation material)
  • Panel Mount/Cable Coupler
  • 65A
  • IP68 Waterproof, 5P Design, Durable Build
  • AC Coupler
  • 500V AC
  • Solar AC Waterproof Connector
  • 500V AC
  • Customizable/Not Specified
  • 500 Volt (V)
  • Other
  • Solar PV Panel, Power Cable Jointing
  • 50/60 Hz
  • IP68
  • Copper with Tin Plating
  • >500 Mating Cycles
  • 0~95% RH
  • UL94-V0
  • 5-pin AC Coupler
  • 2.5mm² to 16mm²
  • Yes
  • Yes
  • Screw Lock/Quick Push
  • 65A

IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 65A 500V AC Wire Coupler Trade Information

  • EXW
  • 10000 Unit Per Day
  • 12 Days
  • No
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard packing or according to customer's request.
  • All India
  • TUV

Product Description

AC5P Connector II
  • Insulation material: PPE/PA;Safety degree: II;
  • Rated current: Max.65A(10sqmm);Flame class: UL94-V0;
  • Rated voltage: 500V AC;Suitable cable OD Max.: 21mm;
  • Test voltage: 4kV;Ambient temperature range: -40-+85(IEC);
  • Typical contact resistance: less than 0.25 mOhm;Suitable cable cross sections: 2.5-6mm2/14-10AWG;
  • Contact material: Copper,Tin plated;Connecting system: Screw/crimping connection;
  • Degree of protection: IP68;Insulation resistance: more than 1000 MOhm;
  • Contraction diameter/number of contact: 4.0x5;Standard: EN 61984.


Reliable IP68 Waterproof Protection

This connector achieves an IP68 rating, safeguarding electrical connections against dust and water ingress. Its robust PPE/PA insulation and UV resistance make it suitable for harsh outdoor environments commonly found in solar and renewable energy installations.


Versatile Installation and Usage

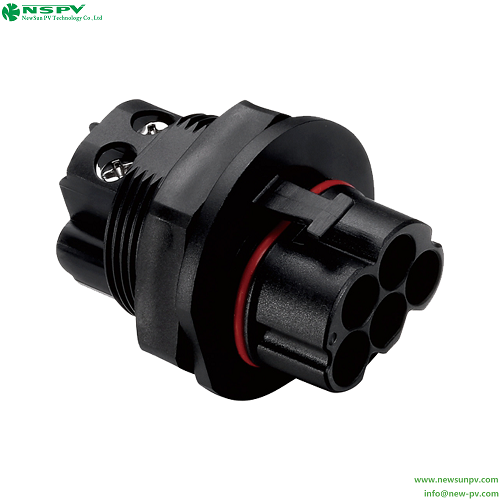

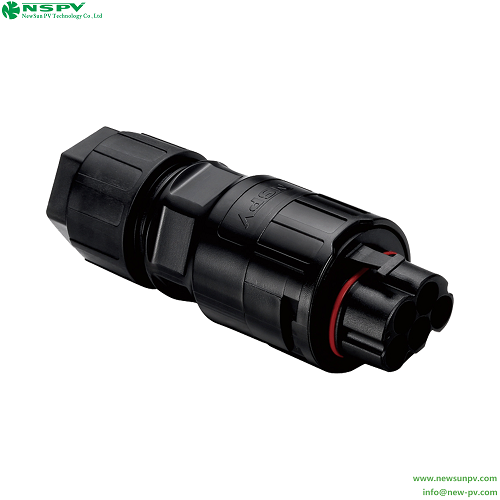

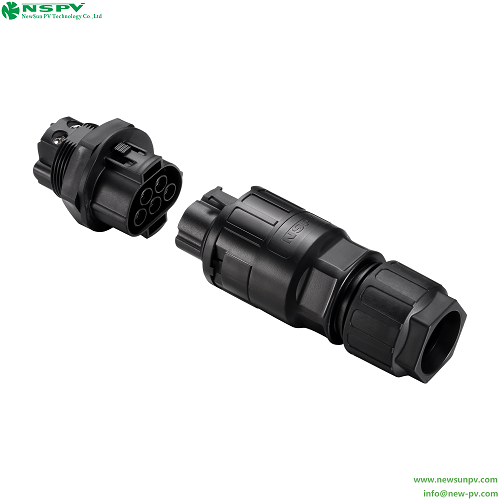

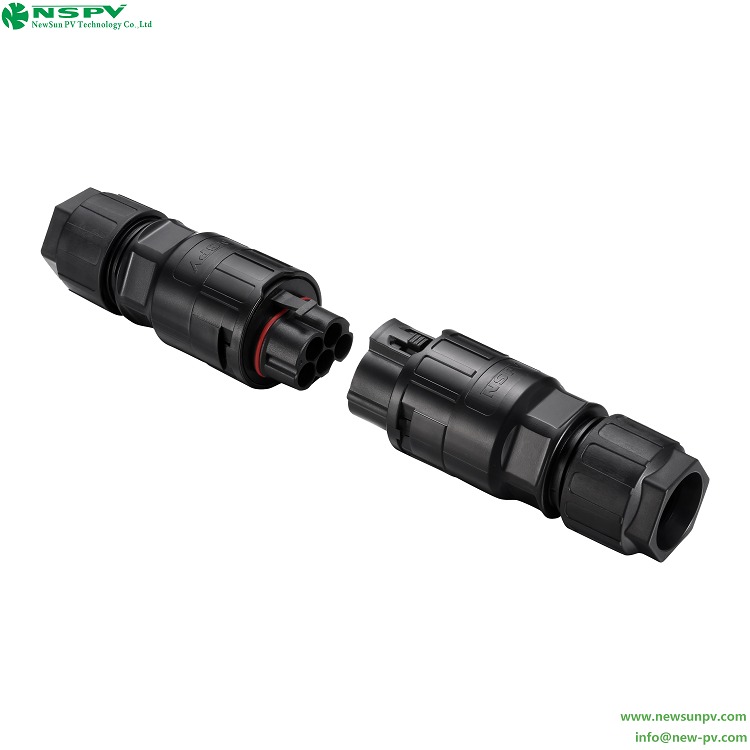

Supporting both panel mount and cable coupling methods, this 5-pin AC connector simplifies integration into solar PV panels and power cable joints. The screw lock and quick push mechanisms expedite setup, while the adaptable wire gauge (2.5mm 16mm) enhances versatility.


Efficient and Safe Power Transmission

Copper contacts with tin plating deliver exceptional conductivity and minimal energy loss. The flame-retardant UL94-V0 housing, low maintenance design, and RoHS compliance ensure user safety and long-term reliability for high-current applications.

FAQs of IP68 Waterproof 5P Solar AC Connectors IP68 Waterproof PV Cable Panel 65A 500V AC Wire Coupler:


Q: How do I install the IP68 Waterproof 5P Solar AC Connector on a solar panel system?

A: Installation is straightforwardchoose either the screw lock or quick push mounting method. Secure the connector onto the panel or cable, ensuring wire sizes (2.5mm16mm) are compatible. The panel mount and cable coupler options provide flexibility for different setups.

Q: What environments is this solar AC connector suitable for?

A: Thanks to its IP68 protection, UV resistance, and temperature range from 40C to +85C, this connector endures environments with high humidity, extreme temperatures, and exposure to dust and watermaking it ideal for outdoor solar and renewable energy projects.

Q: When should I use a 5-pin AC Coupler like this instead of other connectors?

A: A 5-pin AC coupler is preferred when you require reliable and efficient transmission of high currents (up to 65A) and voltages (up to 500V AC), especially in solar panel installations or extensive power cable jointing applications.

Q: Where can I source or customize this connector for my project?

A: This connector is available through distributors, exporters, manufacturers, suppliers, and traders based in China. Cable length and other features can be customized based on specific project requirementsconsult a supplier for detailed options.

Q: What is the process for maintenance of this AC connector?

A: Maintenance is minimal due to its robust waterproof design and durable construction. Periodically check for proper sealing, ensure theres no evidence of wear, and confirm the mechanical integrity after repeated mating cycles (>500).

Q: What are the benefits of using an IP68 solar AC connector with UL94-V0 flame retardancy?

A: Key advantages include enhanced safety against fire hazards, reliable electrical performance under extreme conditions, and long-term durability. The combination of high conductivity, waterproofing, and stringent safety compliance supports uninterrupted power delivery and installation confidence.

Q: Can this connector handle fluctuating frequencies in AC applications?

A: Yes, the connector is optimized for rated frequencies of both 50 Hz and 60 Hz, ensuring stable operation across different regional or equipment standards.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Solar Connector' category

PV4.0 3 To 1 Solar Branch Connectors 1500VDC 60A IP68 Waterproof PV T Branch Connectors
Send Inquiry
Waterproof Solar AC Connectors 3P AC Wire Connectors For Solar Inverter 500V AC Wire Coupler
Send Inquiry
Waterproof Solar AC Connectors 3Pin 5P 500V PV Inverter Connectors AC Power Connectors
Send Inquiry

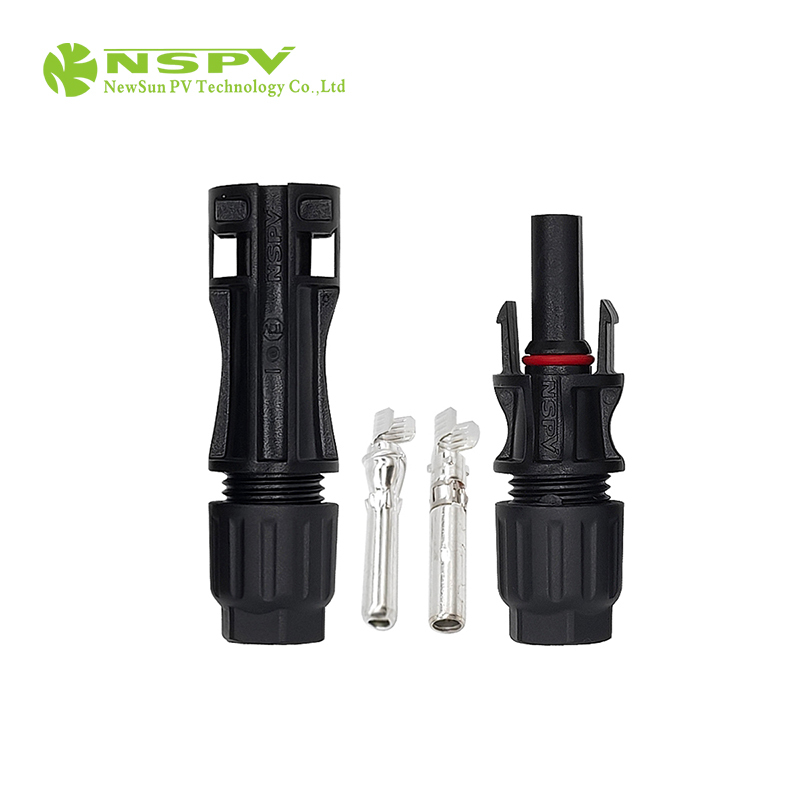

1500VDC PV Panel Connector IP68 Waterproof
