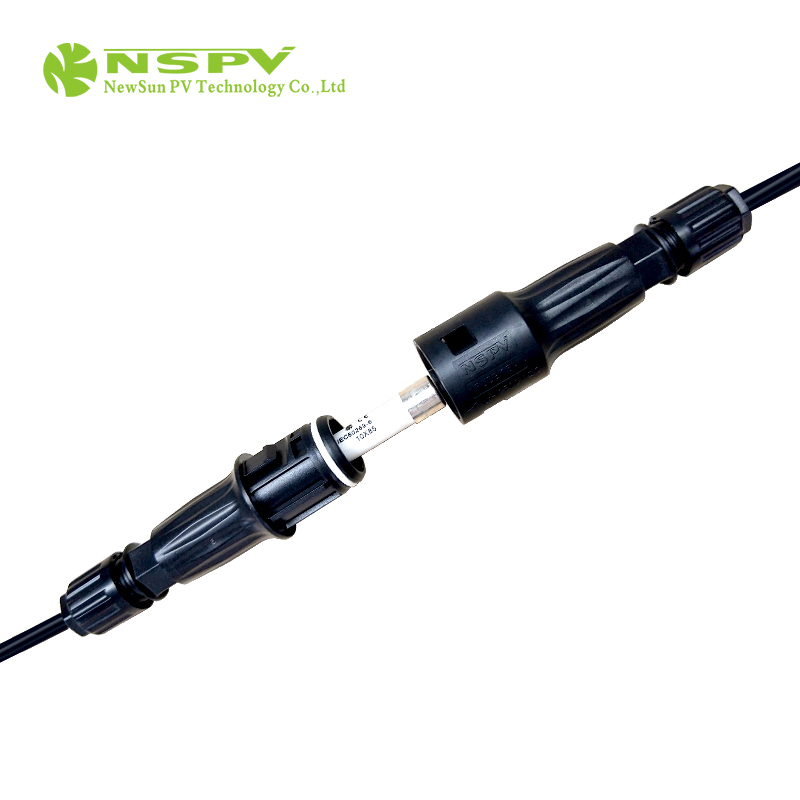

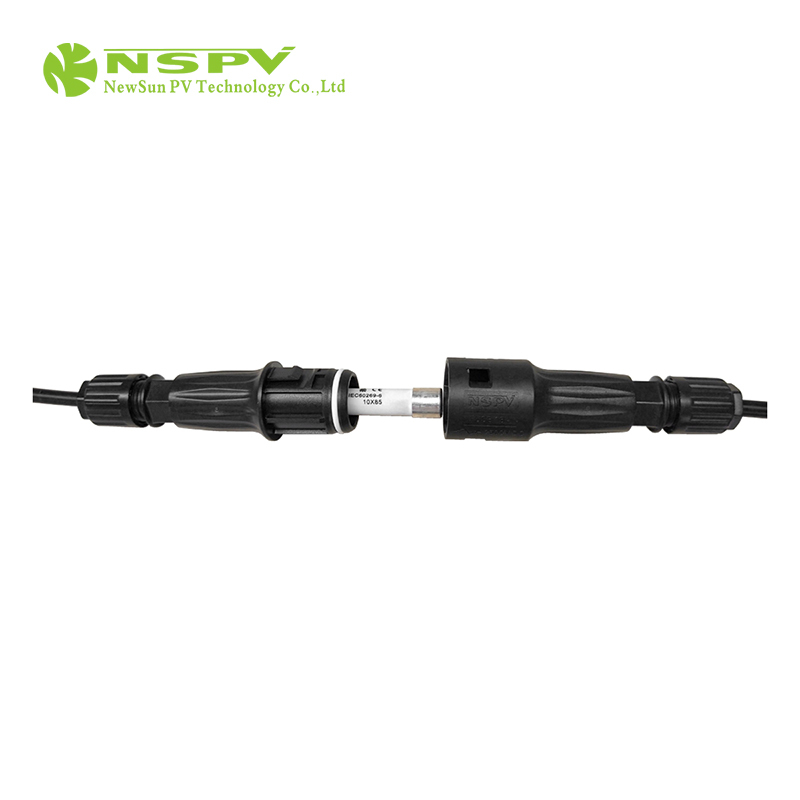

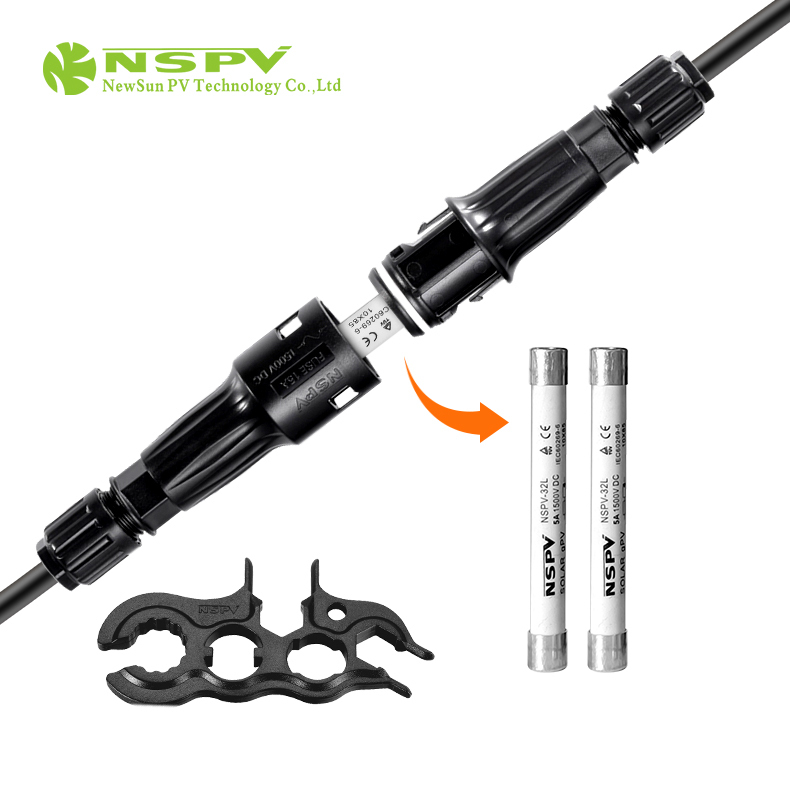

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Dual Cable Type

8.5 USD ($)/Piece
Get a Price/Quote

Product Details:

  • Features Good Quality
  • Switch Mode Manual Switch
  • Size Standard
  • Color Black
  • Warranty 1 Year
  • Application Industrial
  • Click to view more
Request To Call Back Send Inquiry
X

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Dual Cable Type Price And Quantity

  • 500 Piece
  • 8.5 USD ($)/Piece

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Dual Cable Type Product Specifications

  • Black
  • Good Quality
  • 1 Year
  • Manual Switch
  • Industrial
  • Standard

IP68 Waterproof Solar Fuse Connector 1500VDC 50A Dual Cable Type Trade Information

  • Telegraphic Transfer (T/T)
  • 100000 Piece Per Day
  • 15 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • Australia, Central America, North America, Asia, Eastern Europe, Middle East, South America, Western Europe, Africa
  • All India
  • TUV

Product Description

1500VDC PV 4.0 Fuse Connector 4 types

1500VDC solar inline fuse connector features:
1500VDC, 50A; IP68; Low contact resistance; TUV certified; Suitable for 2.5-10sqmm cable(4F1-154F3-15); Suitable for fuse 10*85 or 10/14*85mm; Easy to replace fuse.

Model:4F2-15/, Please inquirE for details and each price excludes the fuse.

Product specifications
Insulation material PPE/PA Fuse specifications 1A-50A
Rated current(without fuse) 50A Safety degree II
Rated voltage 1500VDC Flame class UL94-V0
Maximum voltage(with fuse) 1575V Ambient temperature range -40+85(IEC)
Contact resistance 0.25 m Upper limiting temperature 110(IEC)
Contact material Copper, Tin plated Suitable cable cross sections

2.510mm2 /148AWG

(4F1-154F3-15)
Degree of protection IP68(1m,1H) Suitable fuse size(mm) 10*85 or 10/14*85
Rated impulse voltage 12KV Regulatory approval TUV, CE


Superior Waterproof Performance

Built with an IP68 rating, this solar fuse connector offers outstanding protection against water and dust entry. Its rugged design ensures dependable operation even in extreme outdoor environments, safeguarding your solar power systems and extending the lifespan of electrical connections.


Efficient Dual Cable Design

The dual cable type enables secure and streamlined linking of solar panels in industrial installations. This standard-sized connector allows for easy integration and compatibility with a variety of cables, making installation efficient and minimizing connection issues.


Trusted Quality and Warranty Backing

Manufactured to stringent standards, the connector features high-grade materials and meticulous engineering. Each product is backed by a 1-year warranty, providing peace of mind and reliable support for users in the field.

FAQ's of IP68 Waterproof Solar Fuse Connector 1500VDC 50A Dual Cable Type:


Q: How does the IP68 waterproof rating benefit solar installations?

A: The IP68 waterproof rating ensures that the connector is fully protected against dust ingress and long-term immersion under water, making it ideal for outdoor and harsh industrial environments typical in solar power installations.

Q: What is the typical process for installing this solar fuse connector?

A: Installation involves connecting the dual cable type ends to the corresponding solar panel wires, securing the manual switch, and tightening the connector to achieve a secure seal. Always ensure power is off before installation to maintain safety.

Q: When should you replace or inspect your solar fuse connectors?

A: It is recommended to inspect the connectors annually or after any significant weather event. Replacement is advised if you notice wear, corrosion, or compromised waterproofing performance to maintain system safety and functionality.

Q: Where can this connector be employed within an industrial solar system?

A: This connector is suitable for use in combiner boxes, string connections, and main electrical distribution points in large-scale solar power installations. Its robust construction makes it ideal for diverse environmental conditions.

Q: What are the main usage advantages of a dual cable type connector?

A: A dual cable type allows for easier and more organized connections between multiple solar panels, enhancing system efficiency and making maintenance simpler due to reduced cable clutter.

Q: What benefits does the manual switch feature provide?

A: The manual switch enables straightforward, direct control during maintenance or emergency shutoff scenarios, offering an added layer of safety and flexibility for operators in industrial solar applications.
