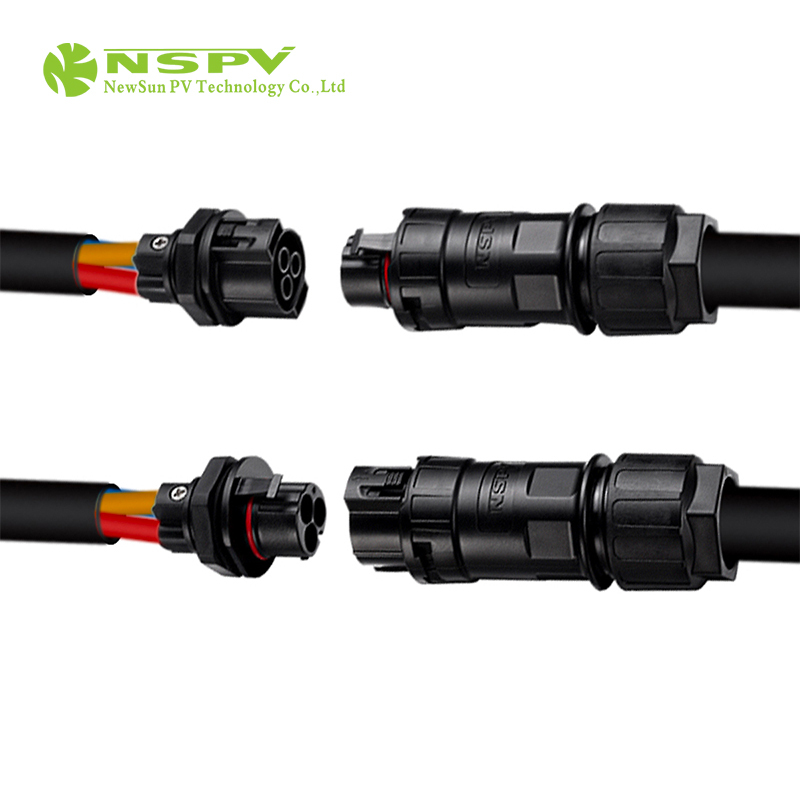

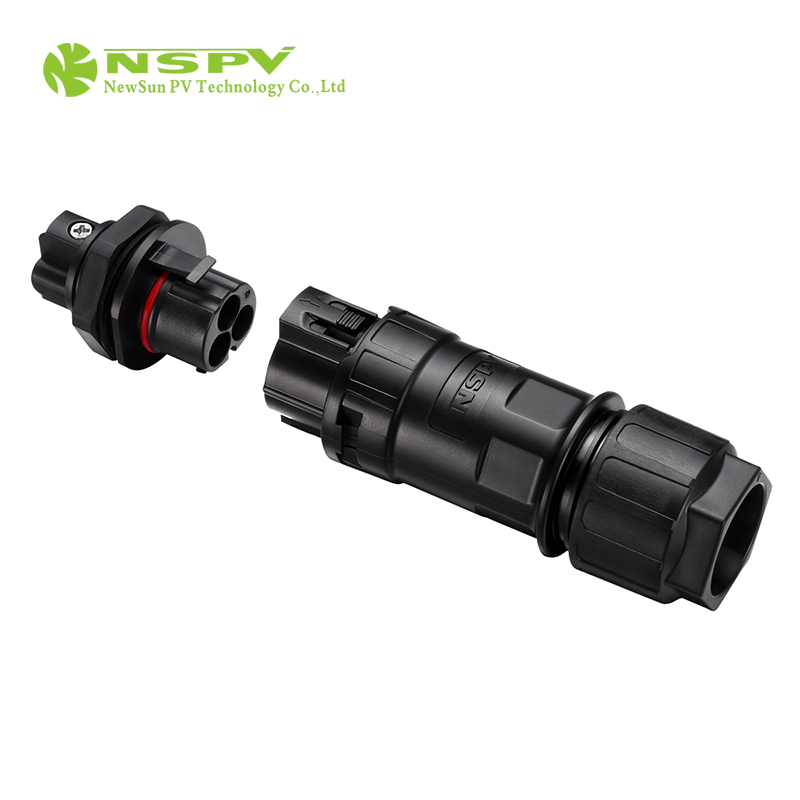

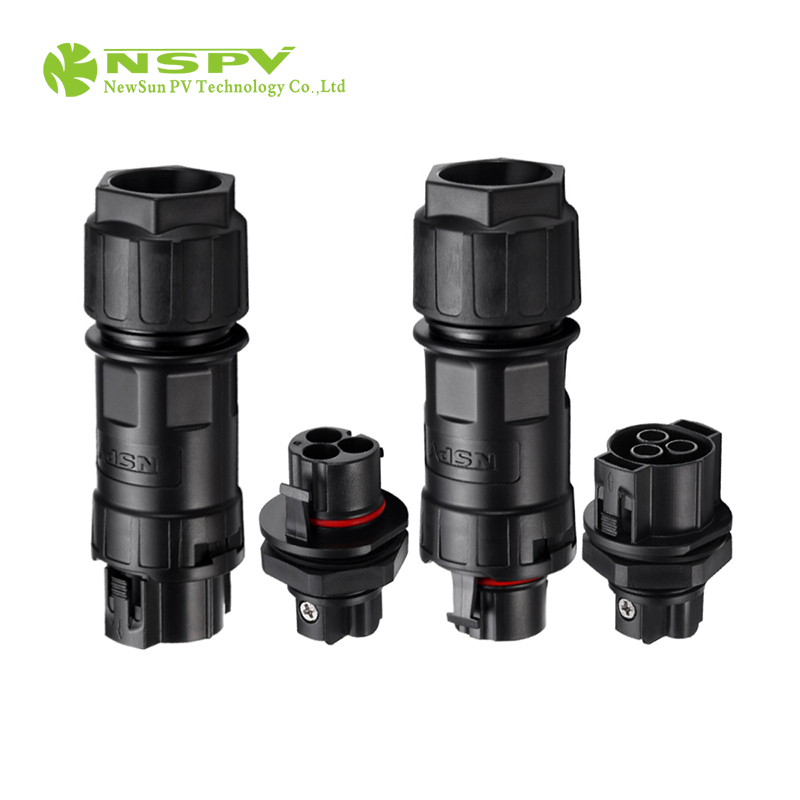

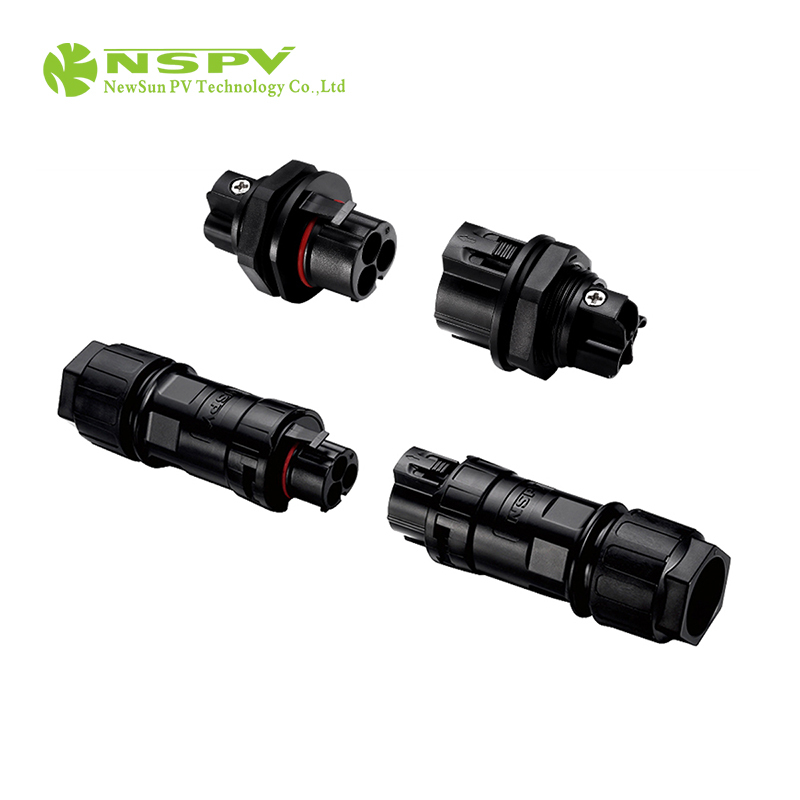

NSPV Solar AC Connector 3 Pole Panel Type Male Connector

NSPV Solar AC Connector 3 Pole Panel Type Male Connector

3.5 USD ($)/Piece

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Request To Call Back Send Inquiry

NSPV Solar AC Connector 3 Pole Panel Type Male Connector Price And Quantity

Price Range 3.50 - 5.00 USD ($)/Piece
Minimum Order Quantity 500 Piece
Price 3.5 USD ($)/Piece

NSPV Solar AC Connector 3 Pole Panel Type Male Connector Trade Information

FOB Port EXW
Payment Terms Telegraphic Transfer (T/T)
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications TUV

Product Description

Solar AC Connector 3P II

Solar ac connector II from NSPV:

Features:

1. TUV certified;

2. IP68 rating;

3. Rated current max.50A(10sqmm);

4. Low contact resistance;

5. EN 61984 standard.

Product Specifications
Insulation material	PPE/PA	Safety degree	II
Rated current	50A	Flame class	UL94-V0
Rated voltage	500V AC	Suitable cable OD Max.	ï21mm
Test voltage	4kV	Ambient temperature range	-40ï+85ï(IECï¼‰
Typical contact resistance	ï0.25 mï	Suitable cable cross sections	2.56mm2/1410AWG
Contact material	Copper,Tin plated	Connecting system	Screw/crimping connection
Degree of protection	IP68	Insulation resistance	ï1000 Mï
Contaction diameter/number of contact	4.0x3	Standard
