Solar AC Connectors 3P IP68 Waterproof With TUV Certificate Cable Female To Cable Male Type For Hybrid Inverter

6.0 USD ($)/Set
Get a Price/Quote

Product Details:

  • Efficiency Up to 98% (Contact Efficiency)
  • Input Voltage Up to 500V AC
  • Features IP68 Waterproof, 3 Pin, TUV Certified, Flame Retardant, UV Resistant
  • Maintenance Type Low Maintenance
  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Number of Cells N/A (Connector, not a module)
  • Click to view more
Request To Call Back Send Inquiry
X

Solar AC Connectors 3P IP68 Waterproof With TUV Certificate Cable Female To Cable Male Type For Hybrid Inverter Price And Quantity

  • 500 Set
  • 6.0 USD ($)/Set
  • Class II
  • 2.5mm, 4mm, 6mm
  • 1.0 Nm (Maximum)
  • Yes
  • Copper, Tin Plated
  • Female to Male Cable Connector
  • UL94-V0
  • IP68 (Dustproof and Waterproof)
  • Outdoor/Indoor
  • <1m
  • 30A (Max)
  • IEC 62852 and EN50521
  • >500 M (500V DC)

Solar AC Connectors 3P IP68 Waterproof With TUV Certificate Cable Female To Cable Male Type For Hybrid Inverter Product Specifications

  • 500V AC
  • Approx. 150g (per set)
  • PPE/PA(Insulation material)
  • Up to 30A AC (Depending on cable used)
  • 500 Volt (V)
  • Low Maintenance
  • Cable Female to Cable Male Type
  • Waterproof AC Connector
  • Black
  • Hybrid Inverter, Solar Power System
  • 28mm x 24mm x 142mm (approx.)
  • 1000V AC
  • Up to 98% (Contact Efficiency)
  • -40-+85 Celsius (oC)
  • Standard (Fits 2.5mm-6mm cables)
  • Up to 500V AC
  • N/A (Connector, not a module)
  • Other
  • IP68 Waterproof, 3 Pin, TUV Certified, Flame Retardant, UV Resistant
  • Customizable, typically 1m
  • Panel Mount/Inline Cable
  • Class II
  • 2.5mm, 4mm, 6mm
  • 1.0 Nm (Maximum)
  • Yes
  • Copper, Tin Plated
  • Female to Male Cable Connector
  • UL94-V0
  • IP68 (Dustproof and Waterproof)
  • Outdoor/Indoor
  • <1m
  • 30A (Max)
  • IEC 62852 and EN50521
  • >500 M (500V DC)

Solar AC Connectors 3P IP68 Waterproof With TUV Certificate Cable Female To Cable Male Type For Hybrid Inverter Trade Information

  • EXW
  • 10000 Set Per Day
  • 12 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • TUV

Product Description

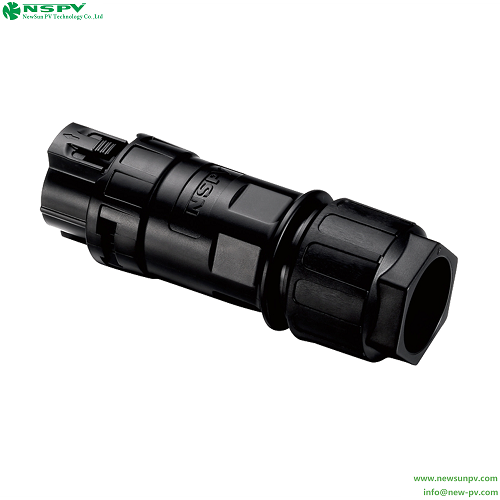

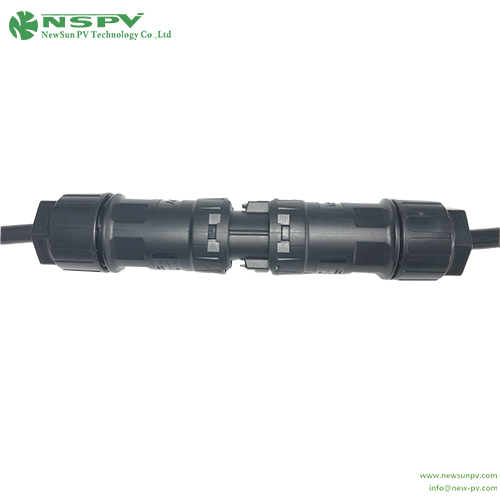

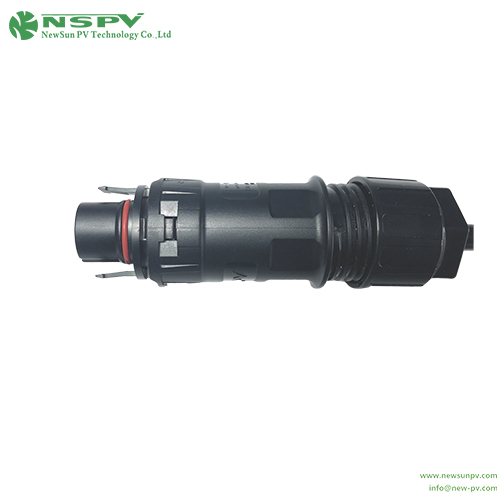

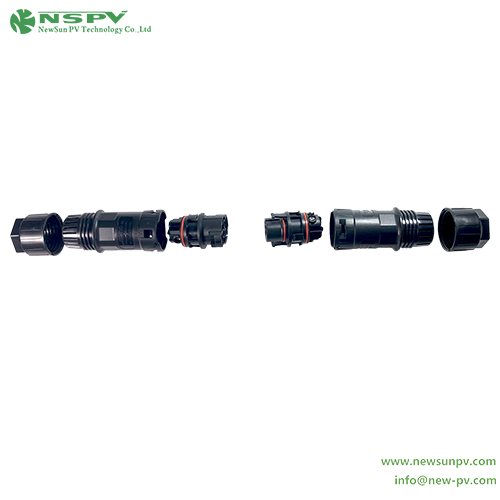

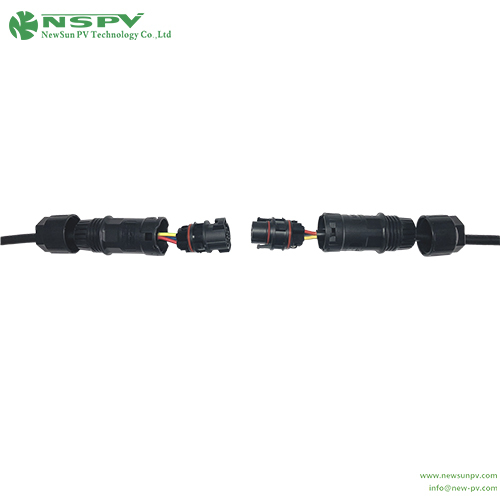

AC3P Connector II
  • Insulation material:PPE/PA;Safety degree:II;
  • Rated current:Max.65A(10sqmm);Flame class:UL94-V0;
  • Rated voltage:500V AC;Suitable cable OD Max.:21mm;
  • Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
  • Typical contact resistance:less than 0.25 mohm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
  • Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
  • Degree of protection:IP68;Insulation resistance:more than 1000 Mohm;
  • Contraction diameter/number of contact:4.0x3;Standard:EN 61984.


Superior Waterproof Design for Reliable Outdoor Use

Best suited for both indoor and outdoor applications, these connectors offer IP68-level waterproofing and dustproofing. The robust insulation and high-quality materials ensure stable operation in harsh weather conditions, making them ideal for solar power systems exposed to sun, rain, and dust.


Certified Safety Meets High Performance

Boasting TUV certification and manufactured to IEC 62852 and EN50521 standards, these connectors assure top-tier safety with a Class II rating and flame-retardant housing (UL94-V0). Copper, tin-plated contacts ensure highly efficient and reliable power transmission up to 30A at 500V AC.

FAQs of Solar AC Connectors 3P IP68 Waterproof With TUV Certificate Cable Female To Cable Male Type For Hybrid Inverter:


Q: How do I install the 3P IP68 waterproof Solar AC connectors for my hybrid inverter?

A: Installation is straightforward: simply match the female cable end to the male cable end, ensuring secure fitment. They support both panel mount and inline cable installations, fitting cable sizes from 2.5mm to 6mm. For optimal performance and safety, a maximum torque of 1.0 Nm is recommended during installation.

Q: What advantages do these connectors provide for solar power systems?

A: These connectors offer high current and voltage handling (up to 30A and 500V AC), exceptional waterproofing (IP68), UV resistance, and flame retardancy. This combination ensures increased safety, longevity, and reduced maintenance in demanding outdoor and indoor environments.

Q: When should I use an IP68-rated AC connector in my solar setup?

A: An IP68-rated connector is essential when your installation is exposed to water, dust, or variable weather, ensuring continuous safe operation and preventing electrical faults. They are particularly recommended for outdoor hybrid inverter and solar system connections.

Q: Where can these connectors be used aside from solar power systems?

A: While specially designed for solar power and hybrid inverters, these connectors are suitable for any AC installation requiring high durability, waterproofing, and safe connectionssuch as distributed energy systems, power supply units, or industrial automation outdoors.

Q: What is the maintenance process for these connectors?

A: The connectors are designed to be low-maintenance due to their robust construction and reliable sealing. Routine visual inspections for dirt or mechanical damage are recommended, but the IP68 protection minimizes the need for frequent cleaning or servicing.

Q: How does the cable female to cable male type benefit system wiring?

A: This configuration allows for straightforward, secure, and modular connections between system components, making it easier to install, expand, or perform maintenance on your solar or hybrid inverter system.

Q: What certifications and safety features do these connectors include?

A: They are TUV certified, comply with IEC 62852 and EN50521 standards, have a flame retardant UL94-V0 rating, and meet Safety Class II requirements, ensuring reliable insulation and protection against electrical hazards.
