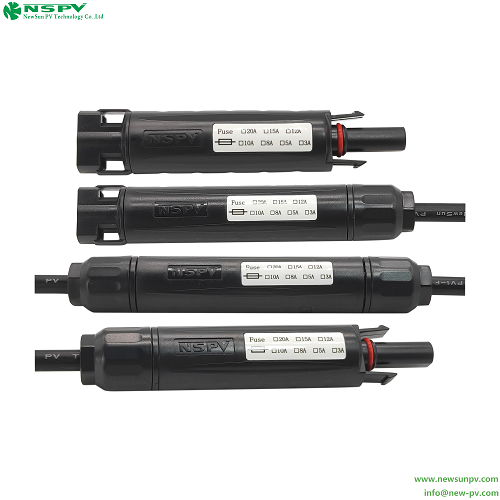

PortugueseSolar Fuse Connector 1000VDC 30A matching mc4 in-line fuse for solar system
Product Details:
- Material PPE/PA(Insulation material)
- Operating Temperature -40-+85 Celsius (oC)
- Output Voltage 1000 Volt (V)
- Color Black
- Supply Ability : 10000 Piece Per Month
4 USD ($)/Piece
X
Price And Quantity
- 4 USD ($)/Piece
- 500 Piece
Product Specifications
- 1000 Volt (V)
- Black
- PPE/PA(Insulation material)
- -40-+85 Celsius (oC)
Trade Information
- EXW
- Telegraphic Transfer (T/T), Paypal
- 10000 Piece Per Month
- 12 Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Standard packing or according to customer's request.
- All India
Product Description
Our offered Solar Fuse Connector is available as single contact connector that iswidely used for connecting different kinds of solar panels together.
This is availableto our clients in different specifications to accomplish the needs of our clients.
Designing of this range is completed at our well advanced production unit whileselecting the best grade of materials together with most advancedmachinery as per quality norms.
Solar Fuse Connector undergoes several quality checked with the aim to deliver a quality range at the client's end.
Benefits
- Dimensional accuracy
- Less maintenance
- Light weight
| PV 4.0 Fuse Connector | |||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Overvoltage category/Pollution degree | CATIII/2 | ||||||
| Rated current(Without fuse) | 30A | Safety degree | II | ||||||
| Rated current(With fuse) | 1A,2A,3.5A,4A,5A,8A,10A, 12A,15A,20A,25A,30A | Flame class | UL94-V0 | ||||||
| Rated voltage | 1000VDC | Insertion force/Withdrawal force | less than or equal to 50N / great than or equal to 50N | ||||||
| Test voltage | 6kV(50Hz,Imin) | Ambient temperature range | -40-+85(IEC) | ||||||
| Typical contact resistance | less than or equal to 0.25 mohm | Upper limiting temperature | 110(IEC) | ||||||
| Contact material | Copper,Tin plated | Connecting system | Crimp connection | ||||||
| Degree of protection | IP67 | Nut cap locking force | 1.5-1.8Nm | ||||||
