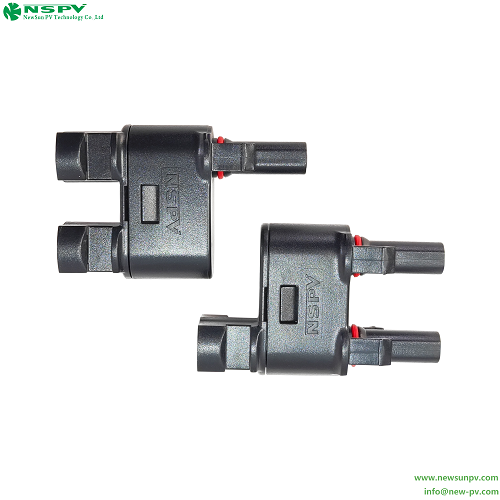

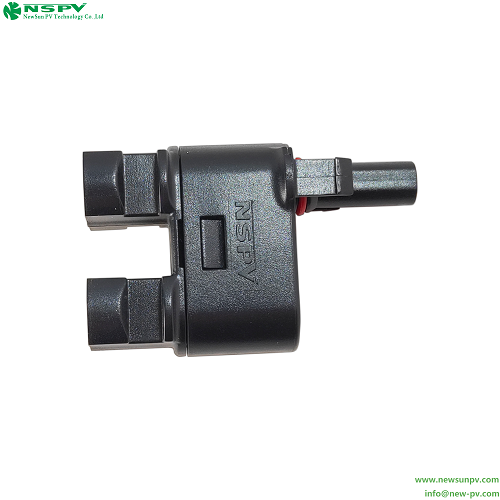

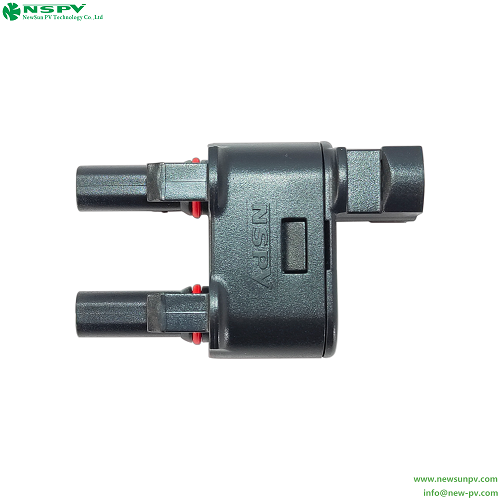

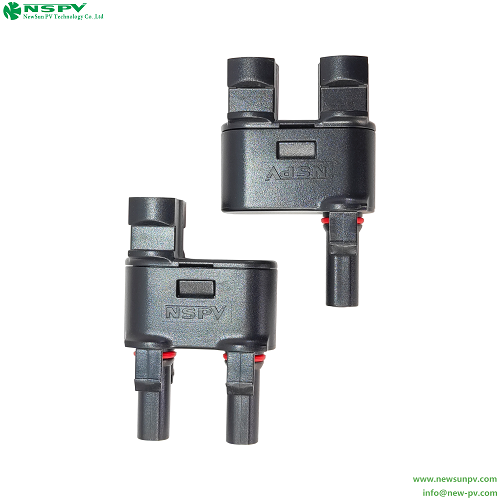

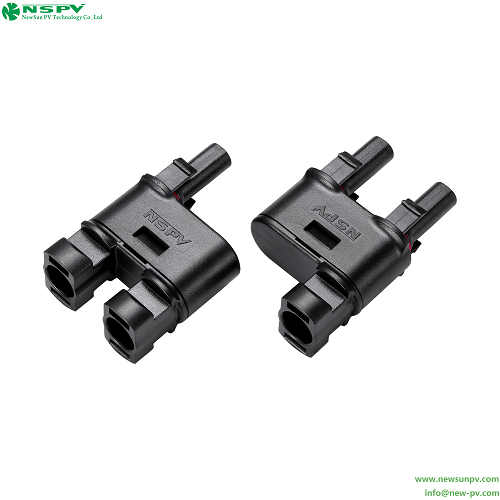

TUV Certified 2 To 1 Solar Branch Connectors 1500VDC 60A PV Branch Connectors Solar Splitters For Solar System Connection

TUV Certified 2 To 1 Solar Branch Connectors 1500VDC 60A PV Branch Connectors Solar Splitters For Solar System Connection

Product Details:

  • Product Type Other
  • Material PPE(Insulation material)
  • Operating Temperature -40-+85 Celsius (oC)
  • Output Voltage 1500 Volt (V)
  • Color Black
2.85 USD ($)/Pair
X

TUV Certified 2 To 1 Solar Branch Connectors 1500VDC 60A PV Branch Connectors Solar Splitters For Solar System Connection Price And Quantity

  • 2.85 USD ($)/Pair
  • 100 Pair

TUV Certified 2 To 1 Solar Branch Connectors 1500VDC 60A PV Branch Connectors Solar Splitters For Solar System Connection Product Specifications

  • Black
  • -40-+85 Celsius (oC)
  • 1500 Volt (V)
  • Other
  • PPE(Insulation material)

TUV Certified 2 To 1 Solar Branch Connectors 1500VDC 60A PV Branch Connectors Solar Splitters For Solar System Connection Trade Information

  • EXW
  • 10000 Pair Per Month
  • Days
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard packing or according to customer's request.
  • All India
  • TUV

Product Description

1500VDC PV4.0 Branch Connector 2 In 1
  • Insulation material:PPE;Safety degree:II;
  • Rated current:60A;Flame class:UL94-V0;
  • Rated voltage:1500VDC;Ambient temperature range:-40-+85(IEC);
  • Test voltage:8kV(50Hz,Imin);Suitable cable cross sections:2.5-10mm2/14-8AWG;
  • Contact resistance:less than 0.25mOhm;Contact material:Copper,Tin plated;
  • Upper limiting temperature:110(IEC);Degree of protection:IP68(1m,1H);
  • Rated Impulse voltage:16kV;Over voltage category/Pollution degree:CATIII/2.
