Waterproof Solar AC Connectors 3P AC Wire Connectors For Solar Inverter 500V AC Wire Coupler

6.0 USD ($)/Set
Get a Price/Quote

Product Details:

  • Efficiency High-conductivity contacts ensure low power loss
  • Features UV resistant, waterproof (IP67), robust locking system, flame retardant
  • Input Voltage Up to 500V AC
  • Maintenance Type Maintenance-free design
  • Product Type Other
  • Material PPE/PA(Insulation material)
  • Power Compatible with high-power AC systems
  • Click to view more
Request To Call Back Send Inquiry
X

Waterproof Solar AC Connectors 3P AC Wire Connectors For Solar Inverter 500V AC Wire Coupler Price And Quantity

  • 500 Set
  • 6.0 USD ($)/Set
  • Screw Terminal
  • 25A
  • 0.5m
  • UL94-V0
  • >1000M (DC 500V)
  • IP67
  • 2.5mm 6mm (14-10AWG)
  • Copper Alloy, Tin Plated
  • 3 (Three-Pole)

Waterproof Solar AC Connectors 3P AC Wire Connectors For Solar Inverter 500V AC Wire Coupler Product Specifications

  • AC Coupler Connection
  • Compatible with high-power AC systems
  • Standard 3-pin solar connector size
  • 500V AC
  • Approx. 95mm x 28mm x 28mm
  • Black
  • Plug-and-play, tool-free installation
  • PPE/PA(Insulation material)
  • Customizable, typically 0.5m to 2m
  • Up to 500V AC
  • Approx. 60g
  • 500 Volt (V)
  • Waterproof AC Coupling Technology
  • Other
  • 500V AC
  • Solar inverter AC wiring, PV plant AC coupling
  • High-conductivity contacts ensure low power loss
  • UV resistant, waterproof (IP67), robust locking system, flame retardant
  • Maintenance-free design
  • -40-+85 Celsius (oC)
  • Screw Terminal
  • 25A
  • 0.5m
  • UL94-V0
  • >1000M (DC 500V)
  • IP67
  • 2.5mm 6mm (14-10AWG)
  • Copper Alloy, Tin Plated
  • 3 (Three-Pole)

Waterproof Solar AC Connectors 3P AC Wire Connectors For Solar Inverter 500V AC Wire Coupler Trade Information

  • EXW
  • 10000 Set Per Day
  • 12 Days
  • No
  • Contact us for information regarding our sample policy
  • Standard packing
  • All India
  • TUV

Product Description

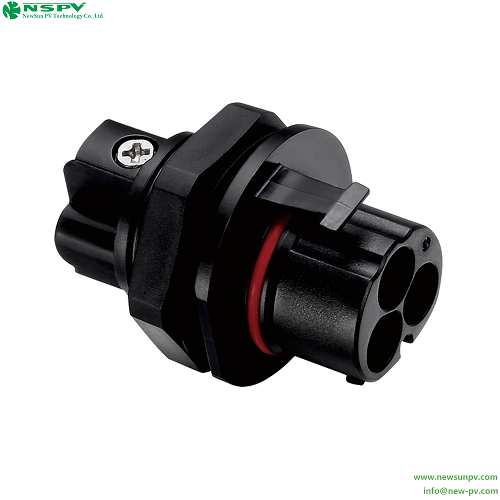

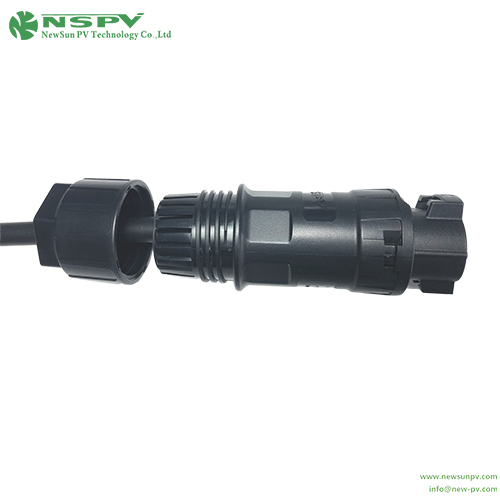

AC3P Connector II
  • Insulation material:PPE/PA;Safety degree:II;
  • Rated current:Max.65A(10sqmm);Flame class:UL94-V0;
  • Rated voltage:500V AC;Suitable cable OD Max.:21mm;
  • Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
  • Typical contact resistance:less than 0.25 mohm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
  • Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
  • Degree of protection:IP68;Insulation resistance:more than 1000 Mohm;
  • Contraction diameter/number of contact:4.0x3;Standard:EN 61984.


Superior Waterproof and Safety Ratings

Engineered with a robust IP67 waterproof rating and UL94-V0 flame-retardant materials, these 3P AC connectors provide maximum safety in challenging outdoor environments. Their weather-resistant housing shields against UV, dust, and moisture, making them ideal for solar inverter AC wiring in PV plants, ensuring reliable performance all year round.


Effortless Installation and Maintenance-Free Design

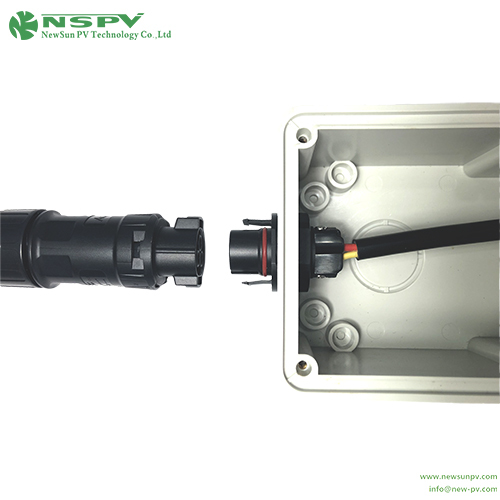

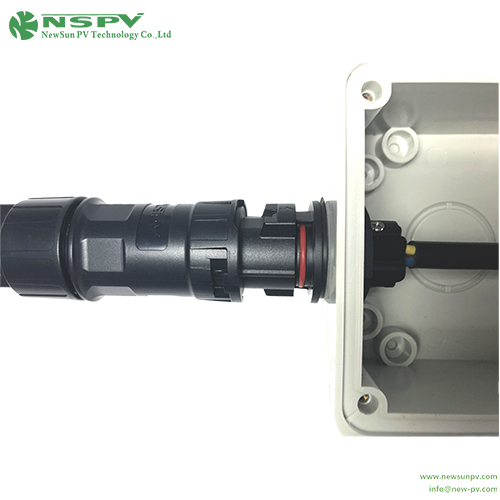

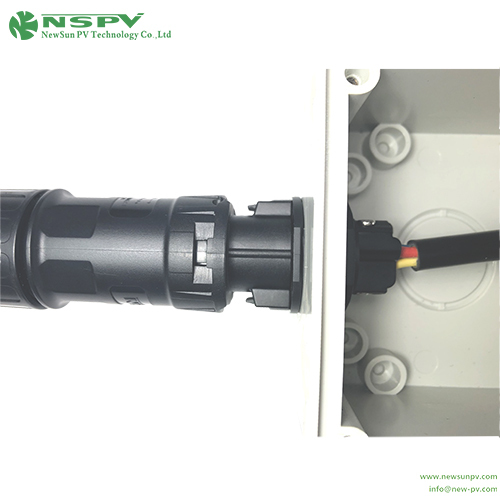

The connectors feature a user-friendly, plug-and-play interface with screw terminals, eliminating the need for special tools. Designed for maintenance-free operation, these couplers reduce downtime and streamline installation, enhancing overall system durability and efficiency while offering compatibility with high-power AC systems up to 500V.

FAQs of Waterproof Solar AC Connectors 3P AC Wire Connectors For Solar Inverter 500V AC Wire Coupler:


Q: How do I install the Waterproof Solar AC Connectors 3P?

A: Installation is tool-free and straightforward. Simply plug in the connectors and secure the wires using the screw terminal system. Ensure the wire size is between 2.5mm and 6mm (14-10AWG), then tighten the screws for a secure, low-resistance connection.

Q: What applications are these 3P AC wire connectors suitable for?

A: These connectors are perfect for AC wiring in solar inverters, photovoltaic (PV) plant AC coupling, and other high-power solar or industrial applications requiring durable, weatherproof connections up to 500V AC.

Q: When should I use these connectors instead of standard AC couplers?

A: Use these connectors when you require high waterproof protection (IP67), UV resistance, flame retardancy, and secure locking for outdoor or harsh environments, especially where reliability, safety, and low maintenance are crucial.

Q: Where can these connectors be installed?

A: They are suitable for both indoor and outdoor installations, particularly in solar PV plants, inverter AC panels, and other environments exposed to moisture, dust, UV, or temperature extremes from -40C to +85C.

Q: What is the process for customizing cable lengths?

A: Cable lengths can be specified during ordering, typically ranging from 0.5m to 2m. Coordinate with the supplier or manufacturer to request your preferred cable length according to system requirements.

Q: How does the maintenance-free design benefit my installation?

A: The maintenance-free design ensures long-term durability, minimizes downtime, and eliminates the need for periodic inspections or servicing, providing a reliable solution for uninterrupted operation in solar applications.
