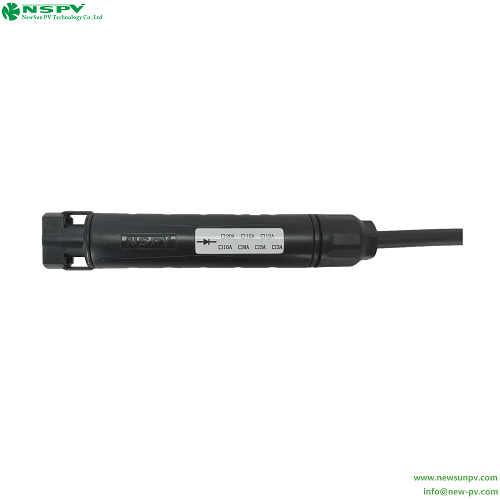

4D1 Solar Blocking Diode Male Cable Type 1000VDC 10A IP67 Waterproof PV Diode Connectors

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1000 Volt (V)
Color Black
Share Your Product:

3.12 USD ($)/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

4D1 Solar Blocking Diode Male Cable Type 1000VDC 10A IP67 Waterproof PV Diode Connectors Price And Quantity

Price 3.12 USD ($)/Piece
Minimum Order Quantity 100 Piece

4D1 Solar Blocking Diode Male Cable Type 1000VDC 10A IP67 Waterproof PV Diode Connectors Product Specifications

Color Black
Material PPE/PA(Insulation material)
Output Voltage 1000 Volt (V)
Product Type Other
Operating Temperature -40-+85 Celsius (oC)

4D1 Solar Blocking Diode Male Cable Type 1000VDC 10A IP67 Waterproof PV Diode Connectors Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Week
Delivery Time Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India

Product Description

PV 4.0 Diode Connector 4D1-4D3

Insulation material:PPE/PA;Over voltage category/Pollution degree:CATIII/2;
Rated current(Without diode):30A;Safety degree:II;
Rated current(With Diode):10A(Diode Rated Current 15A);Flame class:UL94-V0;
Rated voltage:1000VDC;Insertion force/Withdrawal force:less than 50N / more than 50N;
Test voltage:6kV(50Hz,Imin);Ambient temperature range:-40-+85(IEC);
Typical contact resistance:less than 0.25 mohm;Upper limiting temperature:110(IEC);
Contact material:Copper,Tin plated;Connecting system:Crimp connection;
Degree of protection:IP67;Nut cap locking force:1.5-1.8Nm.
