3 Pin Solar AC Wire Coupler 500V Max.50A IP68 Waterproof AC Connectors Cable Female Type

3 Pin Solar AC Wire Coupler 500V Max.50A IP68 Waterproof AC Connectors Cable Female Type

5.86 USD ($)/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40-+85 Celsius (oC)
Output Voltage 500 Volt (V)
Color Black
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3 Pin Solar AC Wire Coupler 500V Max.50A IP68 Waterproof AC Connectors Cable Female Type Price And Quantity

Price Range 2.65 - 3.68 USD ($)/Piece
Price 5.86 USD ($)/Piece
Minimum Order Quantity 500 Piece

3 Pin Solar AC Wire Coupler 500V Max.50A IP68 Waterproof AC Connectors Cable Female Type Product Specifications

Color Black
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 500 Volt (V)

3 Pin Solar AC Wire Coupler 500V Max.50A IP68 Waterproof AC Connectors Cable Female Type Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Day
Delivery Time 12 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India
Certifications TUV

Product Description

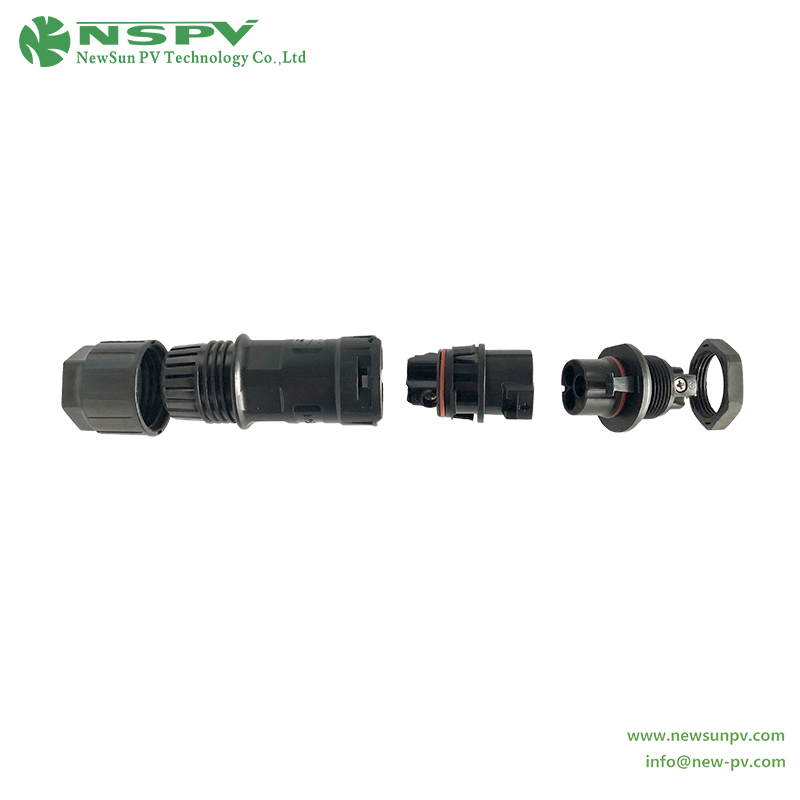

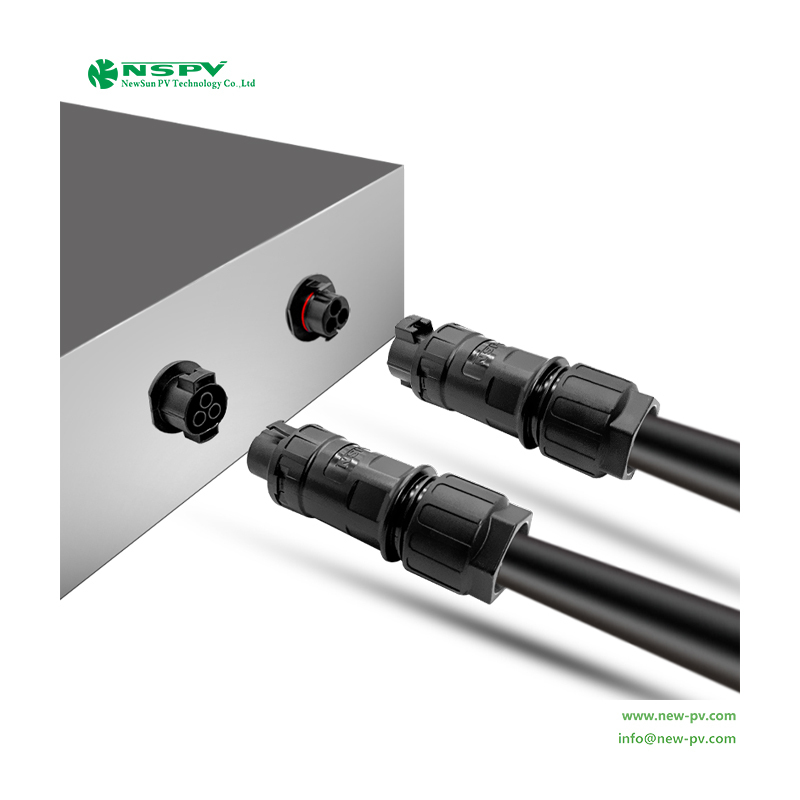

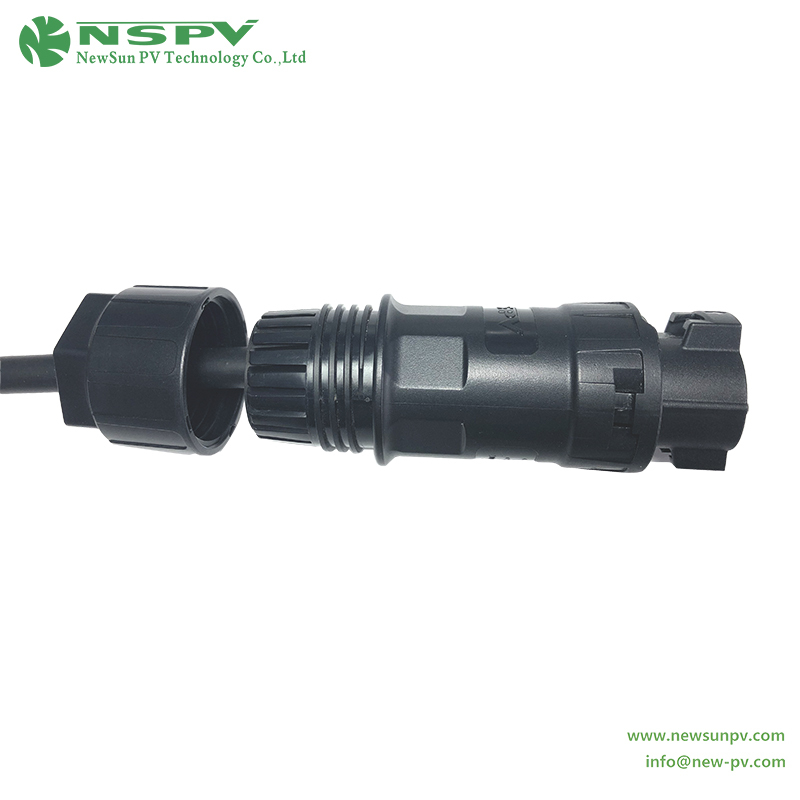

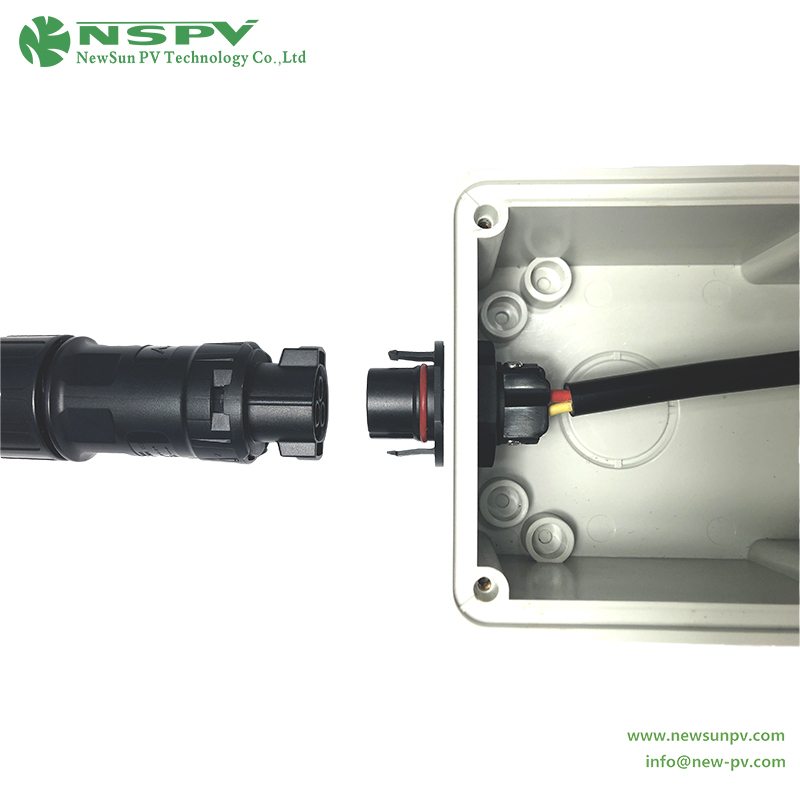

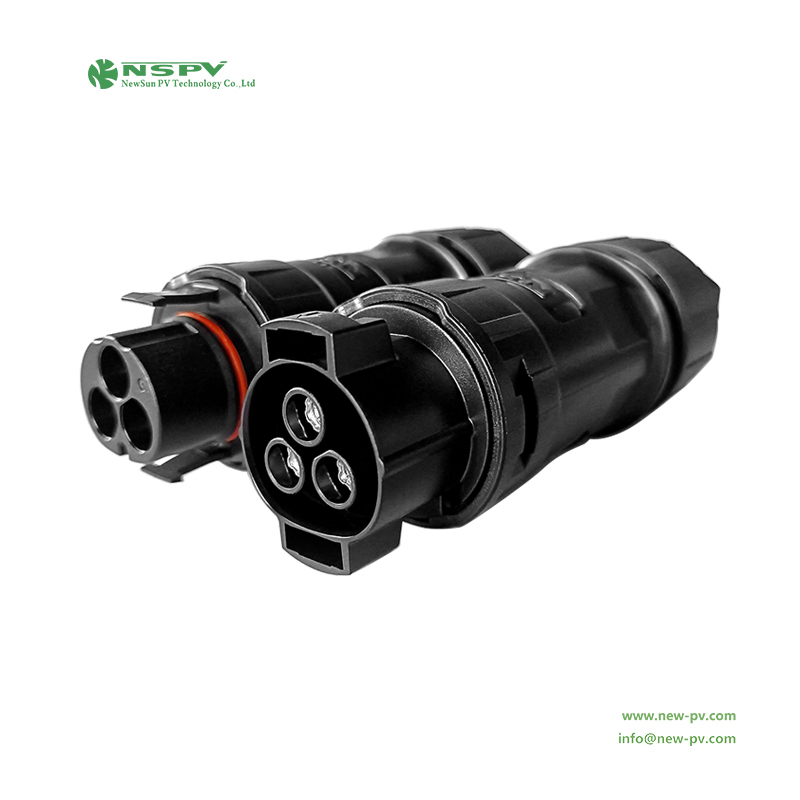

AC3P Connector II

Insulation material:PPE/PA;Safety degree:II;
Rated current:Max.65A(10sqmm);Flame class:UL94-V0;
Rated voltage:500V AC;Suitable cable OD Max.:21mm;
Test voltage:4kV;Ambient temperature range:-40-+85(IEC);
Typical contact resistance:less than 0.25 mohm;Suitable cable cross sections:2.5-6mm2/14-10AWG;
Contact material:Copper,Tin plated;Connecting system:Screw/crimping connection;
Degree of protection:IP68;Insulation resistance:more than 1000 Mohm;
Contraction diameter/number of contact:4.0x3;Standard:EN 61984.

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Solar Connector' category

1500VDC 65A Solar Cable Connectors IP68 Waterproof 10mm Male And Female PV Cable Connectors Price : 0.85 USD ($)/Pair Minimum Order Quantity : 500 Output Voltage : 1500 Volt (V) Material : PPE/PA(Insulation material) Color : Black Operating Temperature : 40+85 Celsius (oC)

Send Inquiry

IP67 Waterproof Solar Splitter 4 to 1 Solar T Branch Connectors 1000VDC 30A Price : 6.23 USD ($)/Pair Minimum Order Quantity : 100 Output Voltage : 1000 Volt (V) Material : PPE(Insulation material) Color : Black Operating Temperature : 40+85 Celsius (oC)

Send Inquiry

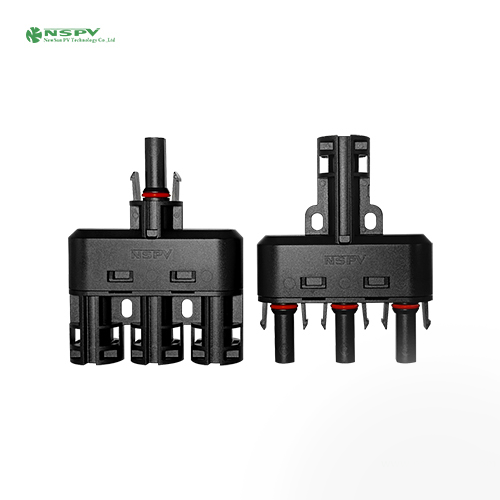

Waterproof TUV Solar 2 To 1Branch Connectors 1500VDC 60A PV Branch Connectors For Solar System Price : 2.85 USD ($)/Pair Minimum Order Quantity : 1000 Output Voltage : 1500 Volt (V) Material : PPE(Insulation material) Color : Black Operating Temperature : 40+85 Celsius (oC)
