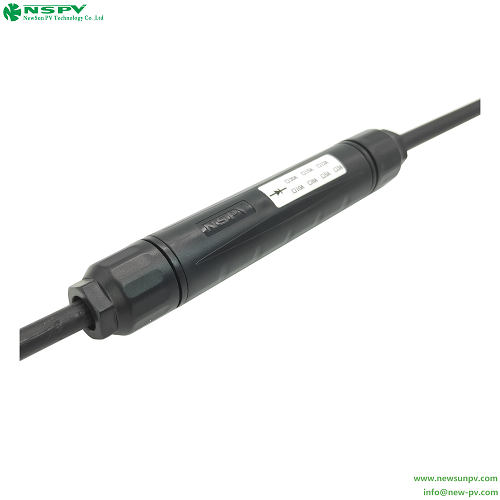

IP67 Waterproof Solar Diode Connectors 4D2 1000VDC 10A PV Diode Connector

IP67 Waterproof Solar Diode Connectors 4D2 1000VDC 10A PV Diode Connector

3.12 USD ($)/Piece

Get a Price/Quote

Product Details:

Product Type Other
Material PPE/PA(Insulation material)
Operating Temperature -40-+85 Celsius (oC)
Output Voltage 1000 Volt (V)
Color Black
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

IP67 Waterproof Solar Diode Connectors 4D2 1000VDC 10A PV Diode Connector Price And Quantity

Price 3.12 USD ($)/Piece
Minimum Order Quantity 100 Piece

IP67 Waterproof Solar Diode Connectors 4D2 1000VDC 10A PV Diode Connector Product Specifications

Product Type Other
Operating Temperature -40-+85 Celsius (oC)
Material PPE/PA(Insulation material)
Color Black
Output Voltage 1000 Volt (V)

IP67 Waterproof Solar Diode Connectors 4D2 1000VDC 10A PV Diode Connector Trade Information

FOB Port EXW
Supply Ability 10000 Piece Per Day
Delivery Time 12 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard packing
Main Domestic Market All India

Product Description

PV 4.0 Diode Connector 4D1-4D3

Insulation material:PPE/PA;Over voltage category/Pollution degree:CATIII/2;
Rated current(Without diode):30A;Safety degree:II;
Rated current(With Diode):10A(Diode Rated Current 15A);Flame class:UL94-V0;
Rated voltage:1000VDC;Insertion force/Withdrawal force:less than 50N / more than 50N;
Test voltage:6kV(50Hz,Imin);Ambient temperature range:-40-+85(IEC);
Typical contact resistance:less than 0.25 mohm;Upper limiting temperature:110(IEC);
Contact material:Copper,Tin plated;Connecting system:Crimp connection;
Degree of protection:IP67;Nut cap locking force:1.5-1.8Nm.
